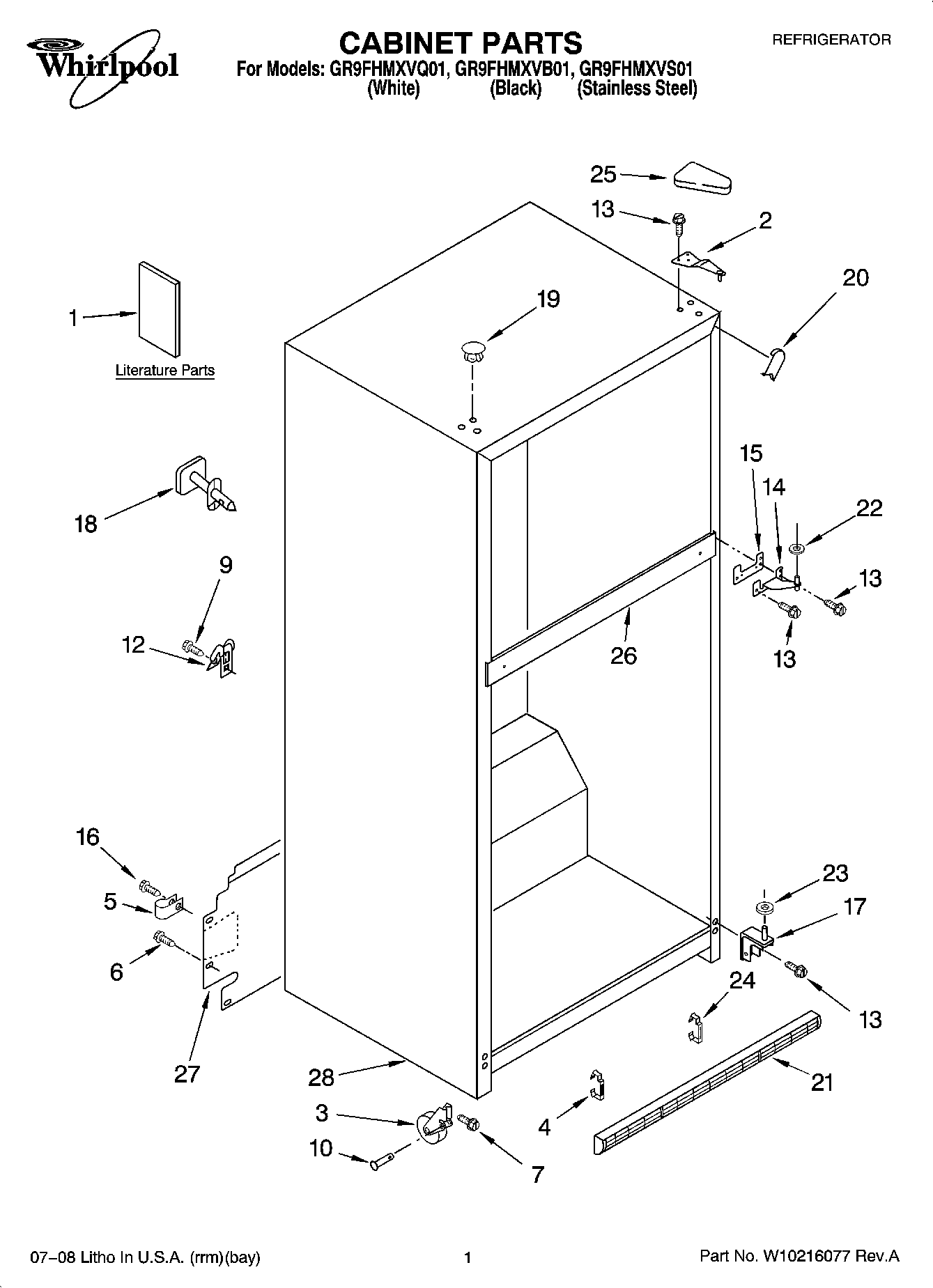

GR9FHMXVB01 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Use & Care Guide (Bilingual)
1	Use & Care Guide (Trilingual)
1	Energy Label
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Modular Icemaker Service Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	CLIP, GRILLE
5	WP488366 Whirlpool Refrigerator Clamp
6	WP489427 Whirlpool Refrigerator Screw
7	WP3400504 Whirlpool Refrigerator Screw
9	WP489442 Whirlpool Refrigerator Screw
10	W11594405 Whirlpool Axle
12	549193 Whirlpool Refrigerator Power Clamp
13	WP489497 Whirlpool Screw
14	WP2254618 Whirlpool Center Door Hinge
15	WP2183852 Whirlpool Refrigerator Shim
16	WP489464 Whirlpool Refrigerator Screw
17	WP2254473 Whirlpool Refrigerator Door Hinge
18	Fitting, Water Tube (Not Serviced)
19	WP2183998 Whirlpool Refrigerator Button Plug
19	WP2151652 Whirlpool Refrigerator Button Plug
20	W11252732 Whirlpool Refrigerator Filler
20	WPW10283959 Whirlpool Refrigerator Filler
21	WP2254386 Whirlpool Refrigerator Grille
21	Grille (Includes Illus. 4 & 24) (Black)
22	WP489467 Whirlpool Hinge Shim
23	WP487576 Whirlpool Washer
24	2254385 Whirlpool Refrigerator Clip
25	WP2213363 Whirlpool Refrigerator Cover
25	WP2213360 Whirlpool Refrigerator Cover
26	Rail, Center (Not Serviced)
27	Cover, Unit
28	Cabinet, (Not A Serviceable Part)
