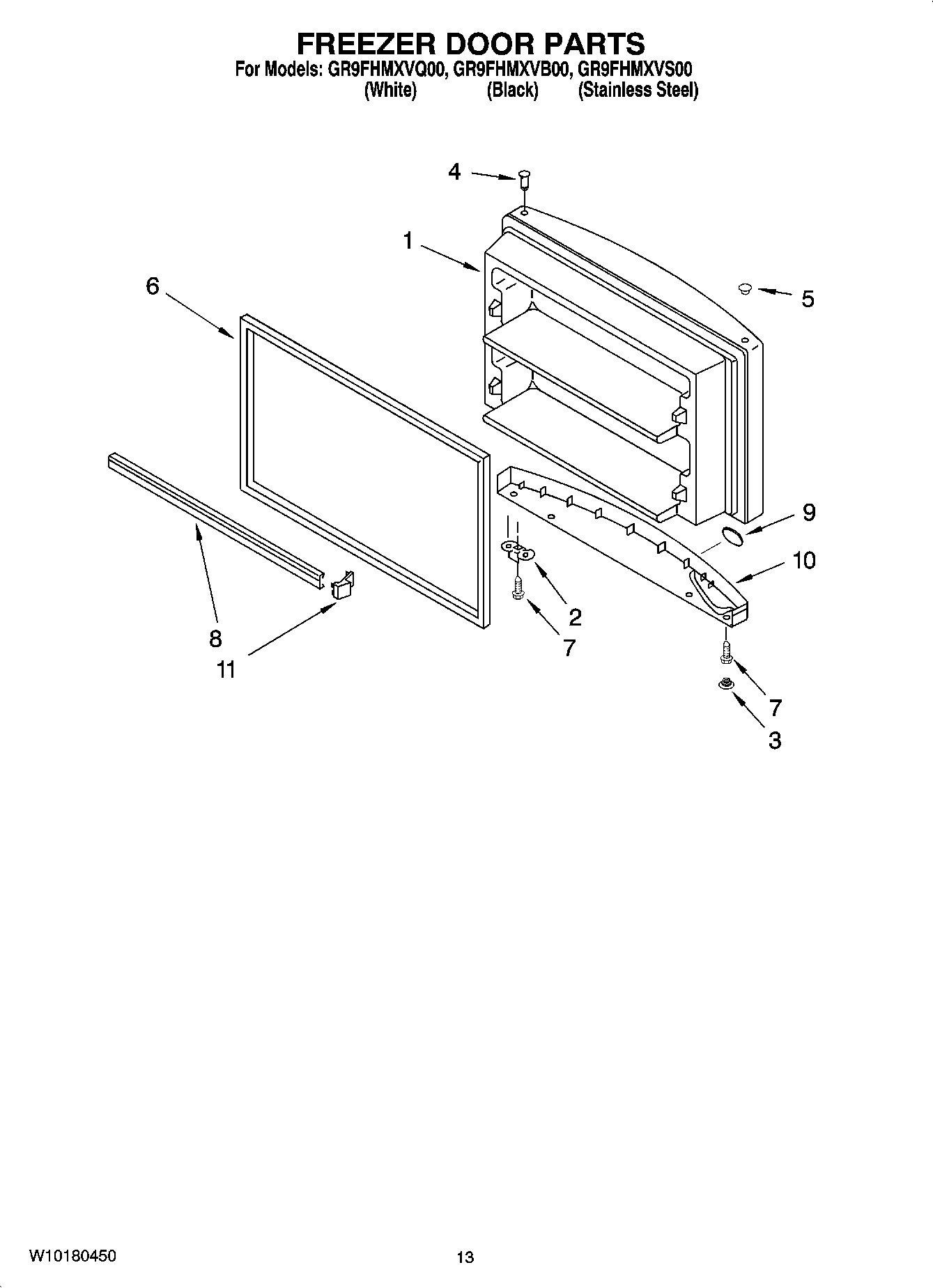

GR9FHMXVS00 07 – FREEZER DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799832
	WPL 799833
	WPL 876029
	WPL ARI68783A6
	WPL ARI68782A4
	WPL ARI68786A4
	WPL ARI68785A3
	285006 Whirlpool Spray
	Torx Key
	WP542638 Whirlpool Refrigerator Grease
	WP505587 Whirlpool Refrigerator Sealer
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL ARI68784A2
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	606755 Whirlpool Refrigerator Bag
	833938 Whirlpool Refrigerator Terminal
	876370 Whirlpool Refrigerator Insulation
	WP503695 Whirlpool Refrigerator Sealer
	72032 Whirlpool Touch Up Paint Black
1	Freezer Door (Includes Illus. 6 & 7) (Black)
1	Freezer Door (Includes Illus. 6 & 7) (White)
1	Freezer Door (Includes Illus. 4 & 6) (Stainless Steel)
2	W11745278 Whirlpool Bracket
3	HOLE PLUG, ENDCAP (WHITE)
3	HOLE PLUG, ENDCAP (BLACK)
4	WP2183003 Whirlpool Thimble
5	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5	WP2212651 Whirlpool Refrigerator Button Plug
6	2159327 Whirlpool Refrigerator Door Gasket
6	2177304 Whirlpool Refrigerator FIP Gasket
7	WP681249 Whirlpool Screw Assembly
8	Trim-Door (2)
9	Nameplate
10	Endcap, Handle (Black)
10	Endcap, Handle (White)
11	ENDCAP
