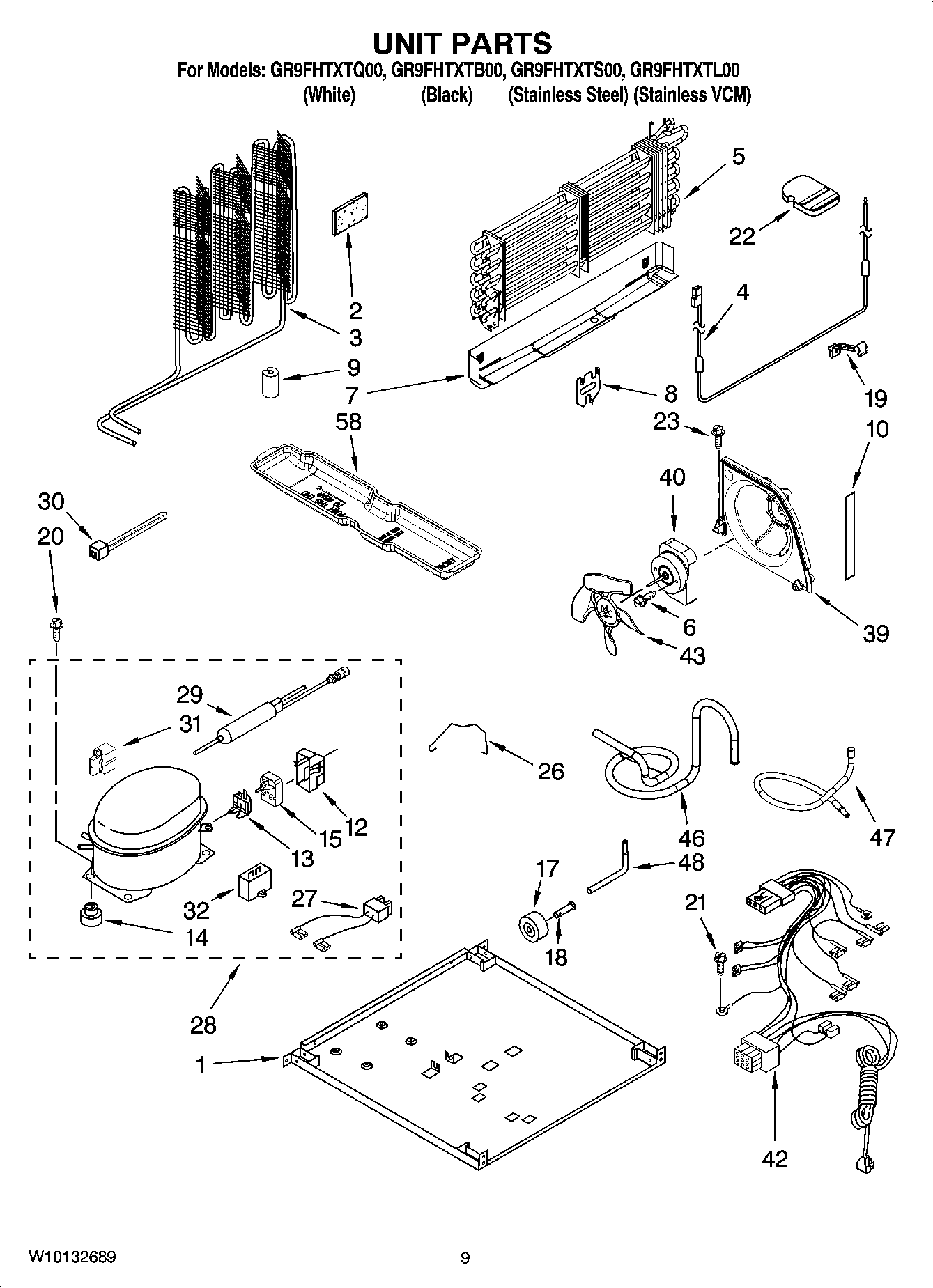

GR9FHTXTB00 05 – UNIT PARTS

GR9FHTXTB00 05 – UNIT PARTS

Written by

in

GR9FHTXTB00 05 – UNIT PARTS

Products

PositionProduct
1Plate, Unit Mounting
2W11553819 Whirlpool Refrigerator Insulation
3WP2214960 Whirlpool Refrigerator Condenser
4WP2315531 Whirlpool Refrigerator Heater
5Evaporator Assy.
6WPW10171469 Whirlpool Refrigerator Screw
7Drain Pan
8Bracket, Heater
9W10852725 Whirlpool Refrigerator Grommet
10Extension, Air Baffle
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2214067 Whirlpool Refrigerator Overload Relay
14876811 Whirlpool Grommet
14WP4387558 Whirlpool Refrigerator Compressor Grommet
15WP2225929 Whirlpool Refrigerator Start Device
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
21WP489128 Whirlpool Refrigerator Screw
22Support Block
233400518 Whirlpool Oven Foot Mount Screw
262212996 Whirlpool Refrigerator Retainer
27WP2172890 Whirlpool Refrigerator Wire
28W10309988 Whirlpool Refrigerator Compressor
29WPW10143759 Whirlpool Dryer Filter
30WPW10339879 Whirlpool Wire Tie
31W10920279 Whirlpool Refrigerator Start Relay
32WPW10662129 Whirlpool Refrigerator Run Capacitor
39WP2315541 Whirlpool Refrigerator Air Baffle
40WP2188874 Whirlpool Refrigerator Condenser Motor
422187916 Whirlpool Refrigerator Wire Harness
43W11458267 Whirlpool Refrigerator Fan Blade
46Tube, Discharge
47Tube, Suction
482154109 Whirlpool Refrigerator Tube
58VALVE, ACCESS (5/8“)
58Following Parts Not Illustrated and Optional Parts Not Included
58876764 Whirlpool Refrigerator Primary Valve
58978027 Whirlpool Refrigerator Primary Valve
58978030 Whirlpool Refrigerator Valve
58WP978025 Whirlpool Refrigerator Valve
58VALVE, ACCESS (1/2“)
58978026 Whirlpool Refrigerator Primary Valve
58WP2254574 Whirlpool Refrigerator Evaporator Tray
58REFRIGERANT CHARGE 4.0 Ozs. (R134A)
