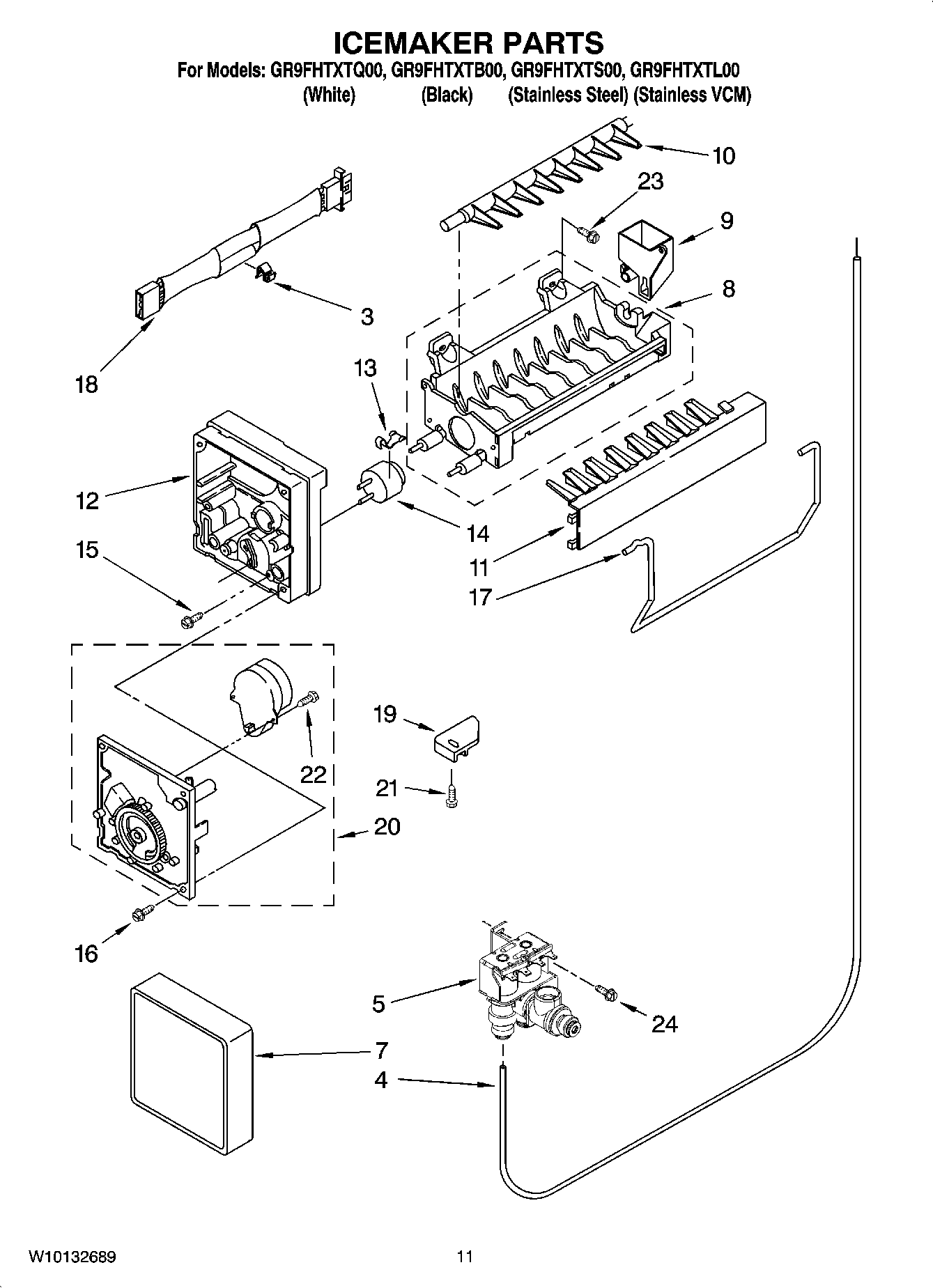

GR9FHTXTB00 06 – ICEMAKER PARTS

GR9FHTXTB00 06 – ICEMAKER PARTS

Written by

in

GR9FHTXTB00 06 – ICEMAKER PARTS

Products

PositionProduct
3WP628379 Whirlpool Refrigerator Clip
4W10823511 Whirlpool Refrigerator Water Tube
5WP2188808 Whirlpool Refrigerator Inlet Valve
7WPW10289690 Whirlpool Ice Maker Cover
8WPW10190929 Whirlpool Refrigerator Ice Maker Mold
9W10122561 Whirlpool Refrigerator Cup Fill
10WP627843 Whirlpool Refrigerator Ejector Arm
11WP2182124 Whirlpool Refrigerator Stripper Arm
12WP2195914 Whirlpool Refrigerator Ice Maker Housing
13WP2315522 Whirlpool Refrigerator Clip
14WP627985 Whirlpool Icemaker Cycling Thermostat
158533917 Whirlpool Refrigerator Screw
16WP681249 Whirlpool Screw Assembly
17WP627792 Whirlpool Refrigerator Shut Off Arm
18WP2187464 Whirlpool Refrigerator Wire Harness
19W11500948 Whirlpool Refrigerator Bracket
20W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
21WP489478 Whirlpool Refrigerator Screw
22489136 Whirlpool Refrigerator Screw
23WP488163 Whirlpool Refrigerator Screw
24WP489442 Whirlpool Refrigerator Screw
1004317943 Whirlpool Refrigerator Ice Maker Assembly
