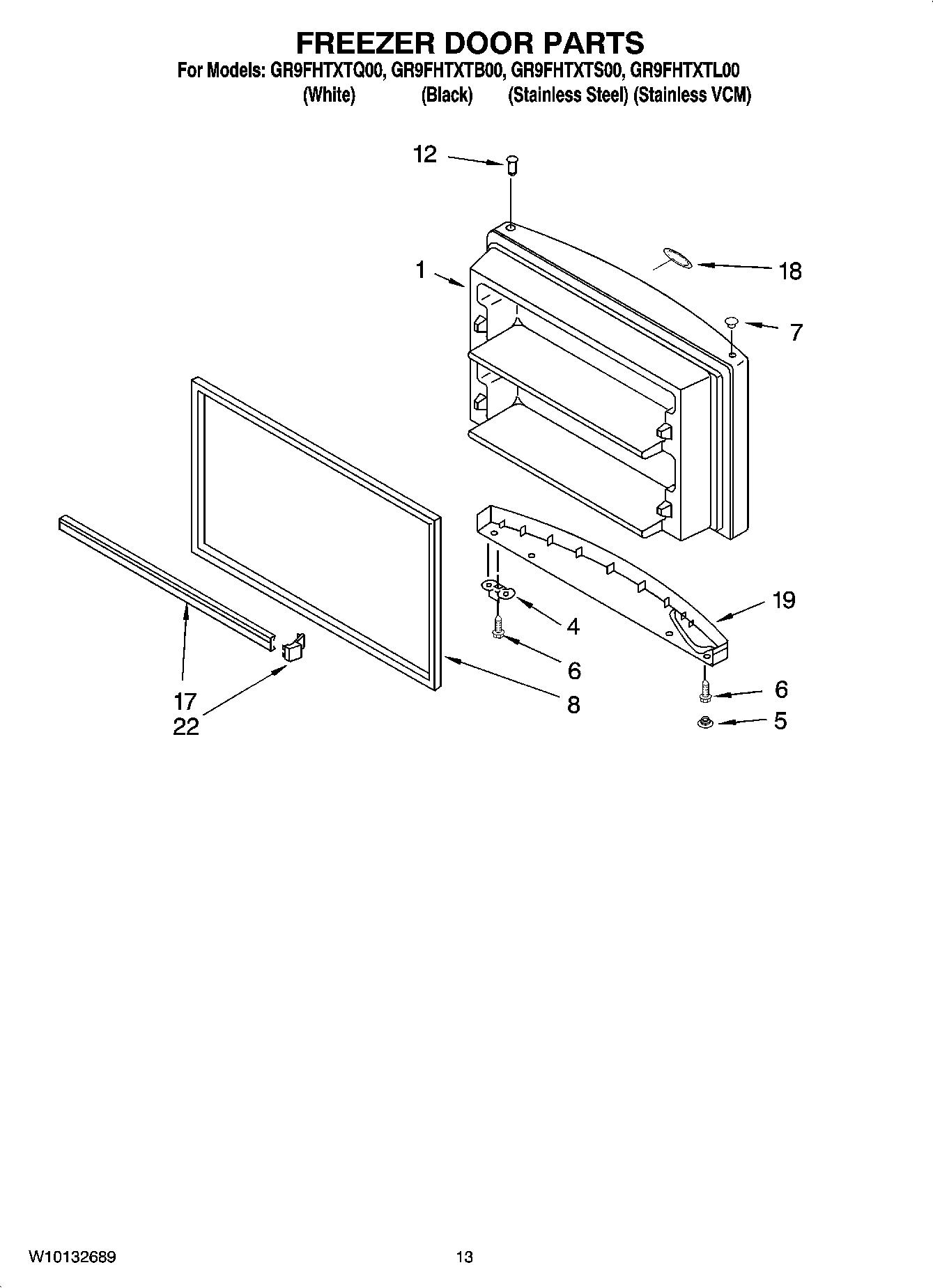

GR9FHTXTB00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Illus. 4 & 6) (Stainless Steel)
1Freezer Door (Includes Illus. 6 & 7) (Stainless VCM)
1Freezer Door (Includes Illus. 6 & 7) (Black)
1Freezer Door (Includes Illus. 6 & 7) (White)
4W11745278 Whirlpool Bracket
5HOLE PLUG, ENDCAP (BLACK)
5HOLE PLUG, ENDCAP (WHITE)
6WP681249 Whirlpool Screw Assembly
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82177304 Whirlpool Refrigerator FIP Gasket
82159327 Whirlpool Refrigerator Door Gasket
12WP2183003 Whirlpool Thimble
17Trim-Door (2)
18Nameplate
19Endcap, Handle (White)
19Endcap, Handle (Black)
22ENDCAP
