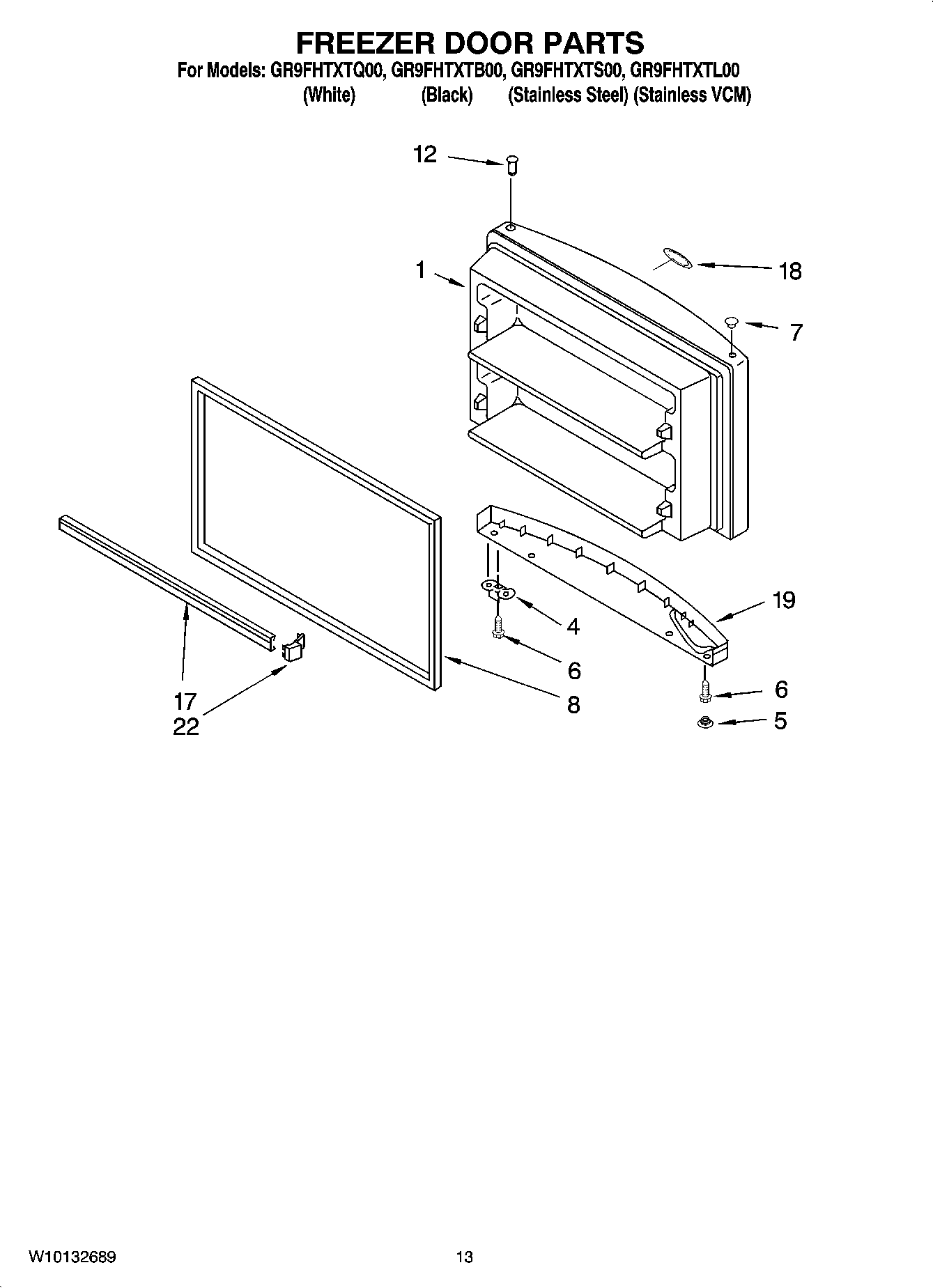

GR9FHTXTL00 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Illus. 4 & 6) (Stainless Steel)
1	Freezer Door (Includes Illus. 6 & 7) (Stainless VCM)
1	Freezer Door (Includes Illus. 6 & 7) (Black)
1	Freezer Door (Includes Illus. 6 & 7) (White)
4	W11745278 Whirlpool Bracket
5	HOLE PLUG, ENDCAP (BLACK)
5	HOLE PLUG, ENDCAP (WHITE)
6	WP681249 Whirlpool Screw Assembly
7	WP2212651 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2177304 Whirlpool Refrigerator FIP Gasket
8	2159327 Whirlpool Refrigerator Door Gasket
12	WP2183003 Whirlpool Thimble
17	Trim-Door (2)
18	Nameplate
19	Endcap, Handle (White)
19	Endcap, Handle (Black)
22	ENDCAP
