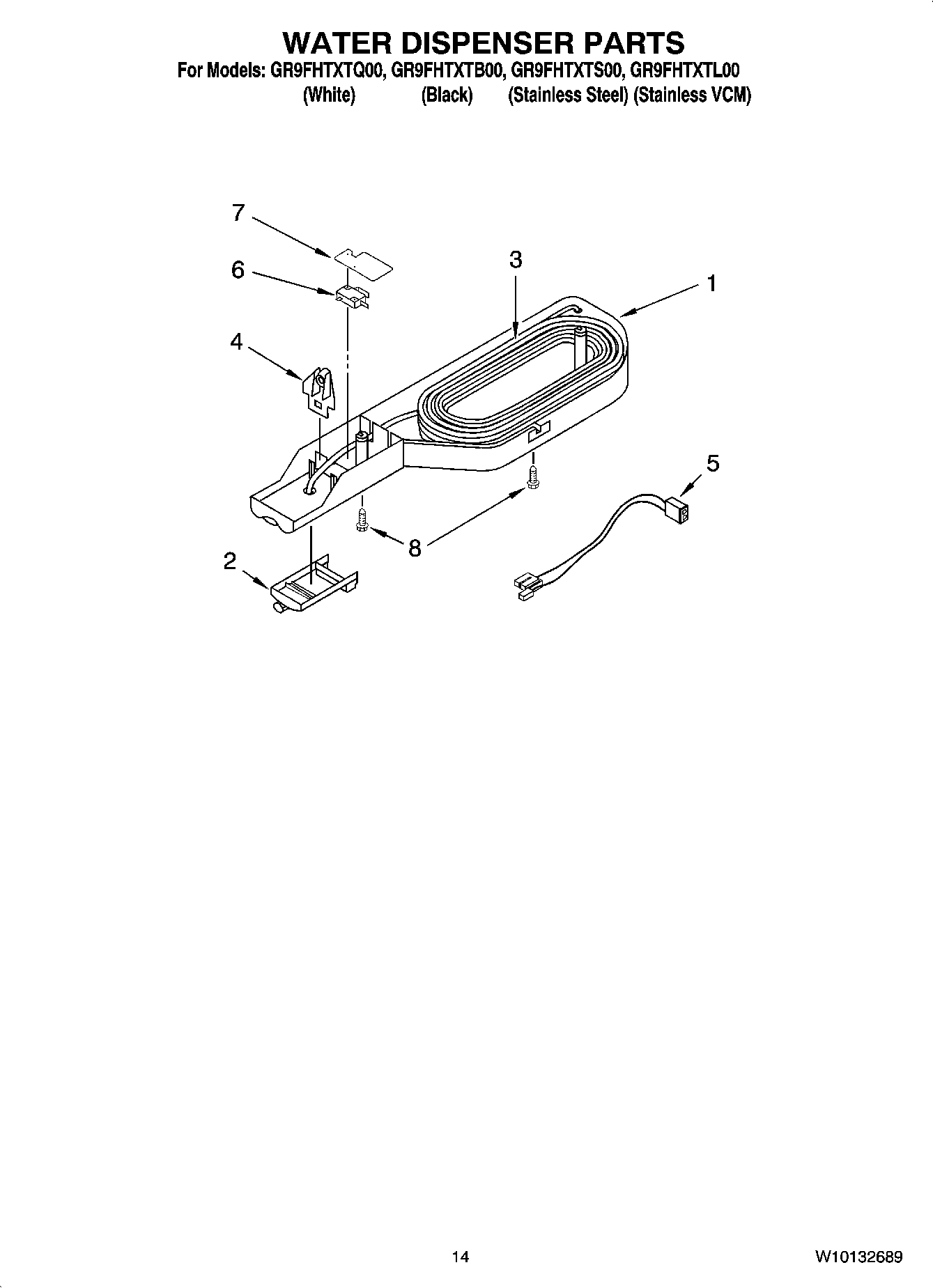

GR9FHTXTS00 08 – WATER DISPENSER PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799832
	WPL 799833
	WPL 876029
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	Parts Not Illustrated and Optional Parts (Not Included)
	WPL ARI68843A6
	WPL ARI68844A2
	WPL ARI68845A3
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	Torx Key
	WP542638 Whirlpool Refrigerator Grease
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	WPL ARI68846A7
	606755 Whirlpool Refrigerator Bag
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
	876370 Whirlpool Refrigerator Insulation
	833938 Whirlpool Refrigerator Terminal
	511873 Whirlpool Refrigerator Paint
1	Housing, Dispenser
2	Button, Dispenser
3	Reservoir, Tube
4	Flange, Tube
5	Wire Assembly
6	WP2162361 Whirlpool Switch
7	Shield, Switch
8	W11544659 Whirlpool Refrigerator Screw
