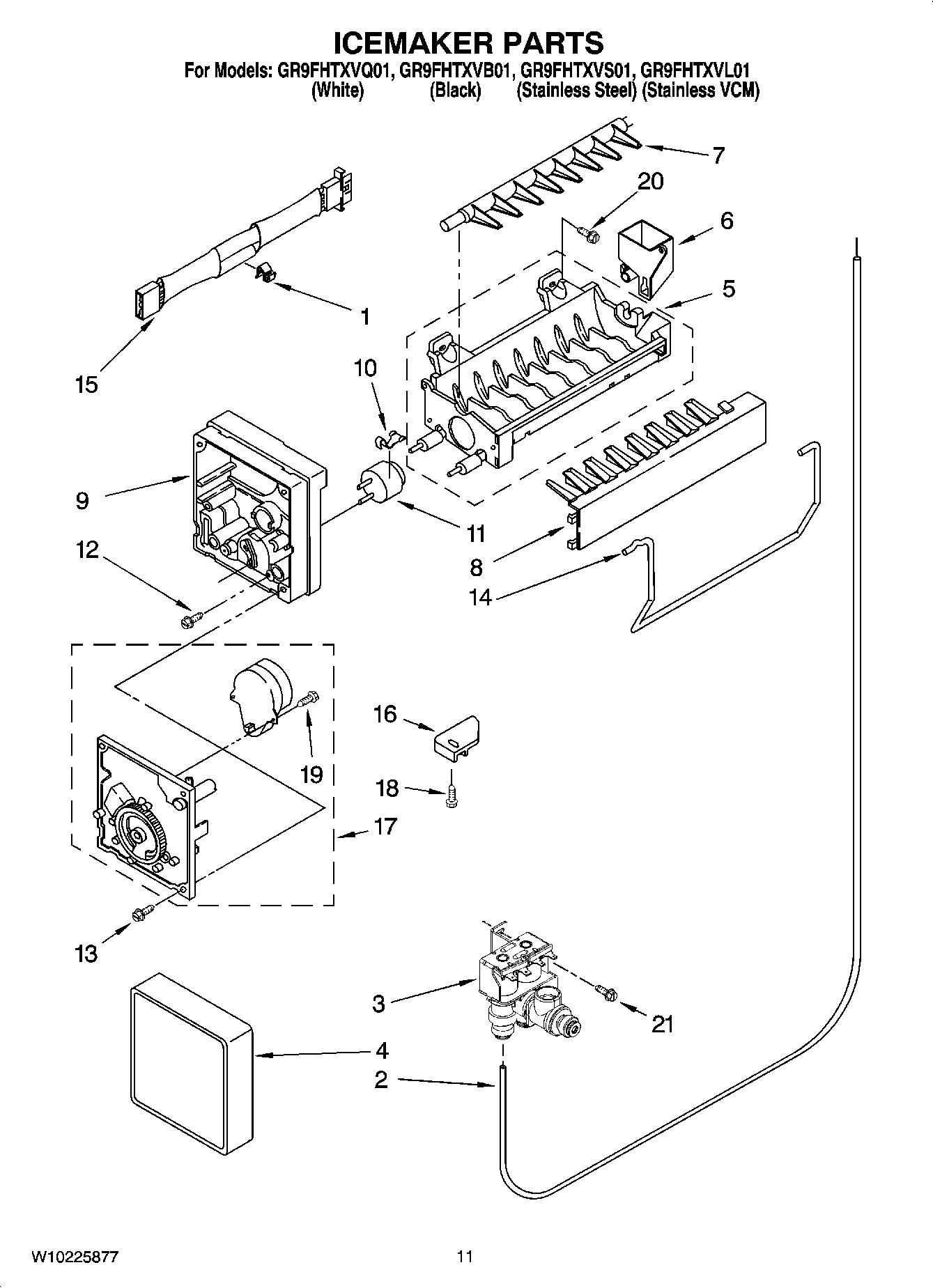

GR9FHTXVB01 06 – ICEMAKER PARTSadmin2025-04-26T11:00:22+00:00GR9FHTXVB01 06 – ICEMAKER PARTS ProductsPositionProduct1WP628379 Whirlpool Refrigerator Clip2W10823511 Whirlpool Refrigerator Water Tube3WP2188808 Whirlpool Refrigerator Inlet Valve4WPW10289690 Whirlpool Ice Maker Cover5WPW10190929 Whirlpool Refrigerator Ice Maker Mold6W10122561 Whirlpool Refrigerator Cup Fill7WP627843 Whirlpool Refrigerator Ejector Arm8WP2182124 Whirlpool Refrigerator Stripper Arm9WP2195914 Whirlpool Refrigerator Ice Maker Housing10WP2315522 Whirlpool Refrigerator Clip11WP627985 Whirlpool Icemaker Cycling Thermostat128533917 Whirlpool Refrigerator Screw13WP681249 Whirlpool Screw Assembly14WP627792 Whirlpool Refrigerator Shut Off Arm15WP2187464 Whirlpool Refrigerator Wire Harness16W11500948 Whirlpool Refrigerator Bracket178201515 Whirlpool Refrigerator Motor and Gear Module Kit18WP489478 Whirlpool Refrigerator Screw19489136 Whirlpool Refrigerator Screw20WP488163 Whirlpool Refrigerator Screw21WP489442 Whirlpool Refrigerator Screw1004317943 Whirlpool Refrigerator Ice Maker Assembly
