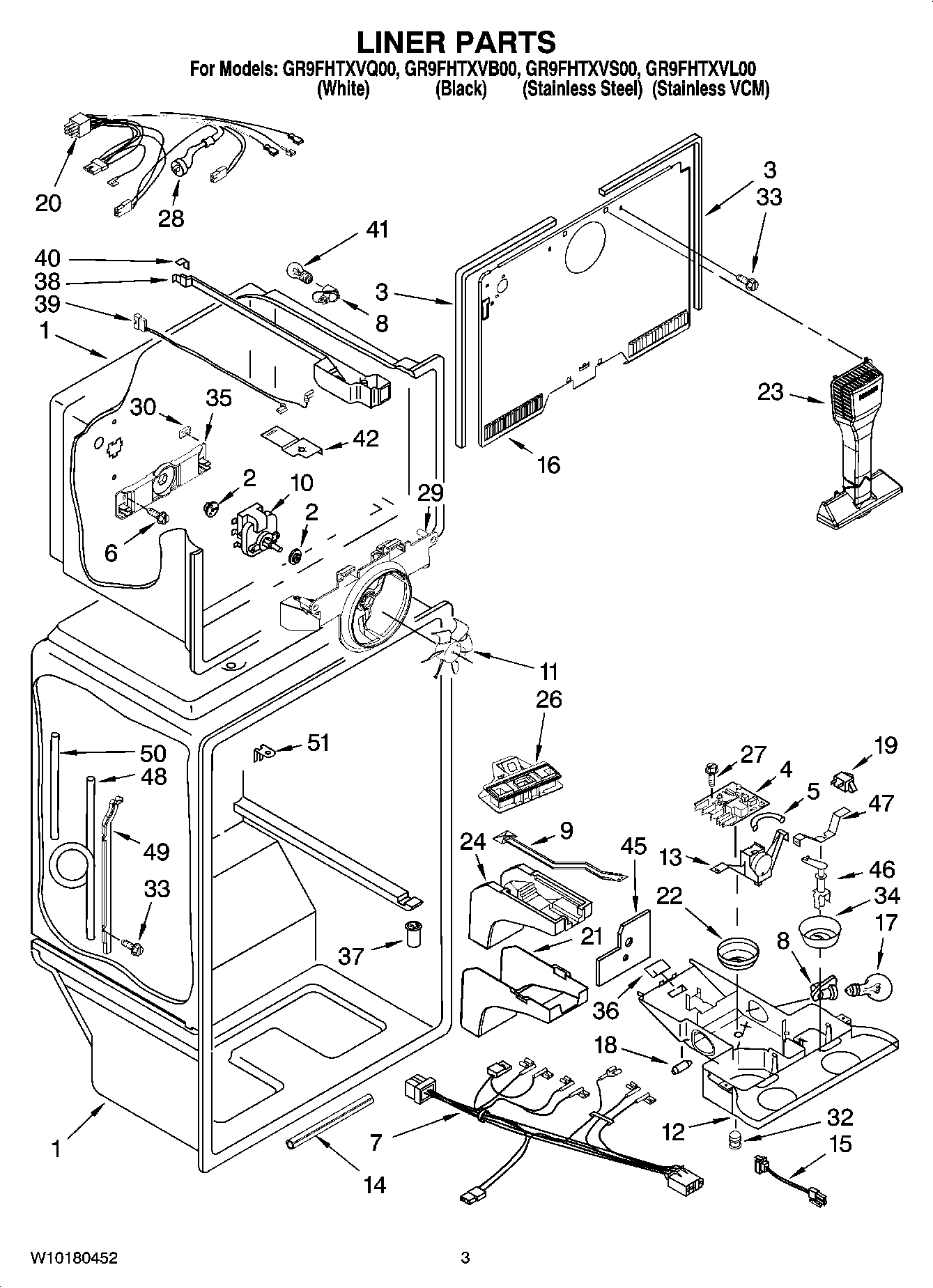

GR9FHTXVQ00 02 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WP2304093 Whirlpool Refrigerator Electronic Control Board
5	Thermostat Tube Barrier
6	WP488163 Whirlpool Refrigerator Screw
7	Wire Assembly, Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assembly (Includes Illus. 5 & 18)
14	Insulation, Water Tube
15	W10853646 Whirlpool Indicator Light
16	Cover, Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	W10129791 Whirlpool Refrigerator Wire Harness
21	Cover, Air Diffuser
22	W10829461 Whirlpool Refrigerator Thermal Knob
23	WP2254354 Whirlpool Refrigerator Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
26	Air Separator Assembly
27	Screw
28	WP2321800 Whirlpool Refrigerator Bimetallic Defrost
29	BRACKET, FAN MOTOR
30	Retainer-Screw
32	Lens-LED
33	WP489478 Whirlpool Refrigerator Screw
34	Knob, Damper
35	2254454 Whirlpool Refrigerator Bracket
36	WP2205079 Whirlpool Refrigerator Seal
37	WP2210509 Whirlpool Refrigerator Tub Valve
38	Housing Base
39	Wiring Harness, Freezer Light
40	Gasket, Rear
41	4396822 Whirlpool Refrigerator Light Bulb
42	Electrical Shield, Freezer Light
45	Shield, heat
46	Post, Damper
47	Bracket, Damper Knob
48	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
49	Cover, Tubing
50	Tube, Water Filter
51	Clip, Retainer
