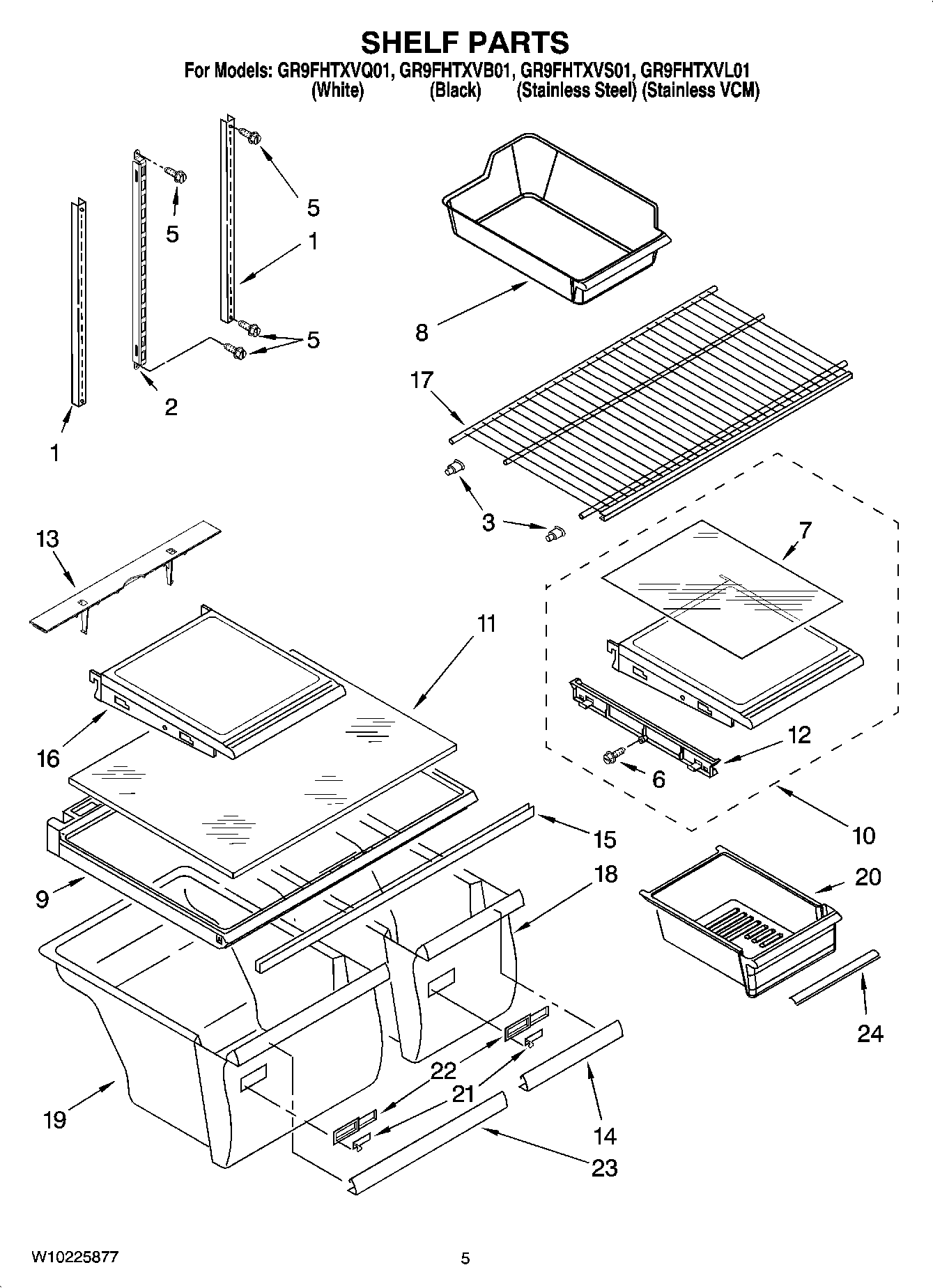

GR9FHTXVQ01 03 – SHELF PARTS

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	2163762 Whirlpool Refrigerator Cup Assembly
5	WP489478 Whirlpool Refrigerator Screw
6	WP3400065 Whirlpool Refrigerator Screw
7	Glass, Half Shelf
8	2254352A Whirlpool Refrigerator Ice Container
9	WP2314548 Whirlpool Refrigerator Cover
10	Shelf Assembly, Spillguard
11	WP2169921 Whirlpool Refrigerator Glass Shelf
12	Track, Pan Slide (2)
13	Deflector-Air
14	Trim, Crisper Pan
15	WP2172748 Whirlpool Drawer Support
16	Shelf Assembly, Spillguard (2)
17	Shelf, Freezer
18	W10856580 Whirlpool Crisper Pan
19	W10854037 Whirlpool Refrigerator Crisper Pan
20	PAN-MEAT
21	WP2176222 Whirlpool Refrigerator Slide
22	WP2212446 Whirlpool Refrigerator Control Body
23	WP2195341 Whirlpool Refrigerator Pan Trim
24	Trim, Meat Pan
