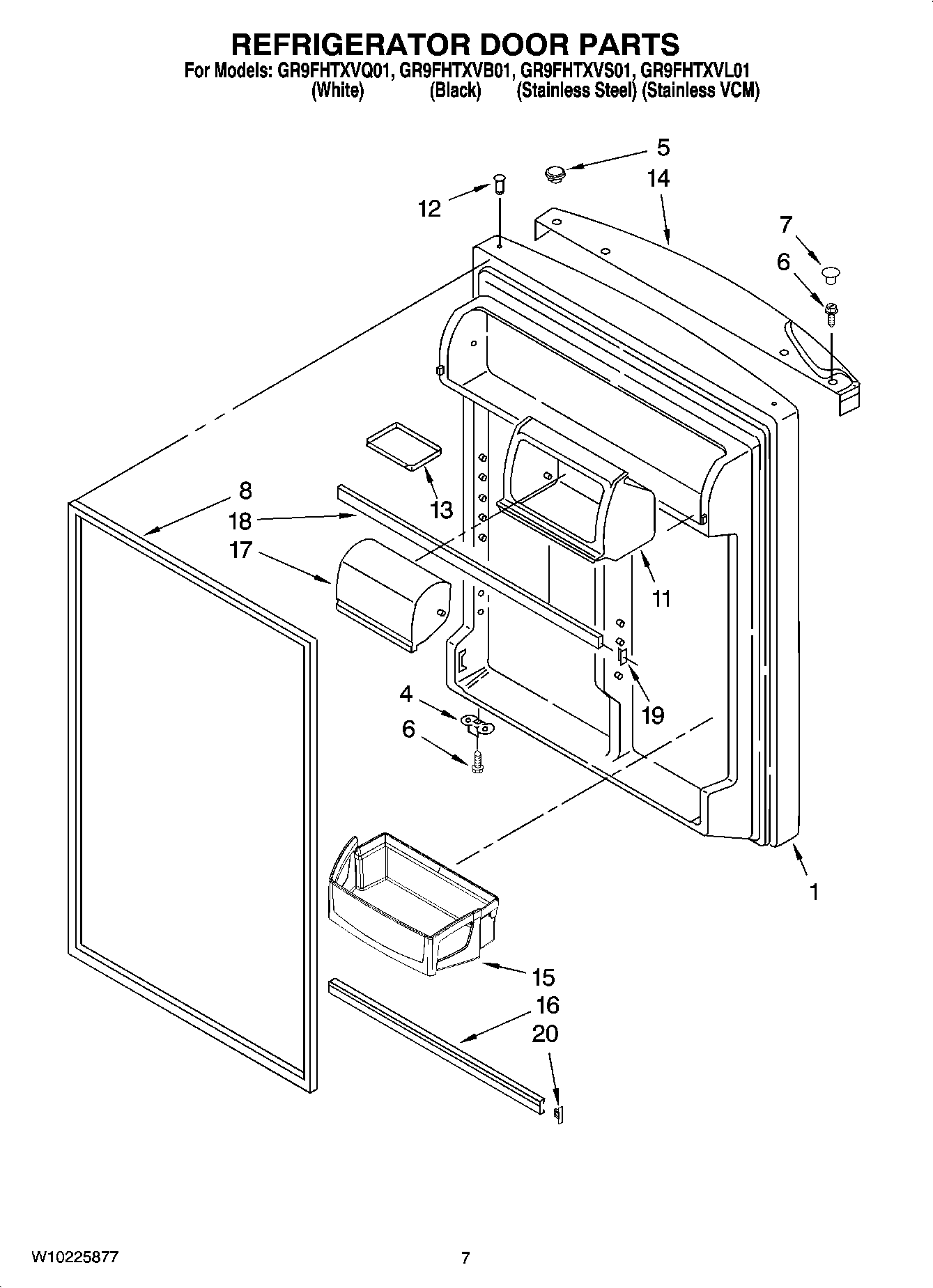

GR9FHTXVS01 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES LLLUS. 8 & 12) (STAINLESS STEEL)
1	Refrigerator Door (Includes Illus. 8 & 12) (White)
1	Refrigerator Door (Includes Illus. 8 & 12) (Black)
1	REFRIGERATOR DOOR (INCLUDES LLLUS. 8 & 12) (STAINLESS VCM)
4	W11745278 Whirlpool Bracket
5	HOLE PLUG, ENDCAP (BLACK)
5	HOLE PLUG, ENDCAP (WHITE)
6	WP681249 Whirlpool Screw Assembly
7	WP2212651 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2177305 Whirlpool Refrigerator Door FIP Gasket
8	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
11	Housing Compartment
12	WP2183003 Whirlpool Thimble
13	Tray, Door
14	Endcap, Handle (Black)
14	Endcap, Handle (White)
15	Bin, Door Shelf (3)
16	WPW10421484 Whirlpool Refrigerator Door Trim
17	DOOR-COMP
18	WP2159312 Whirlpool Refrigerator Door Trim
19	Endcap, Door Trim
20	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
