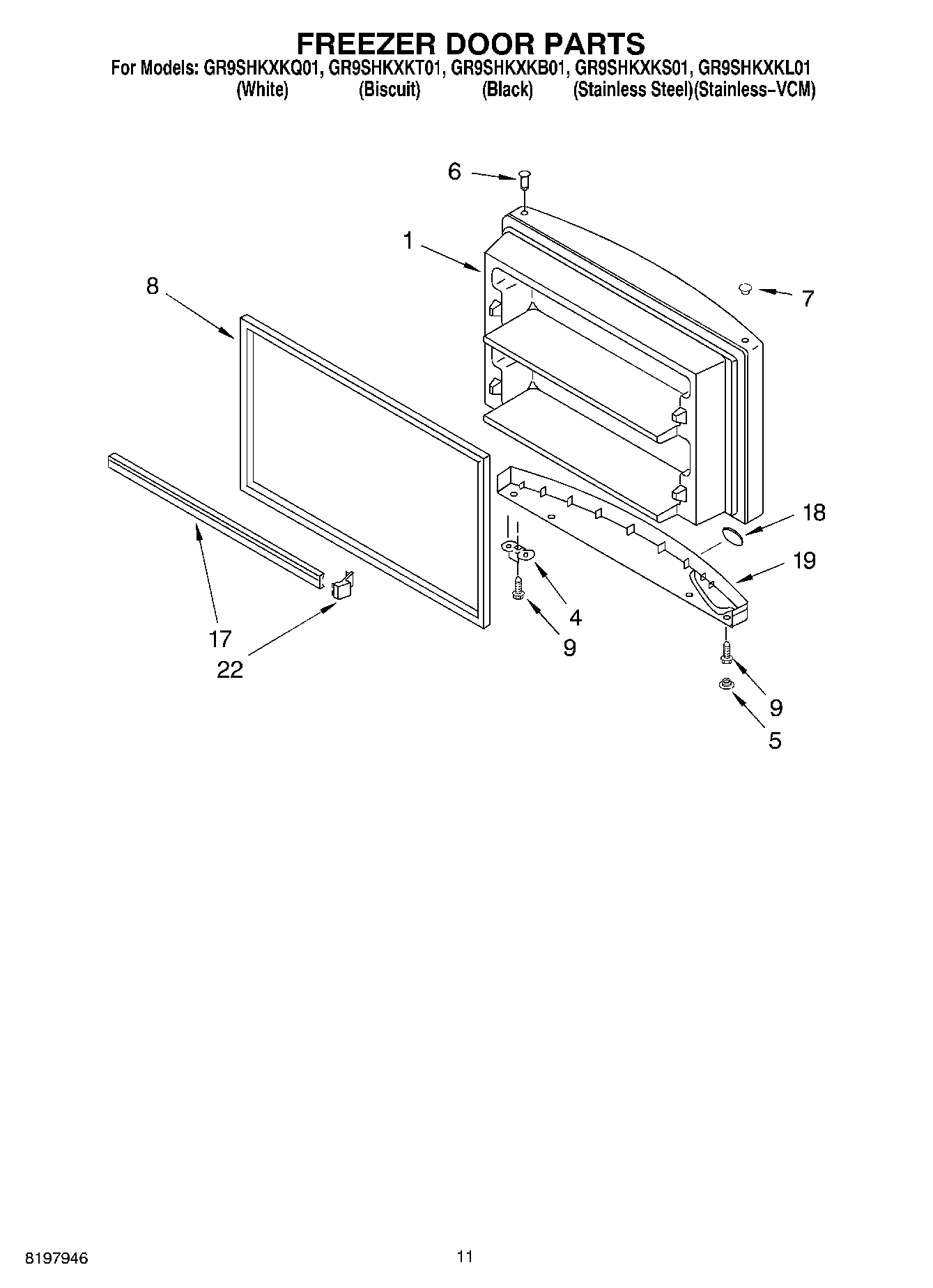

GR9SHKXKB01 06 – FREEZER DOOR, OPTIONAL

GR9SHKXKB01 06 – FREEZER DOOR, OPTIONAL

Written by

in

GR9SHKXKB01 06 – FREEZER DOOR, OPTIONAL

Products

PositionProduct
1Freezer Door (Includes 6 & 8) (Biscuit)
1Freezer Door (Includes Illus. 6 & 7) (Stainless VCM)
1Freezer Door (Includes Illus. 6 & 7) (White)
1Freezer Door (Includes Illus. 6 & 7) (Black)
1Freezer Door (Includes Illus. 4 & 6) (Stainless Steel)
4W11745278 Whirlpool Bracket
5HOLE PLUG, ENDCAP (WHITE)
5Hole Plug, Handle (Biscuit)
5HOLE PLUG, ENDCAP (BLACK)
6WP2183003 Whirlpool Thimble
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82177304 Whirlpool Refrigerator FIP Gasket
82159327 Whirlpool Refrigerator Door Gasket
9WP681249 Whirlpool Screw Assembly
17Trim-Door (2)
18Nameplate
19Endcap, Handle (White)
19Endcap, Handle (Black)
19Handle (Biscuit)
22350942 Whirlpool Spray Paint
2272032 Whirlpool Touch Up Paint Black
22350930 Whirlpool White Spray Paint
2272017 Whirlpool Appliance Touch-Up Paint White
22ENDCAP
224392899 Whirlpool Biscuit Touch-Up Paint
22212643 Whirlpool Refrigerator Permagum Sealer
22799344 Whirlpool Refrigerator Paint
22285006 Whirlpool Spray
224392901 Whirlpool Biscuit Spray Paint
22511873 Whirlpool Refrigerator Paint
22WP542638 Whirlpool Refrigerator Grease
22Torx Key
22PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
22TAPE, VINYL (3/4 X 108“)
22WP503695 Whirlpool Refrigerator Sealer
22WPL 799832
22WPL 799833
22WPL 876029
22W11729596 Whirlpool Ice Maker Field Install Kit
22876370 Whirlpool Refrigerator Insulation
22833938 Whirlpool Refrigerator Terminal
22606755 Whirlpool Refrigerator Bag
22CEMENT, ALUMILASTIC (1 1/4 OZ.)
22WP505587 Whirlpool Refrigerator Sealer
