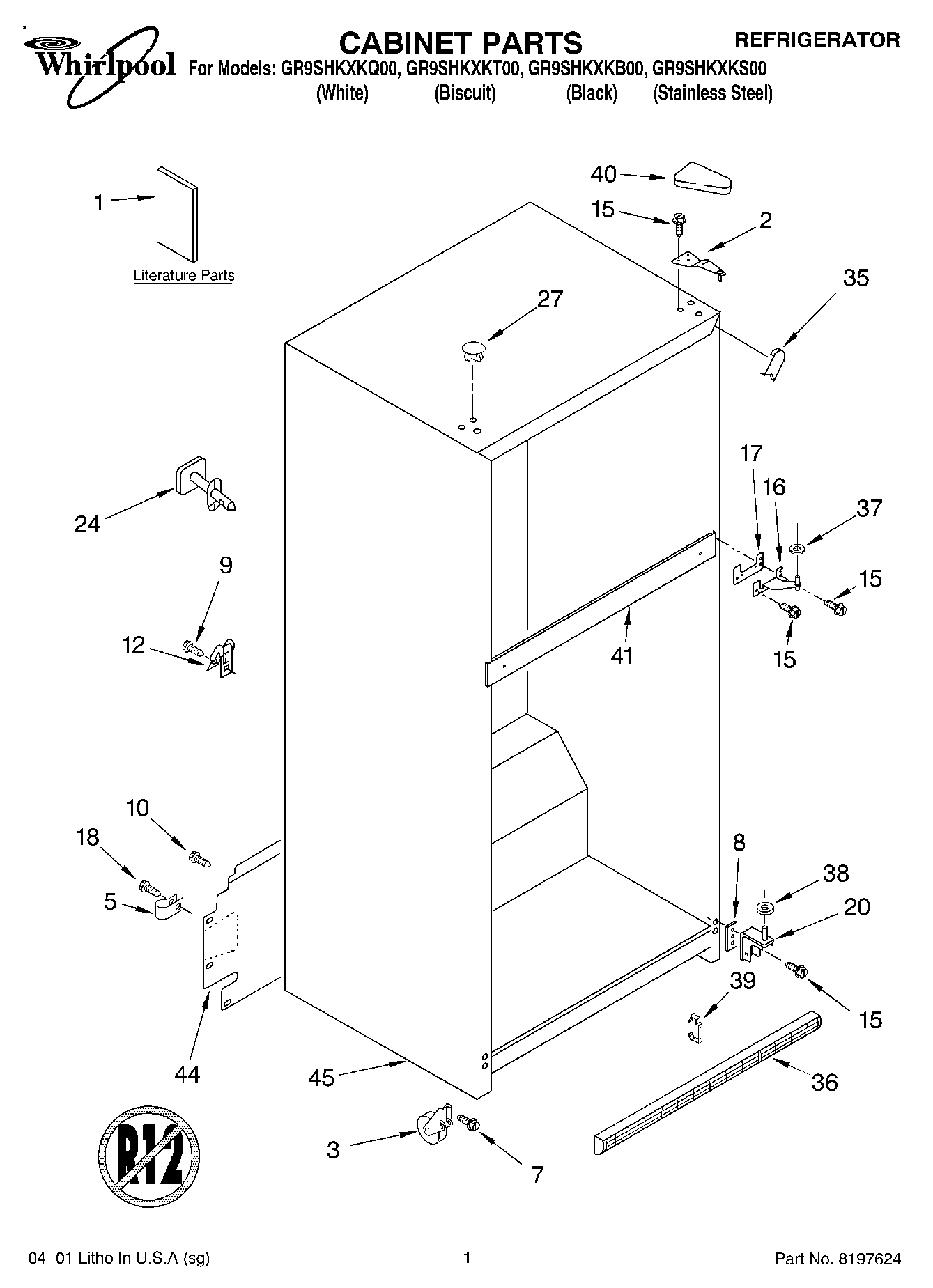

GR9SHKXKT00 01 – CABINET, LITERATURE

Products

Position	Product
1	Energy Label
1	Service & Wiring Sheet
1	Literature Parts (Use & Care Guide)
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP488366 Whirlpool Refrigerator Clamp
7	WP3400504 Whirlpool Refrigerator Screw
8	Shim, Bottom Hinge
9	WP489442 Whirlpool Refrigerator Screw
10	WP489464 Whirlpool Refrigerator Screw
12	549193 Whirlpool Refrigerator Power Clamp
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
20	WP2254473 Whirlpool Refrigerator Door Hinge
24	Fitting, Water Tube (Not Serviced)
27	Hole Plug (6) (Biscuit)
27	WP2151652 Whirlpool Refrigerator Button Plug
27	WP2183998 Whirlpool Refrigerator Button Plug
35	W11252732 Whirlpool Refrigerator Filler
35	W10283958 Whirlpool Refrigerator Filler
35	WPW10283959 Whirlpool Refrigerator Filler
36	Grille (Black)
36	WP2254386 Whirlpool Refrigerator Grille
37	WP489467 Whirlpool Hinge Shim
38	WP487576 Whirlpool Washer
39	CLIP, GRILLE
40	WP2213363 Whirlpool Refrigerator Cover
40	2213364 Whirlpool Refrigerator Cover
40	WP2213360 Whirlpool Refrigerator Cover
41	Rail Center (Not Serviced)
44	Cover, Unit
45	Cabinet (Not A Serviceable Part)
