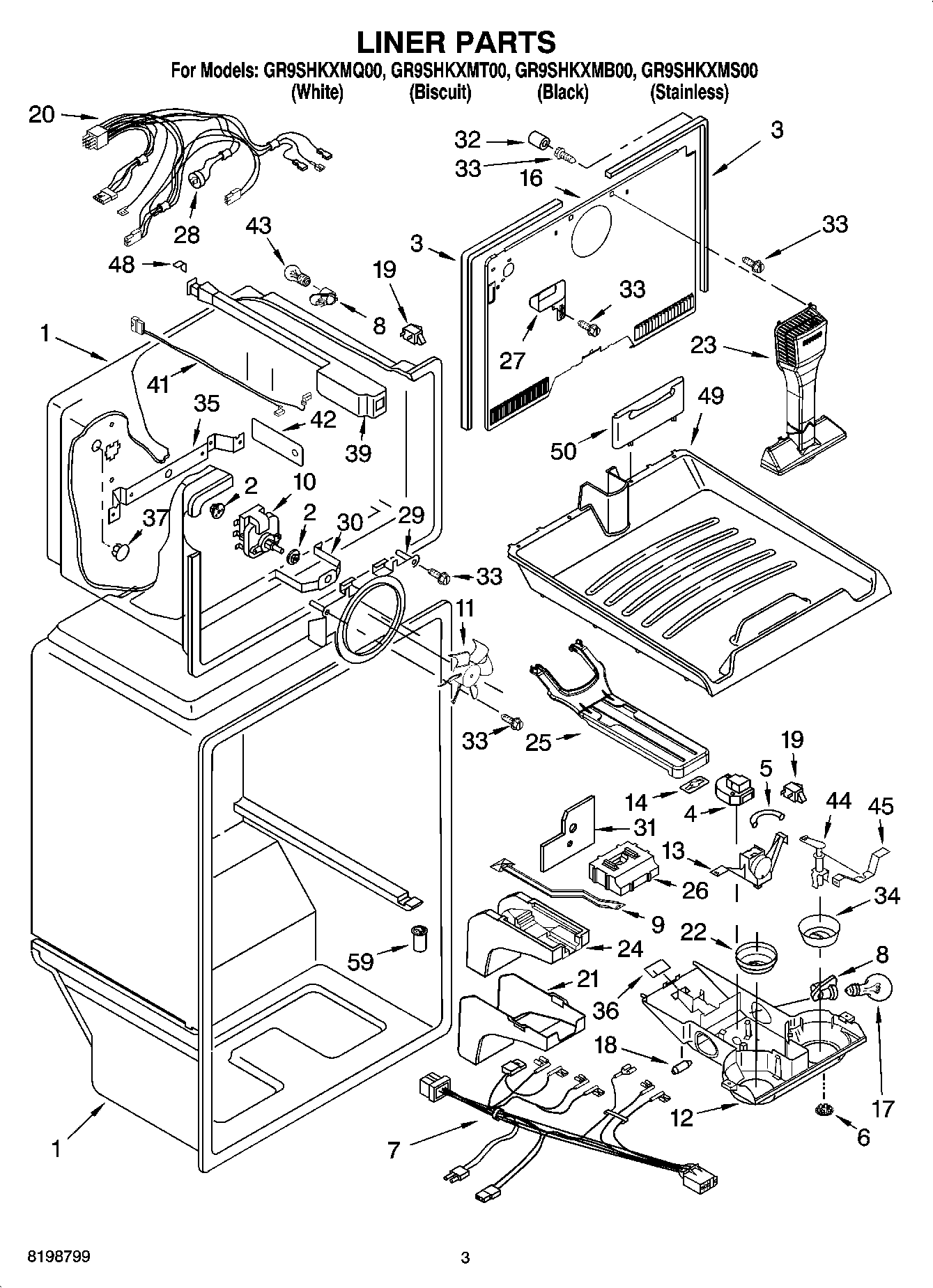

GR9SHKXMB00 02 – LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4Defrost Timer
5Thermostat Tube Barrier
6940014 Whirlpool Refrigerator Primary Button Plug
7Wire Assy. Control Box
84387478 Whirlpool Refrigerator Light Socket
9Damper, Air
10WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13Thermostat Assy. (Includes Illus. 5 & 18)
14Clip, Defrost Timer
16Cover-Evaporator
17RANGE ONLY 40W 120V APPL BULB
18Weight, Thermal
19W11384469 Whirlpool Door Switch
20Wire Assembly, Freezer Compartment
21Cover, Air Diffuser
22W10829461 Whirlpool Refrigerator Thermal Knob
23WP2254354 Whirlpool Refrigerator Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
25Retainer, Freezer Floor
26Air Diffuser, Top
27Cover, Hole
28WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
29Bracket, Fan Motor
30Bracket, Evap. Fan, Front
31Shield, heat
32WP487996 Whirlpool Refrigerator Cap Tube
33WP489478 Whirlpool Refrigerator Screw
34Knob, Damper
35Bracket, Evap. Fan, Rear
36WP2205079 Whirlpool Refrigerator Seal
37WP941839 Whirlpool Refrigerator Button Plug
39Housing Base
41Wiring Harness, Freezer Light
42Electrical Shield, Freezer Light
434396822 Whirlpool Refrigerator Light Bulb
44Post, Damper
45Bracket, Damper Knob
48Gasket, Rear
49Pullout, Freezer Floor
50REAR FENCE PULL-OUT FREEZER FLOOR
59WP2210509 Whirlpool Refrigerator Tub Valve
