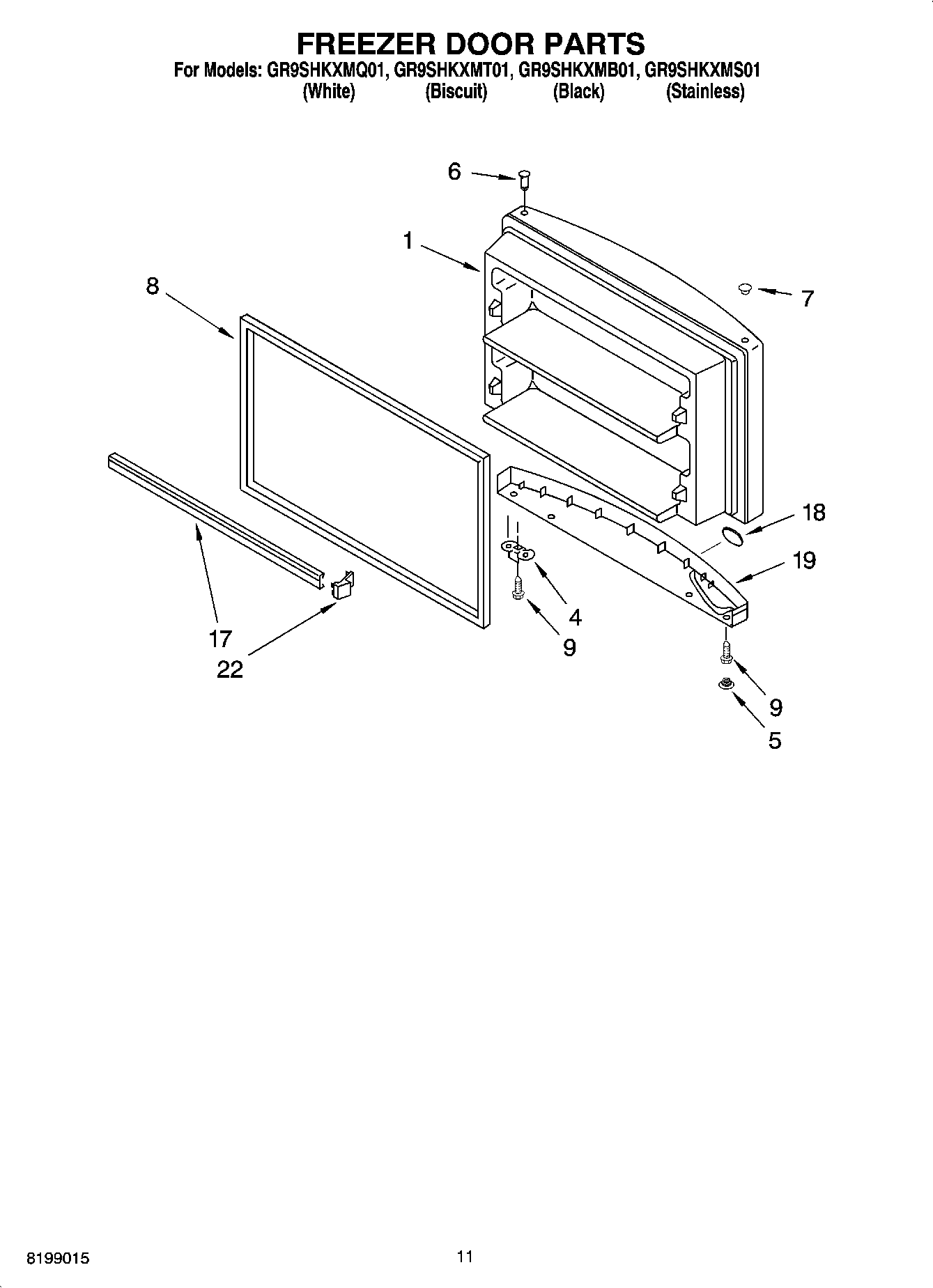

GR9SHKXMB01 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI69081A6
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI69082A1
WPL ARI69078A5
WPL ARI69079A8
WPL ARI69080A2
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Torx Key
WP542638 Whirlpool Refrigerator Grease
799344 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
876370 Whirlpool Refrigerator Insulation
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
212643 Whirlpool Refrigerator Permagum Sealer
1Freezer Door (Includes Illus. 6 & 7) (White)
1Freezer Door (Includes Illus. 4 & 6) (Stainless Steel)
1Freezer Door (Includes 6 & 8) (Biscuit)
1Freezer Door (Includes Illus. 6 & 7) (Black)
4W11745278 Whirlpool Bracket
5HOLE PLUG, ENDCAP (WHITE)
5Hole Plug, Handle (Biscuit)
5HOLE PLUG, ENDCAP (BLACK)
6WP2183003 Whirlpool Thimble
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212651 Whirlpool Refrigerator Button Plug
82159327 Whirlpool Refrigerator Door Gasket
82177304 Whirlpool Refrigerator FIP Gasket
9WP681249 Whirlpool Screw Assembly
17Trim-Door (2)
18Nameplate
19Endcap, Handle (Black)
19Endcap, Handle (White)
19Handle (Biscuit)
22ENDCAP
