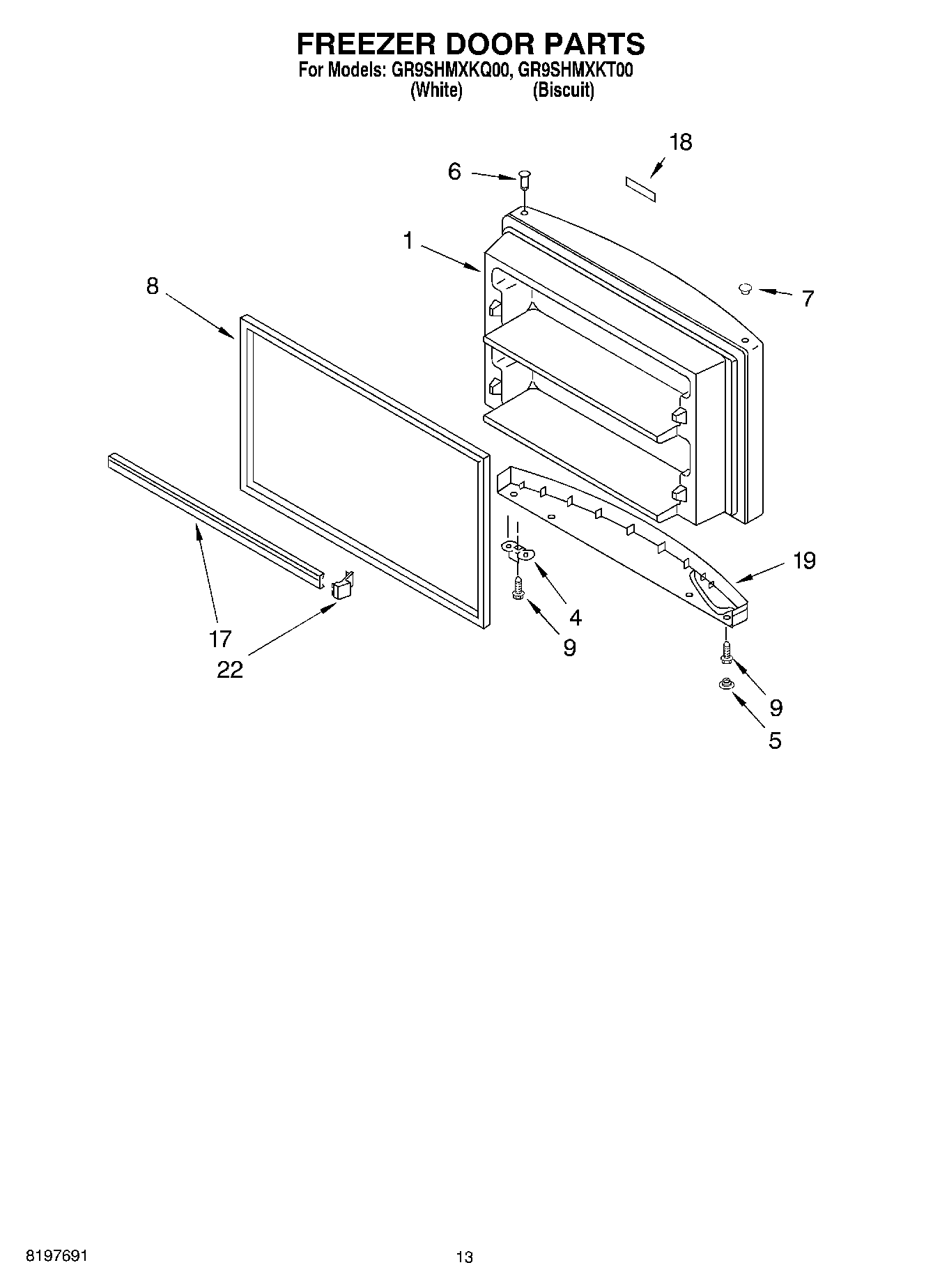

GR9SHMXKQ00 07 – FREEZER DOOR, OPTIONAL

Products

Position	Product
1	Freezer Door (Includes Illus. 6 & 7) (White)
1	Freezer Door (Includes 6 & 8) (Biscuit)
4	W11745278 Whirlpool Bracket
5	Hole Plug, Handle (Biscuit)
5	HOLE PLUG, ENDCAP (WHITE)
6	WP2183003 Whirlpool Thimble
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	WP2212649 Whirlpool Refrigerator Button Plug
8	2159327 Whirlpool Refrigerator Door Gasket
9	WP681249 Whirlpool Screw Assembly
17	Trim-Door (2)
18	Nameplate
19	Endcap, Handle (White)
19	Handle (Biscuit)
22	72032 Whirlpool Touch Up Paint Black
22	285006 Whirlpool Spray
22	ENDCAP
22	WPL 876029
22	WPL 799833
22	WPL 799832
22	CEMENT, ALUMILASTIC (1 1/4 OZ.)
22	350956 Whirlpool Spray Assembly
22	72017 Whirlpool Appliance Touch-Up Paint White
22	799344 Whirlpool Refrigerator Paint
22	WP72107 Whirlpool Touchup
22	Almond (Uncut)
22	212643 Whirlpool Refrigerator Permagum Sealer
22	350942 Whirlpool Spray Paint
22	511873 Whirlpool Refrigerator Paint
22	606755 Whirlpool Refrigerator Bag
22	833938 Whirlpool Refrigerator Terminal
22	876370 Whirlpool Refrigerator Insulation
22	WP503695 Whirlpool Refrigerator Sealer
22	WP505587 Whirlpool Refrigerator Sealer
22	WP542638 Whirlpool Refrigerator Grease
22	Torx Key
22	TAPE, VINYL (3/4 X 108“)
22	350930 Whirlpool White Spray Paint
