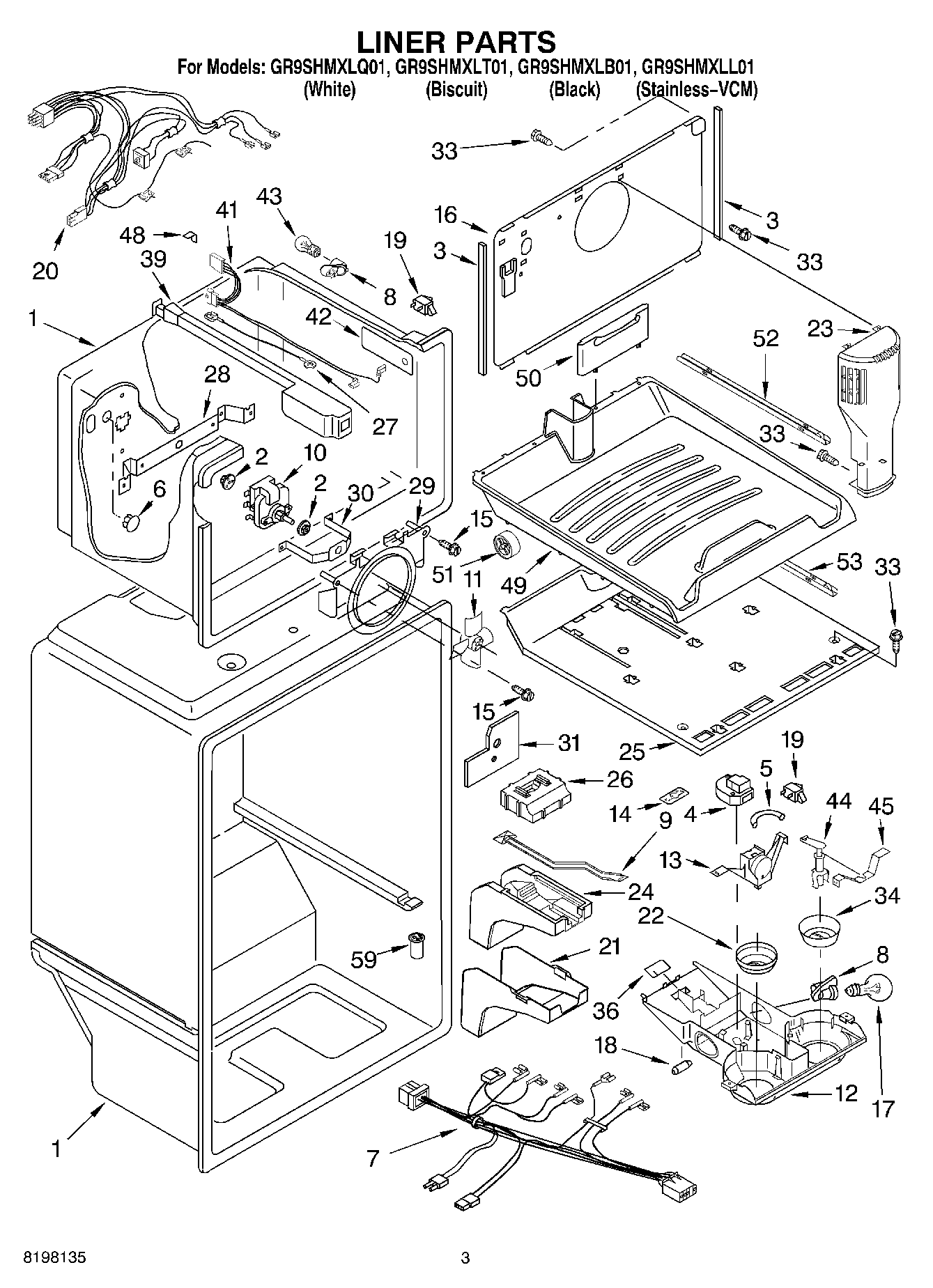

GR9SHMXLB01 02 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	Defrost Timer
5	Thermostat Tube Barrier
6	940014 Whirlpool Refrigerator Primary Button Plug
7	Wire Assy. Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assy. (Includes Illus. 5 & 18)
14	Clip, Defrost Timer
15	WP489464 Whirlpool Refrigerator Screw
16	Cover-Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Wire Assembly, Freezer Compartment
21	Cover, Air Diffuser
22	W10829461 Whirlpool Refrigerator Thermal Knob
23	Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	Freezer Floor
26	Air Diffuser, Top
27	Wire Assembly, Ground
28	Bracket, Evap. Fan, Rear
29	Bracket, Fan Motor
30	Bracket, Evap. Fan, Front
31	Shield, heat
33	WP489478 Whirlpool Refrigerator Screw
34	Knob, Damper
36	WP2205079 Whirlpool Refrigerator Seal
39	Housing Base
41	Wiring Harness, Freezer Light
42	Electrical Shield, Freezer Light
43	4396822 Whirlpool Refrigerator Light Bulb
44	Post, Damper
45	Bracket, Damper Knob
48	Gasket, Rear
49	Pullout, Freezer Floor (Includes Item 56)
50	REAR FENCE PULL-OUT FREEZER FLOOR
51	Roller, Slide
52	Side Support, Floor Assembly
53	Center Support, Floor Assembly
59	WP2210509 Whirlpool Refrigerator Tub Valve
