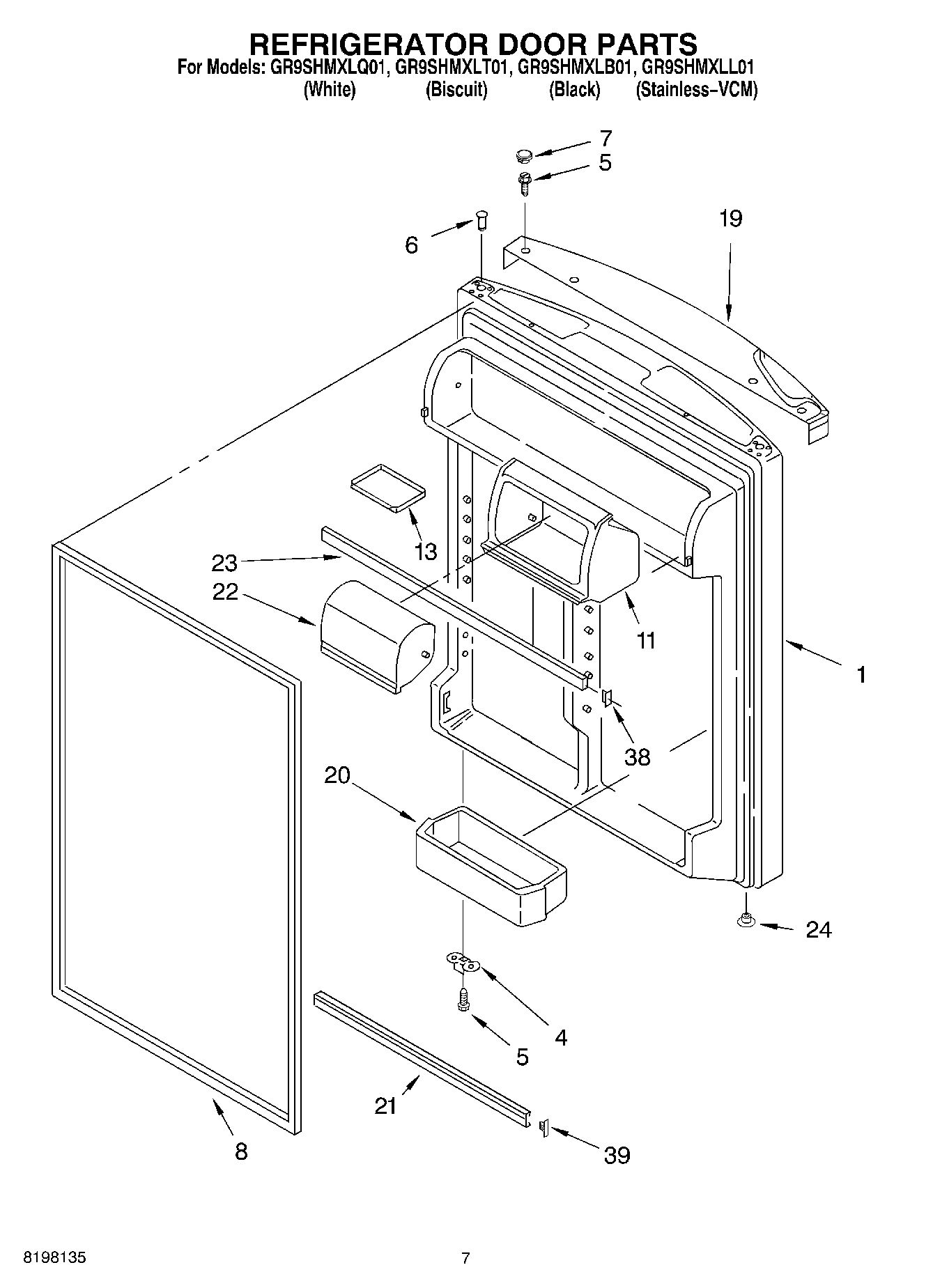

GR9SHMXLB01 04 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Illus. 8 & 12) (White)
1	Refrigerator Door (Includes Illus. 8 & 12) (Black)
1	REFRIGERATOR DOOR (INCLUDES LLLUS. 8 & 12) (STAINLESS VCM)
1	Refrigerator Door (Includes 6 & 8) (Biscuit)
4	W11745278 Whirlpool Bracket
5	WP681249 Whirlpool Screw Assembly
6	WP2183003 Whirlpool Thimble
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	WP2212651 Whirlpool Refrigerator Button Plug
7	WP2212649 Whirlpool Refrigerator Button Plug
8	2177305 Whirlpool Refrigerator Door FIP Gasket
8	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
11	Housing Compartment
13	Tray, Door
19	Endcap, Handle (Black)
19	Handle (Biscuit)
19	Endcap, Handle (White)
20	Bin, Door (3)
21	WPW10421484 Whirlpool Refrigerator Door Trim
22	DOOR-COMP
23	WP2159312 Whirlpool Refrigerator Door Trim
24	HOLE PLUG, ENDCAP (BLACK)
24	HOLE PLUG, ENDCAP (WHITE)
24	Hole Plug, Handle (Biscuit)
38	Endcap, Door Trim
39	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
