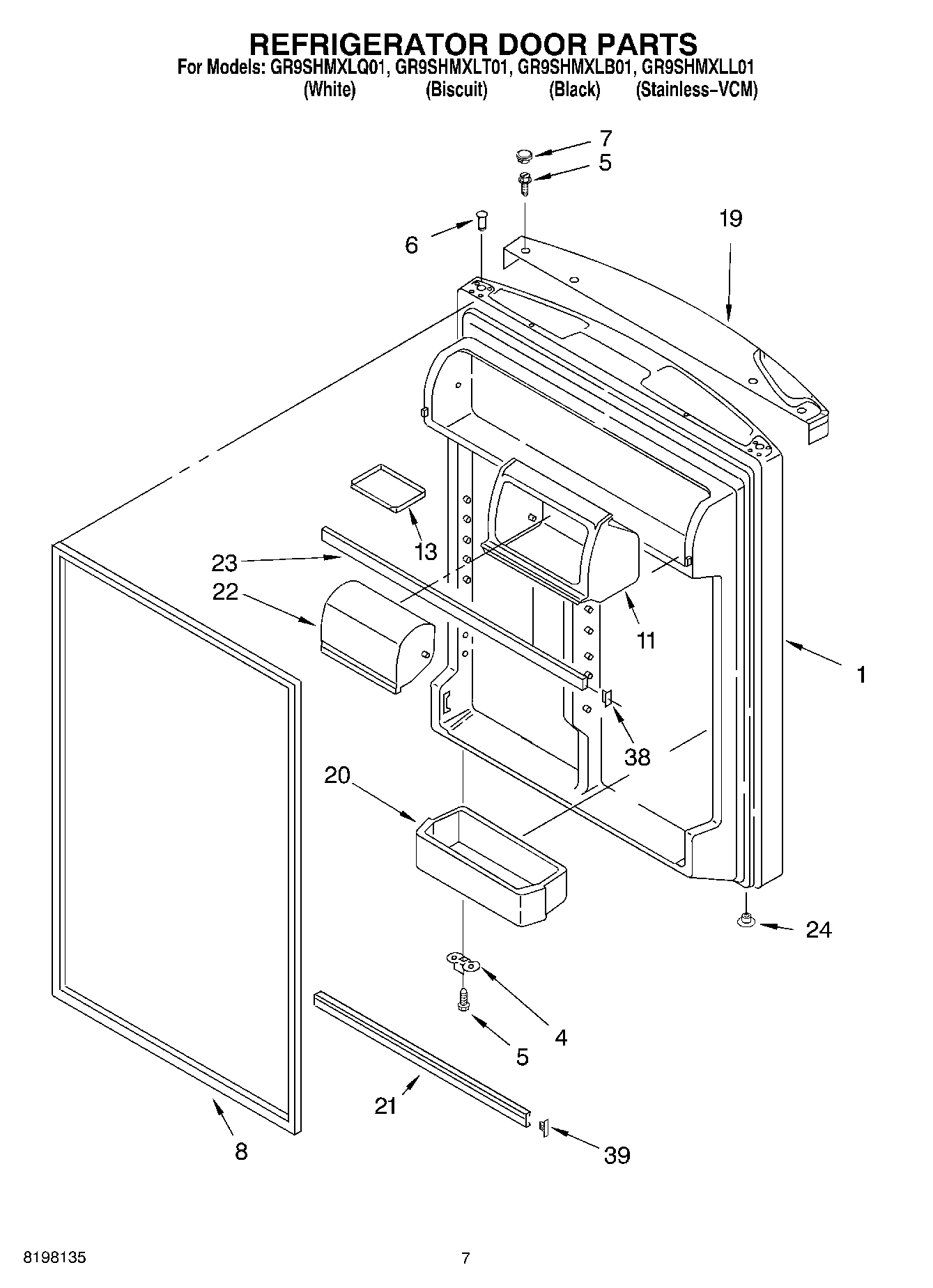

GR9SHMXLL01 04 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Illus. 8 & 12) (White)
1Refrigerator Door (Includes Illus. 8 & 12) (Black)
1REFRIGERATOR DOOR (INCLUDES LLLUS. 8 & 12) (STAINLESS VCM)
1Refrigerator Door (Includes 6 & 8) (Biscuit)
4W11745278 Whirlpool Bracket
5WP681249 Whirlpool Screw Assembly
6WP2183003 Whirlpool Thimble
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212649 Whirlpool Refrigerator Button Plug
82177305 Whirlpool Refrigerator Door FIP Gasket
82159057 Whirlpool Refrigerator Fresh Food Door Gasket
11Housing Compartment
13Tray, Door
19Endcap, Handle (Black)
19Handle (Biscuit)
19Endcap, Handle (White)
20Bin, Door (3)
21WPW10421484 Whirlpool Refrigerator Door Trim
22DOOR-COMP
23WP2159312 Whirlpool Refrigerator Door Trim
24HOLE PLUG, ENDCAP (BLACK)
24HOLE PLUG, ENDCAP (WHITE)
24Hole Plug, Handle (Biscuit)
38Endcap, Door Trim
39WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
