GR9SHMXLQ00 05 – UNIT

GR9SHMXLQ00 05 – UNIT

Written by

in

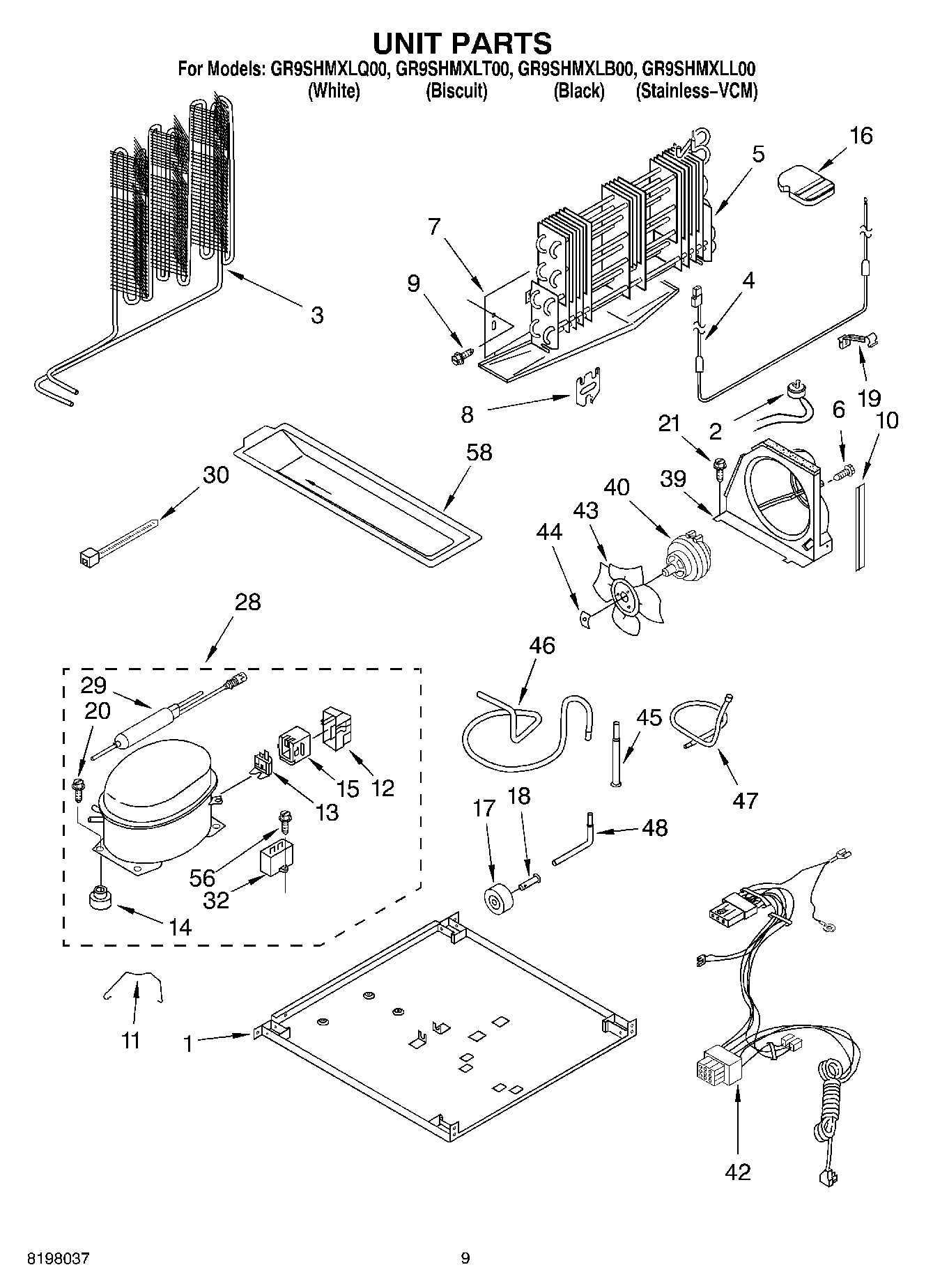

GR9SHMXLQ00 05 – UNIT

Products

PositionProduct
1Plate, Unit Mounting
2WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
3WP2214960 Whirlpool Refrigerator Condenser
4WP2315531 Whirlpool Refrigerator Heater
5Evaporator Assy.
6WP8281196 Whirlpool Screw
7Drain Pan
8Bracket, Heater
9WP489478 Whirlpool Refrigerator Screw
10Extension, Air Baffle
11Strap
12WP2162358 Whirlpool Refrigerator Terminal Cover
134387913 Whirlpool Refrigerator Primary Overload Relay
14WP4387558 Whirlpool Refrigerator Compressor Grommet
14876811 Whirlpool Grommet
158201647 Whirlpool Refrigerator Start Device
16Support Block
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
213400518 Whirlpool Oven Foot Mount Screw
28W10309988 Whirlpool Refrigerator Compressor
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32WPW10662129 Whirlpool Refrigerator Run Capacitor
32WP4387764 Whirlpool Run Capacitor
39Air Baffle
40W10822259 Whirlpool Refrigerator Condenser Fan Motor
42Wire Assy. Unit
43Blade, Fan
44WP486692 Whirlpool Refrigerator Nut
45Tube, Transition
462205533 Whirlpool Refrigerator Tube
472214924 Whirlpool Refrigerator Tube
482154109 Whirlpool Refrigerator Tube
56WP489128 Whirlpool Refrigerator Screw
58VALVE, ACCESS (5/8“)
58876764 Whirlpool Refrigerator Primary Valve
58VALVE, ACCESS (1/2“)
58978026 Whirlpool Refrigerator Primary Valve
58978030 Whirlpool Refrigerator Valve
58Evaporator Tray
58WP978025 Whirlpool Refrigerator Valve
58978027 Whirlpool Refrigerator Primary Valve
