GRBN2012AF 13 – SYSTEM

GRBN2012AF 13 – SYSTEM

Written by

in

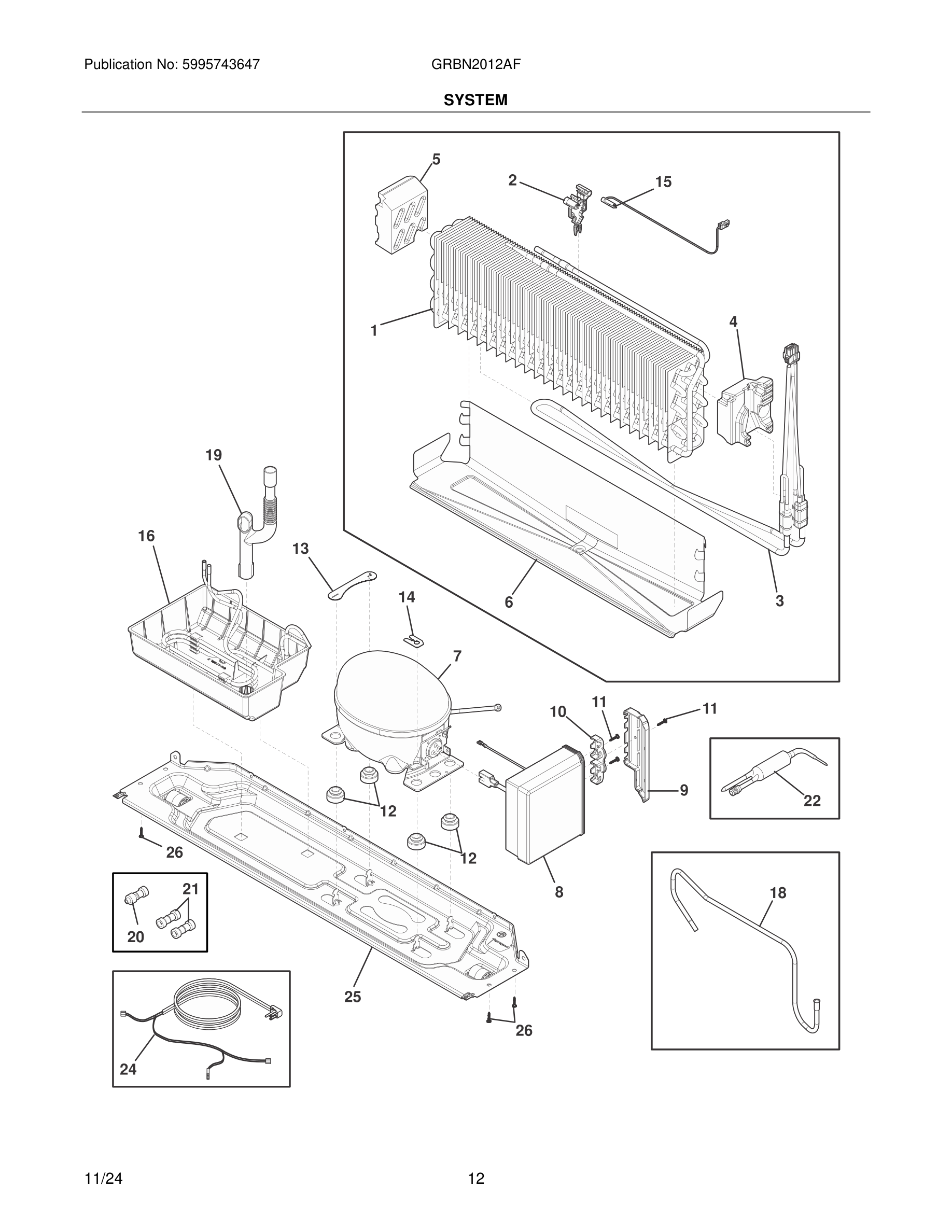

GRBN2012AF 13 – SYSTEM

Products

PositionProduct
*5304523032 Frigidaire Refrigerator Screw
*811949503 Frigidaire Screw
15304536686 Frigidaire Evaporator
25304536687 Frigidaire Clip
35304536688 Frigidaire Heater
45304536689 Frigidaire Support
55304536690 Frigidaire Support
65304536691 Frigidaire Trough
7#5304536694 Frigidaire Compressor
8#5304536695 Frigidaire Pc Board
9Cover,flex drive ,side ,compressor
10Clamp,flex drive ,cable
11SCREW
12811978901 Frigidaire Refrigerator Grommet
13Clamp,compressor ,2 hole
14CLAMP, COMPRESSOR, SINGLE HOLE
15#5303918851 Frigidaire Refrigerator Thermostat Kit
165304536696 Frigidaire Drain Pan
185304536697 Frigidaire Tube
195304536698 Frigidaire Tube
20#LOCK RING, DRIER
21#L13000584 Frigidaire Lokring
22A19676501 Frigidaire Refrigerator Drier Filter
24#5304536756 Frigidaire Cord
255304536679 Frigidaire Base Assembly
26808199001 Frigidaire Screw
