GRCS13XHHBH1 ROOM AIR CONDITIONER

Products

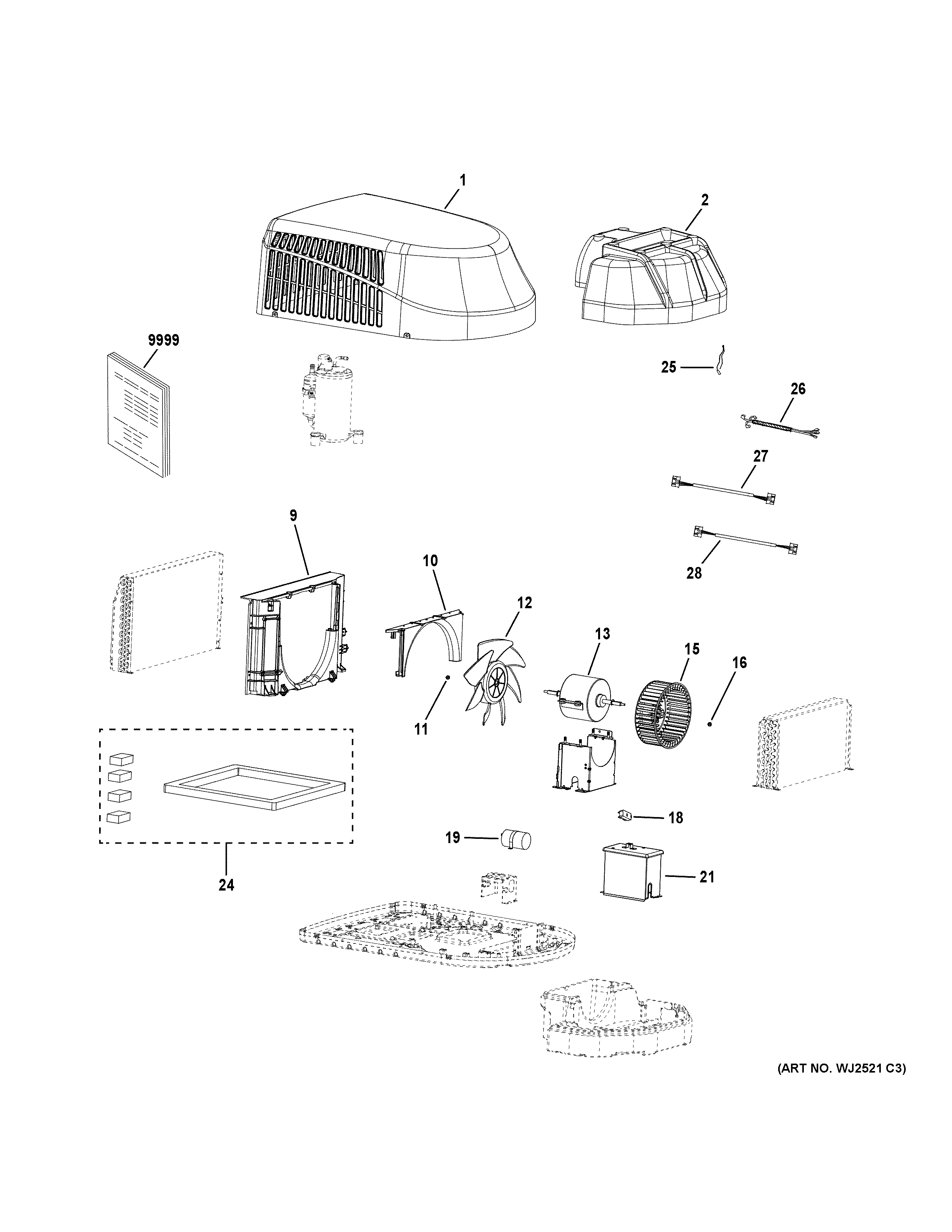

PositionProduct
1OUTDOOR BLACK SHROUD COVER
2TOP BLOWER COVER
9OUTDOOR FAN SHROUD
10REAR BAFFLE COVER
11WP01X33257 GE M6 Flan Nut
12OUTDOOR FAN BLADE
13FAN MOTOR
15INDOOR BLOWER
16WP01X33258 GE Indoor Fan Nut
18WJ26X23823 GE Terminal Block
19WJ20X21774 GE Air Conditioner Capacitor
21CONTROL BOX ASSY
24WP60X33255 GE Gasket Roof & Foam Pad Assembly 4 Pieces
25INDOOR COIL SENSOR
26COMPRESSOR HARNESS
27MAIN HARNESS
28HARNESS
9999PRINTED AND ONLINEOWNERS AND INSTALL
