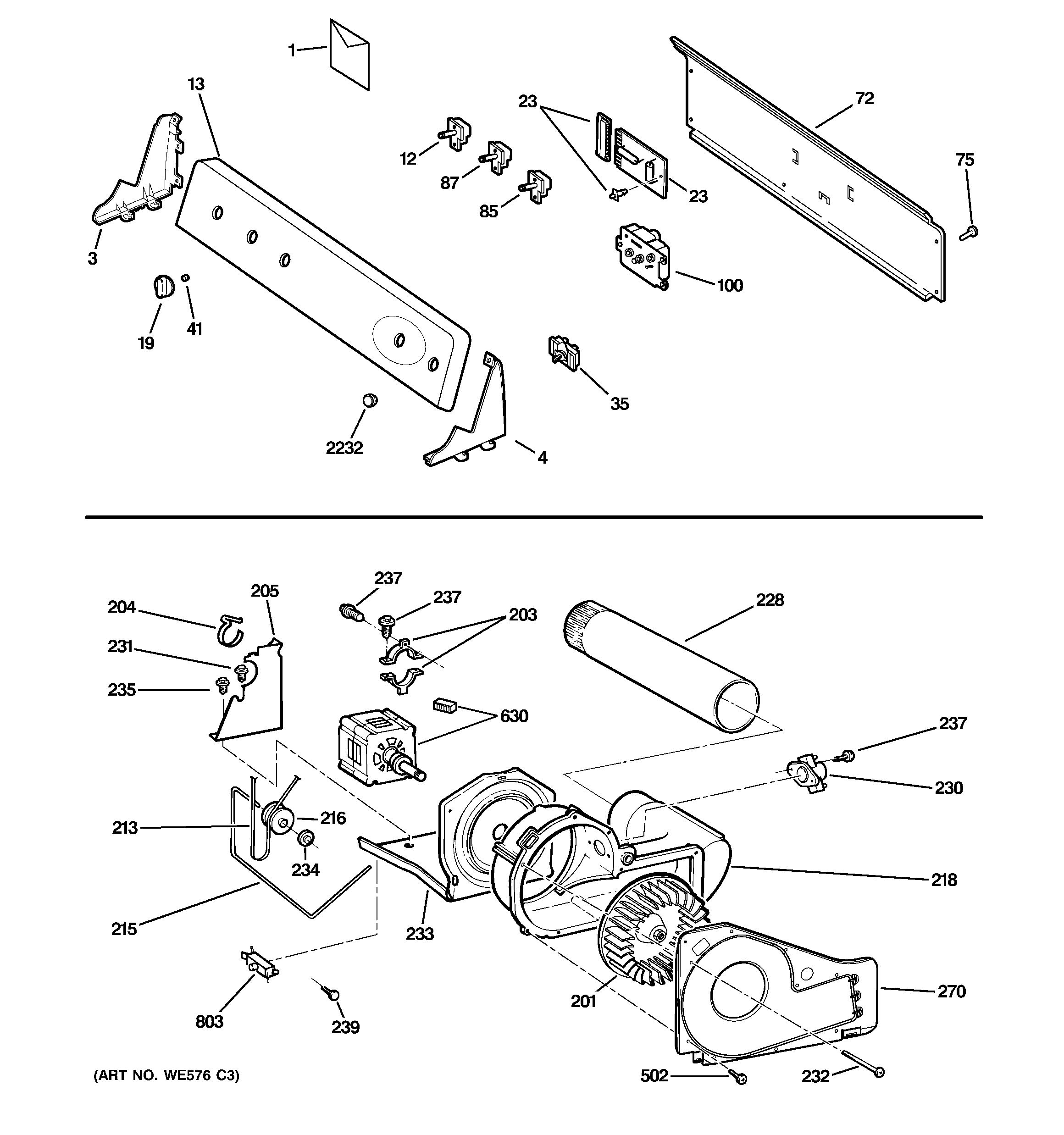

GRDN510EM0WS BACKSPLASH, BLOWER & MOTOR ASSEMBLY

GRDN510EM0WS BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

GRDN510EM0WS BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1GEN 31-16224
1GEN WE6M666
1MINI MANUAL
3WE49X22294 GE Endcap Service Kit
4WE19X20467 GE Endcap Left Hand
12GEN WE4M368
13GEN WE19M1684
19WH01X10462 GE Washer Dryer Gray Knob and Clip Assembly
23WE1M418 GE PC Support
23GEN WE1M419
23PC BOARD
35PUSH TO START SWITCH
41GEN WE01X0980?
72WE19M1481 GE Rear Panel
75WE2M173 GE Screw
85WE4M399 GE Rocker Switch
87WE4M406 GE Heat Selector Switch
100WE4M527 GE Washer Control Timer
201BLOWER WHEEL
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE2M200 GE Ground Screw
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218WE09X27636 GE Exhaust Blower Gasket
218BLOWER HOUSING
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233MOTOR PLATE (E-COAT)
234GEN WE2M96?
235WE2X263D GE Screw Package 12 C92
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
270GEN WE1M890
502WE2M174 GE Screw #10
630WE17X22217 GE Dryer Drive Motor with Pulley
630GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
2232WE1M659 GE Dryer Push-to-Start Button
