GRF400PV1SS CONTROL PANEL & COOKTOP

GRF400PV1SS CONTROL PANEL & COOKTOP

Written by

in

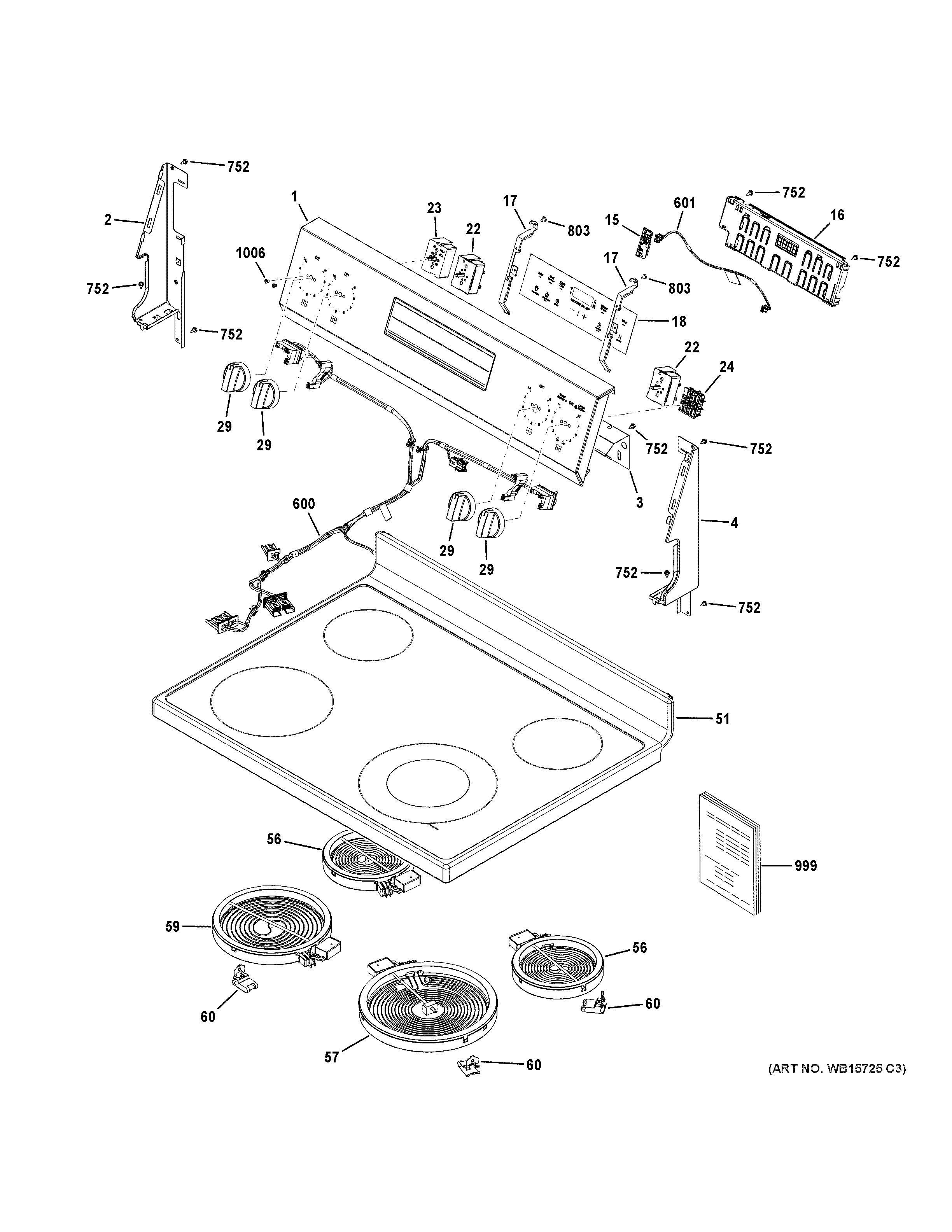

GRF400PV1SS CONTROL PANEL & COOKTOP

Products

PositionProduct
1CONTROL PANEL-STAINLESS
2LH END PLATE- BLACK
3HEAT SHIELD
4RH END PLATE-BLACK
15WB27X45808 GE Wi-Fi Bluetooth Combo Board
16OBC1 CONTROL (FLASHED)
17CONTROL BRACKET
18OVERLAY
22WB24T10022 GE Oven Infinite Switch
23WB24T10146 GE Oven Surface Element Control
24WB24X25013 GE Oven Control Infinite Switch
29KNOB
51MAINTOP
56WB30X47331 GE 5.5-Inch Radiant Element
57RADIANT ELEMENT 9 IN DUAL
598 IN RADIANT ELEMENT
60RETAINER CLIP
600MAINTOP HARNESS
601WIFI HARNESS
752WH2X930 GE Screw
803WB01X48946 GE Screw 8-18 AB Trt-15 3/8"
999PM OWNERS MANUAL
999PM MINI MANUAL AND WIRING
999PM INSTALL INSTRUCTIONS
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
