GRF400SV1WW CONTROL PANEL & COOKTOP

GRF400SV1WW CONTROL PANEL & COOKTOP

Written by

in

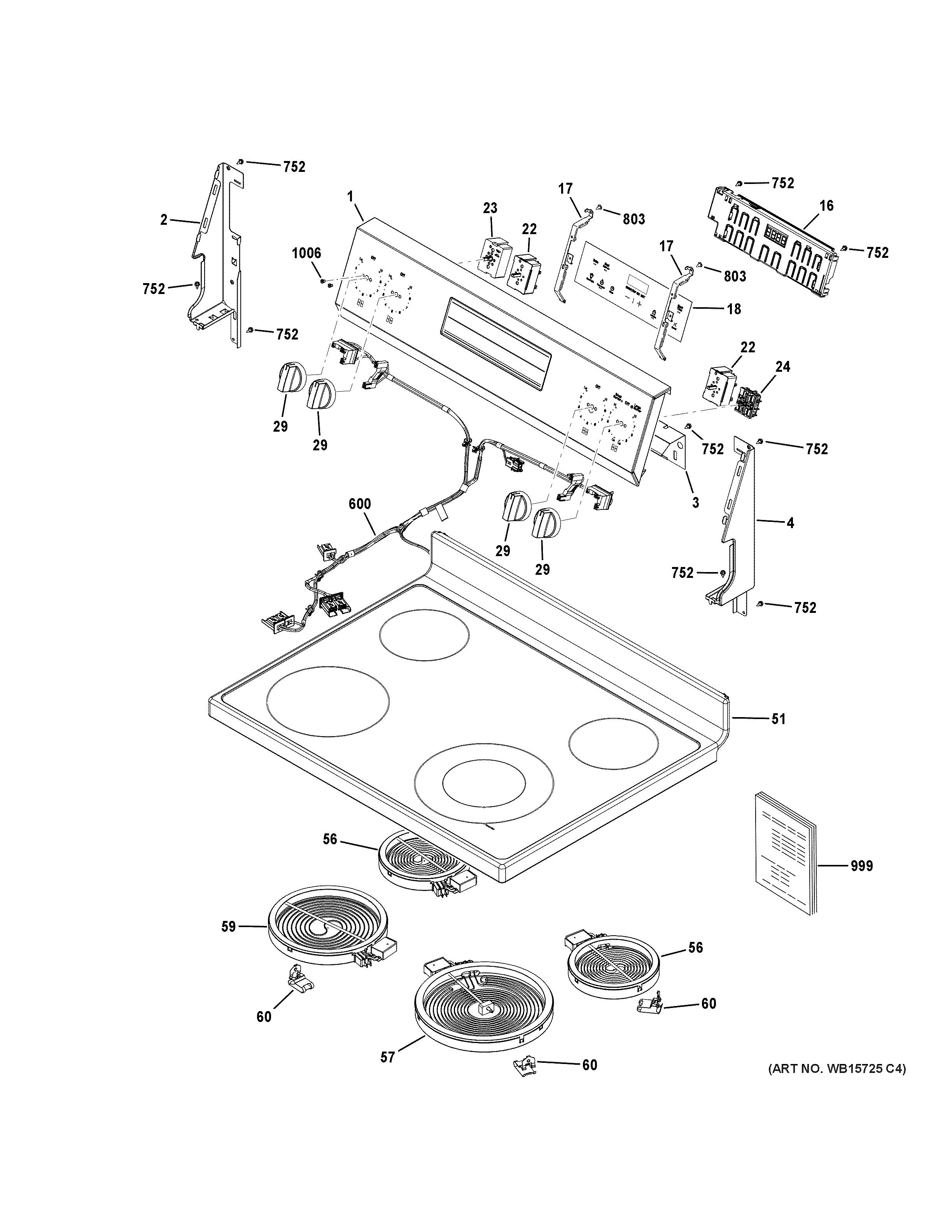

GRF400SV1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1CONTROL PANEL-WHITE
2LH END PLATE- WHITE
3HEAT SHIELD
4RH END PLATE- WHITE
16OBC1 CONTROL (FLASHED)
17CONTROL BRACKET
18OVERLAY
22WB24T10022 GE Oven Infinite Switch
23WB24T10146 GE Oven Surface Element Control
24WB24X25013 GE Oven Control Infinite Switch
29KNOB
51MAINTOP
56WB30X47331 GE 5.5-Inch Radiant Element
57RADIANT ELEMENT 9 IN DUAL
598 IN RADIANT ELEMENT
60RETAINER CLIP
600MAINTOP HARNESS
752WH2X930 GE Screw
803WB01X48946 GE Screw 8-18 AB Trt-15 3/8"
999PM MINI MANUAL AND WIRING
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
