GRF500PV1WW CONTROL PANEL & COOKTOP

GRF500PV1WW CONTROL PANEL & COOKTOP

Written by

in

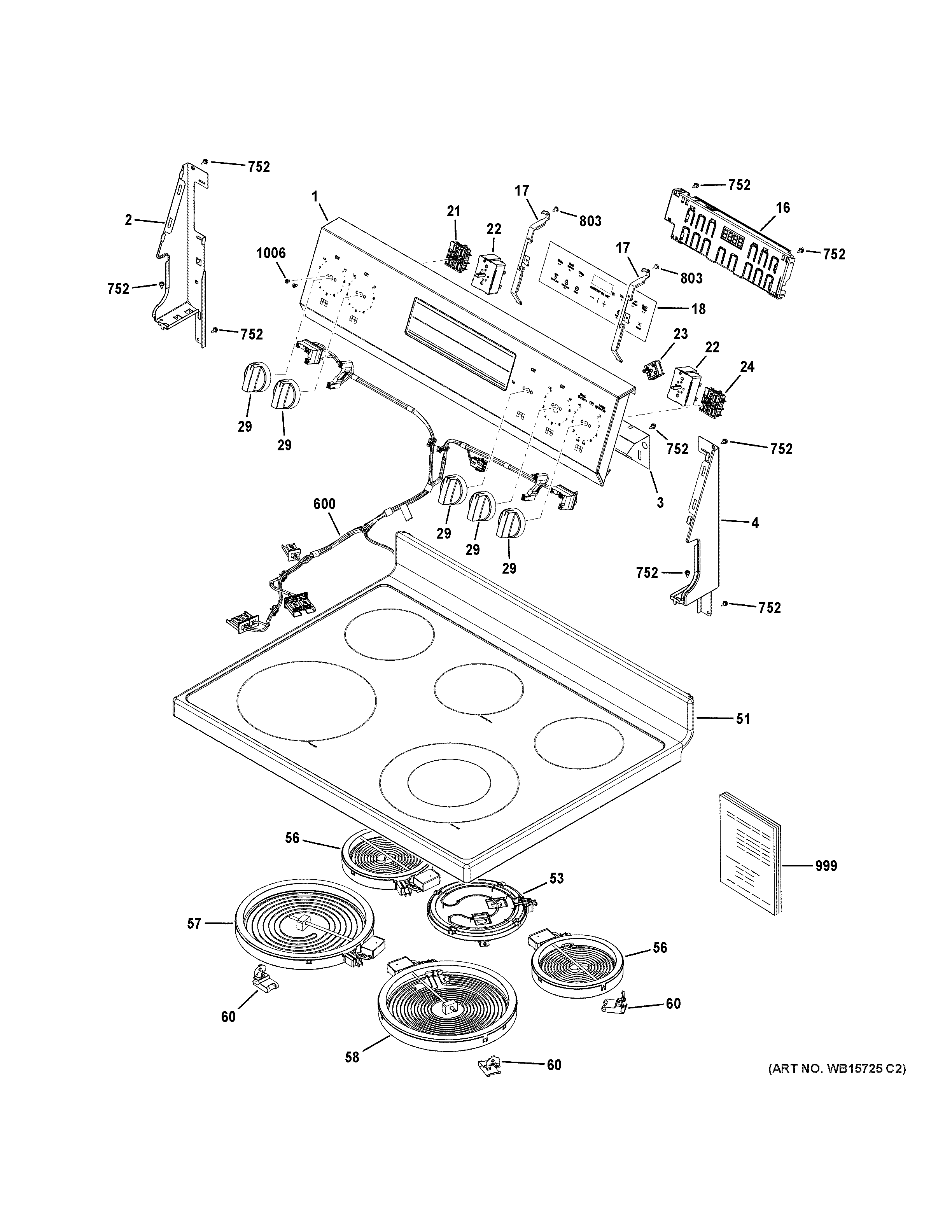

GRF500PV1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1CONTROL PANEL-WHITE
2LH END PLATE- WHITE
3HEAT SHIELD
4RH END PLATE- WHITE
16OBC1 CONTROL (FLASHED)
17CONTROL BRACKET
18OVERLAY
21WB24X37345 GE Infinite Control Switch
22WB24T10022 GE Oven Infinite Switch
23WB24X40051 GE Rotary Switch
24WB24X25013 GE Oven Control Infinite Switch
29KNOB
51MAINTOP
53WARMER ELEMENT
56WB30X47331 GE 5.5-Inch Radiant Element
579 IN RADIANT ELEMENT
58RADIANT ELEMENT 9 IN DUAL
60RETAINER CLIP
600MAINTOP HARNESS
752WH2X930 GE Screw
803WB01X48946 GE Screw 8-18 AB Trt-15 3/8"
999PM INSTALL INSTRUCTIONS
999PM MINI MANUAL AND WIRING
999PM OWNERS MANUAL
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
