GRF600AV1WW CONTROL PANEL & COOKTOP

GRF600AV1WW CONTROL PANEL & COOKTOP

Written by

in

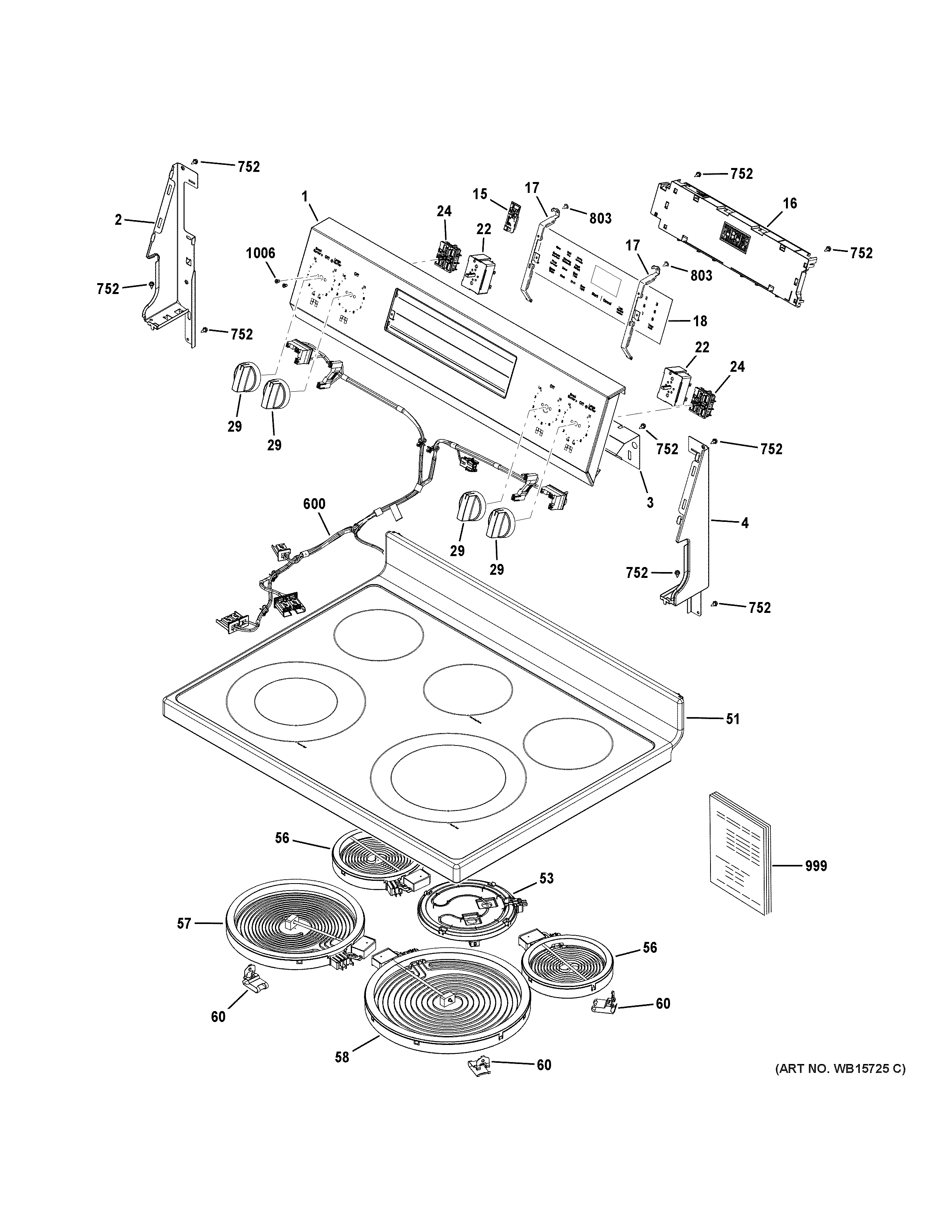

GRF600AV1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1CONTROL PANEL-WHITE
2LH END PLATE- WHITE
3HEAT SHIELD
4RH END PLATE- WHITE
15WB27X45808 GE Wi-Fi Bluetooth Combo Board
16OBC2 CONTROL – FLASHED
17CONTROL BRACKET
18OVERLAY
22WB24T10022 GE Oven Infinite Switch
24WB24X25013 GE Oven Control Infinite Switch
29KNOB
51WB62X47096 GE Maintop
53WARMER ELEMENT
56WB30X47331 GE 5.5-Inch Radiant Element
57RADIANT ELEMENT 9 IN DUAL
58WB30X47328 GE 12-Inch Dual Radiant Element
60RETAINER CLIP
600MAINTOP HARNESS
752WH2X930 GE Screw
803WB01X48946 GE Screw 8-18 AB Trt-15 3/8"
999PM INSTALL INSTRUCTIONS
999PM MINI MANUAL AND WIRING
999PM OWNERS MANUAL
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
