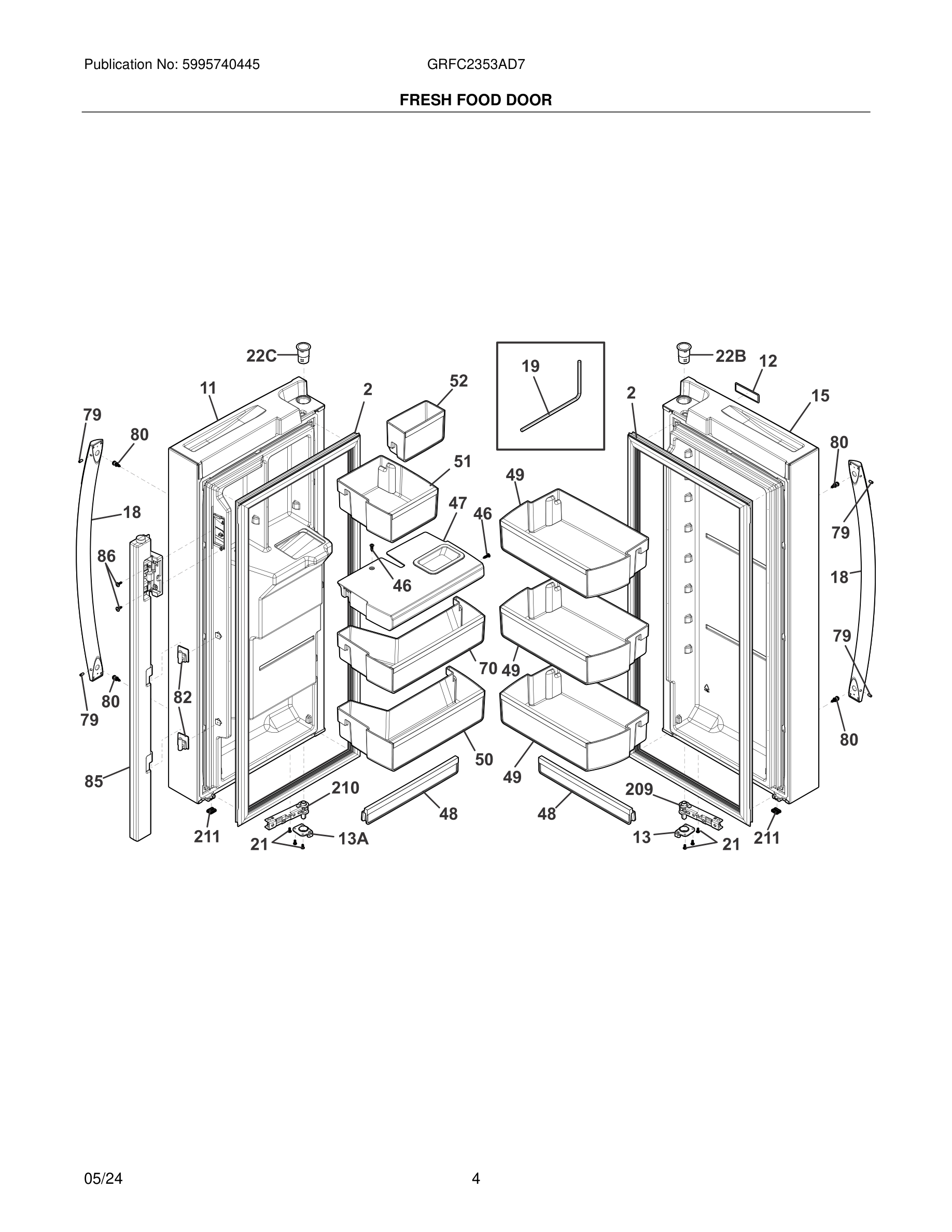

GRFC2353AD7 05 – FRESH FOOD DOOR

GRFC2353AD7 05 – FRESH FOOD DOOR

Written by

in

GRFC2353AD7 05 – FRESH FOOD DOOR

Products

PositionProduct
*241806601 Frigidaire Refrigerator Water Connector
2#GASKET-DR
11#5304530762 Frigidaire Refrigerator Door Assembly
11*#5304530940 Frigidaire Refrigerator Harness
125304510904 Frigidaire Refrigerator Nameplate
135304508039 Frigidaire Refrigerator Door Stop
13A5304508038 Frigidaire Refrigerator Door Stop
155304530761 Frigidaire Refrigerator Door Assembly
185304527112 Frigidaire Refrigerator Handle
195304508270 Frigidaire Wrench
21241953902 Frigidaire Refrigerator Screw
22B241760403 Frigidaire Refrigerator Bearing
22C241760401 Frigidaire Refrigerator Bearing
46240383413 Frigidaire Screw Assembly
475304536564 Frigidaire Cover Bracket
48DOOR LOWER BIN (ST
495304536259 Frigidaire Standard Door Bin
505304536257 Frigidaire Bin Door
51LH – DOOR DISPENSER GALLON BIN
525304530958 Frigidaire Door Bin
705304536258 Frigidaire Door Bin
79218755405 Frigidaire Refrigerator Screw Set
80218755504 Frigidaire Refrigerator Shoulder Screw
82241779401 Frigidaire Refrigerator Flipper Hinge Mullion
85#5304530855 Frigidaire Refrigerator Mullion Assembly
85#5304530856 Frigidaire Assembly-Mullion
86*5304508776 Frigidaire Washer Lock
86242015001 Frigidaire Refrigerator Screw
2095304526201 Frigidaire Refrigerator Right Hand Door Closer Without
2105304526202 Frigidaire Refrigerator Left Hand Door Closer
2115304508077 Frigidaire Refrigerator Bumper
