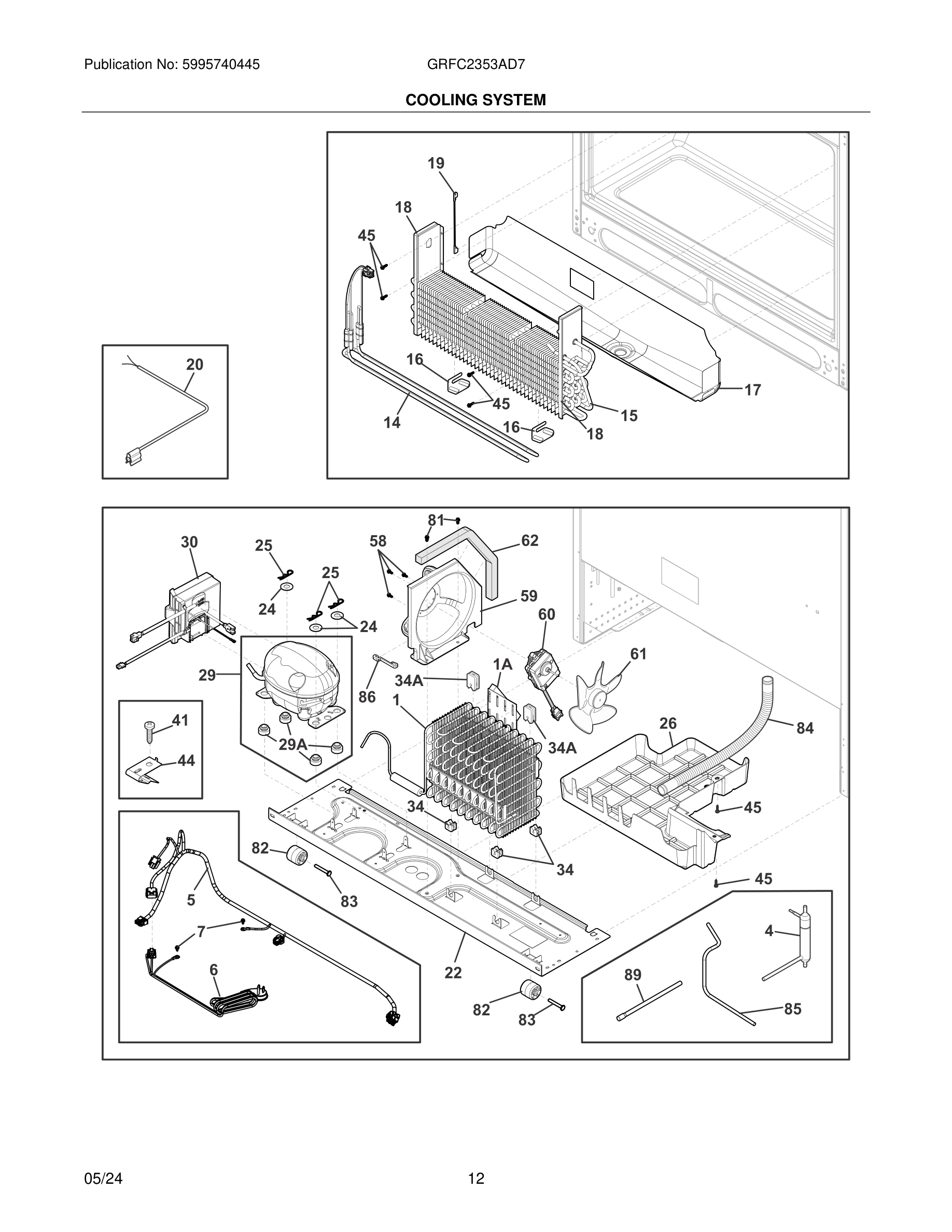

GRFC2353AD7 13 – COOLING SYSTEM

Products

Position	Product
*	241953902 Frigidaire Refrigerator Screw
*	5304527119 Frigidaire Screw
*	218515401 Frigidaire Refrigerator Clip
*	5304453707 Frigidaire Oven Screw
*	5303307980 Frigidaire Oven Screw
1A	241862904 Frigidaire Condenser Assembly
4#	5303305677 Frigidaire Replacement Filter Dryer Filters
5#	5304530726 Frigidaire Refrigerator Harness
6#	241516904 Frigidaire Refrigerator Service Cord
7	218709101 Frigidaire Refrigerator Handle Mounting Screw
14#	5304531011 Frigidaire Refrigerator Heater
15#	242044506 Frigidaire Refrigerator Evaporator
16	BRACKET, DEFROST HEATER
17	241791201 Frigidaire Refrigerator Trough-Drain
18	GASKET, CLOSED CELL
19#	241510904 Frigidaire Refrigerator Dispenser Harness
20#	5303918645 Frigidaire Refrigerator Thermistor Kit
22	5304530908 Frigidaire Base Assembly
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037702 Frigidaire Refrigerator Spring Clip
26	241920608 Frigidaire PAN-DEFROST
29#	5304530707 Frigidaire Compressor
29A	811978901 Frigidaire Refrigerator Grommet
30#	5304530678 Frigidaire Refrigerator Inverter
34	241929901 Frigidaire GROMMET-COND MTG
34A	241929902 Frigidaire Condenser Mounting Grommet
41	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
44	5304456288 Frigidaire Refrigerator Clamp
45	5304455650 Frigidaire Refrigerator Screw
58	240569202 Frigidaire Refrigerator Screw
59*	240346721 Frigidaire Tape
59	241946106 Frigidaire Refrigerator Shroud-Cond Fan
60#	5304531260 Frigidaire Refrigerator Motor
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
62	240346701 Frigidaire Refrigerator Foam Seal Tape
81	240359403 Frigidaire Refrigerator Fan Shroud Screw
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
84*	242036801 Frigidaire Refrigerator Plastic Clip
84	241830904 Frigidaire Refrigerator Drain Tube
85#	5304530251 Frigidaire Tube Assembly
86	240409302 Frigidaire Refrigerator Condenser Tube Spacer
89	215346903 Frigidaire Tube-Process
