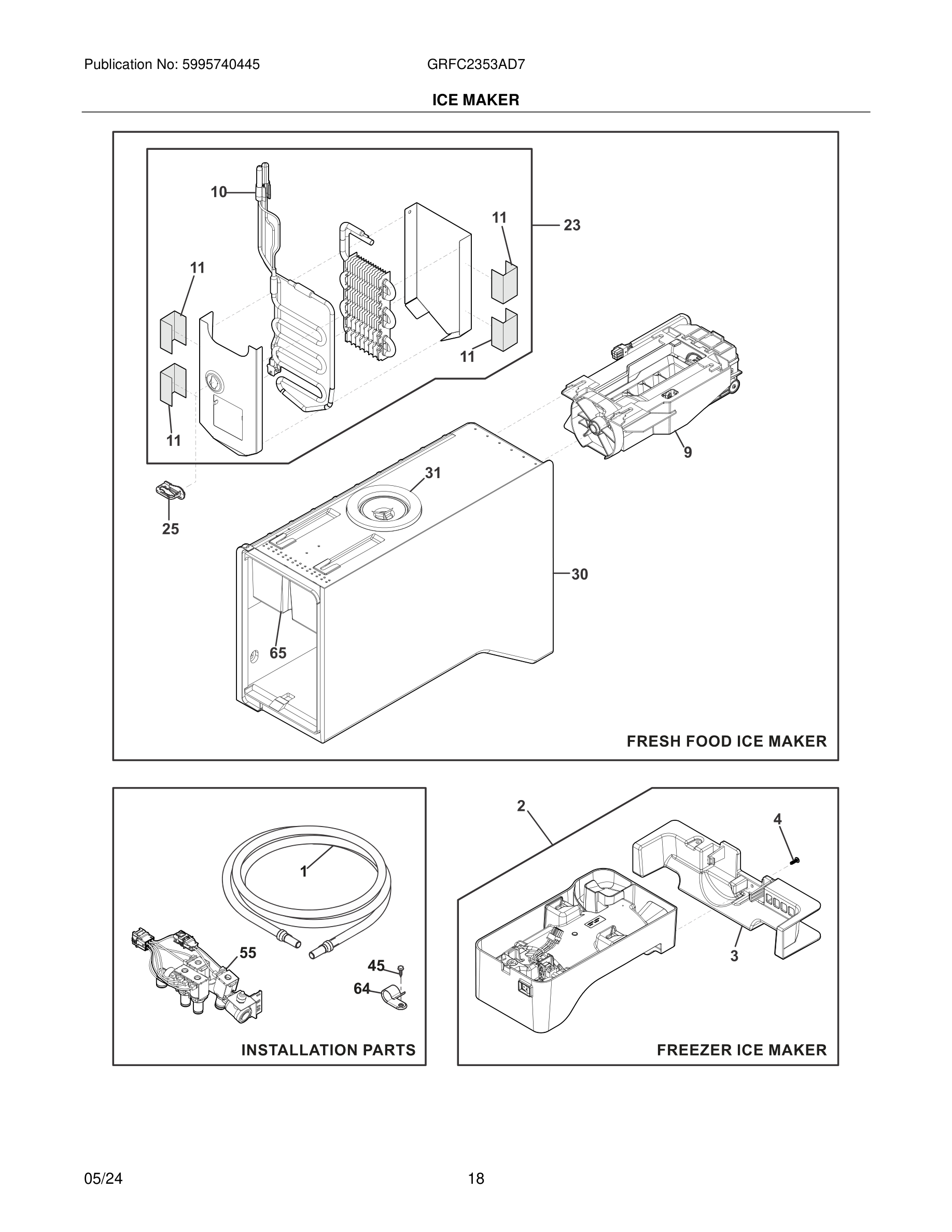

GRFC2353AD7 19 – ICE MAKER

Products

PositionProduct
*218515401 Frigidaire Refrigerator Clip
1#218976443 Frigidaire Refrigerator Tube
1*242200102 Frigidaire Refrigerator Clip
1#*5304535844 Frigidaire Click Connex Female
1*#5304535843 Frigidaire Tube Assembly
1*241806601 Frigidaire Refrigerator Water Connector
2#A21755301 Frigidaire Refrigerator Ice Maker Assembly
35304531313 Frigidaire Bracket Assembly
45304453707 Frigidaire Oven Screw
5Clip, water hose
9#243297608 Frigidaire Refrigerator Ice Maker
105304519629 Frigidaire Refrigerator Clip
10241829001 Frigidaire Refrigerator Bar Drive
115304485759 Frigidaire Refrigerator Tape
195304508066 Frigidaire Refrigerator Gasket
21C5304515677 Frigidaire Package of 4 Screws
23*#5304530732 Frigidaire Refrigerator Wiring Harness
23*#5303918645 Frigidaire Refrigerator Thermistor Kit
23#5304530680 Frigidaire Assembly Evaporator
255304508037 Frigidaire Refrigerator Connector
305304531300 Frigidaire Assembly Housing
31241512813 Frigidaire Seal Doughnut
335303918784 Frigidaire Refrigerator Air Handler Housing
43241641502 Frigidaire Refrigerator Screw
455303307980 Frigidaire Oven Screw
52*242039701 Frigidaire Refrigerator Screw
55*218709101 Frigidaire Refrigerator Handle Mounting Screw
55#VALVE,WATER,QUAD SOLENOID
55*240363602 Frigidaire Refrigerator Shoulder Screw
64240396801 Frigidaire Refrigerator Tube Clamp
65COVER, WIRING
65*241953902 Frigidaire Refrigerator Screw
