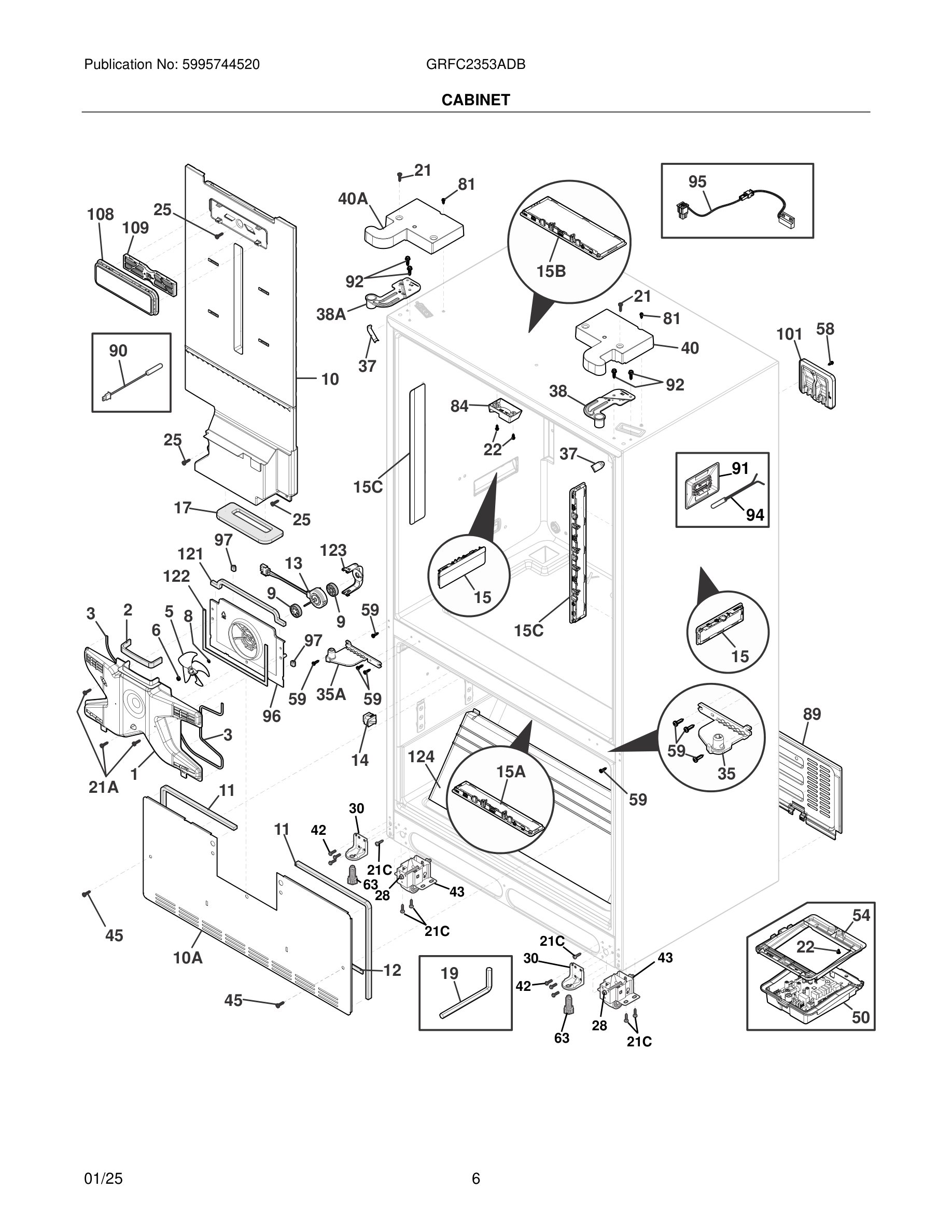

GRFC2353ADB 07 – CABINET

GRFC2353ADB 07 – CABINET

Written by

in

GRFC2353ADB 07 – CABINET

Products

Position	Product
1	COVER-FAN EVAPORATOR
2	218249809 Frigidaire Refrigerator Seal
3	241860117 Frigidaire Gasket
5	5304532795 Frigidaire Refrigerator Blade
6	5304531211 Frigidaire Spring
8	215474201 Frigidaire Refrigerator Washer
9	5304508006 Frigidaire Refrigerator Bushing
10A	241860404 Frigidaire Refrigerator Cover
10#	AIR TOWER W/ GASKET
11	241860104 Frigidaire Refrigerator Coil Cover Gasket
12	241860105 Frigidaire Refrigerator Gasket-Coil Cover
13#	MOTOR
14#	5304520495 Frigidaire Refrigerator Switch
15B#	5304530715 Frigidaire Refrigerator Assembly Light
15C#	5304530717 Frigidaire Refrigerator Light Assembly
15#	5304530711 Frigidaire Refrigerator Light Assembly
15A#	5304530713 Frigidaire Refrigerator Light Assembly
17	5304530941 Frigidaire Refrigerator Gasket
19	5304532082 Frigidaire Door Alignment Kit
21C	218252201 Frigidaire Refrigerator Screw
21	241732101 Frigidaire Refrigerator Screw
21A	242015001 Frigidaire Refrigerator Screw
22	5304455650 Frigidaire Refrigerator Screw
25	240383407 Frigidaire Refrigerator Screw
28	5304499445 Frigidaire Refrigerator Roller Assembly
30	241778702 Frigidaire Refrigerator Bracket-Anti Tip
35	5304530887 Frigidaire Refrigerator Hinge Assembly
35A	5304530888 Frigidaire Refrigerator Hinge Assembly
37	5304519617 Frigidaire Refrigerator Cabinet Corner Trim
38	5304530818 Frigidaire Refrigerator Hinge Bracket
38A	5304530819 Frigidaire Refrigerator Hinge Bracket
40A	COVER-HINGE LH DISP BLACK, 40A
40	5304535029 Frigidaire Black Right Hinge Cover
42	240578902 Frigidaire Screw Mounting Hinge
43	5304533552 Frigidaire Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
47	5304515677 Frigidaire Package of 4 Screws
50#	5304535055 Frigidaire Erf2507 Main Board
54	SUPPORT, HOUSING, MAIN BOARD
58	241853202 Frigidaire Refrigerator Screw
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
63	5304533555 Frigidaire Anti-Tip Leveler
81	134154100 Frigidaire Screw 10-32 x 0.375 Co
84	5304530886 Frigidaire Guide
84*	5304508776 Frigidaire Washer Lock
89*	241500305 Frigidaire Refrigerator Screw
89	5304520905 Frigidaire Assembly Cover Refrigerator
90*	241953902 Frigidaire Refrigerator Screw
90*	241842301 Frigidaire Refrigerator Thermistor Cap
90*	241969001 Frigidaire Refrigerator Cap
90	240597220 Frigidaire Sensor
