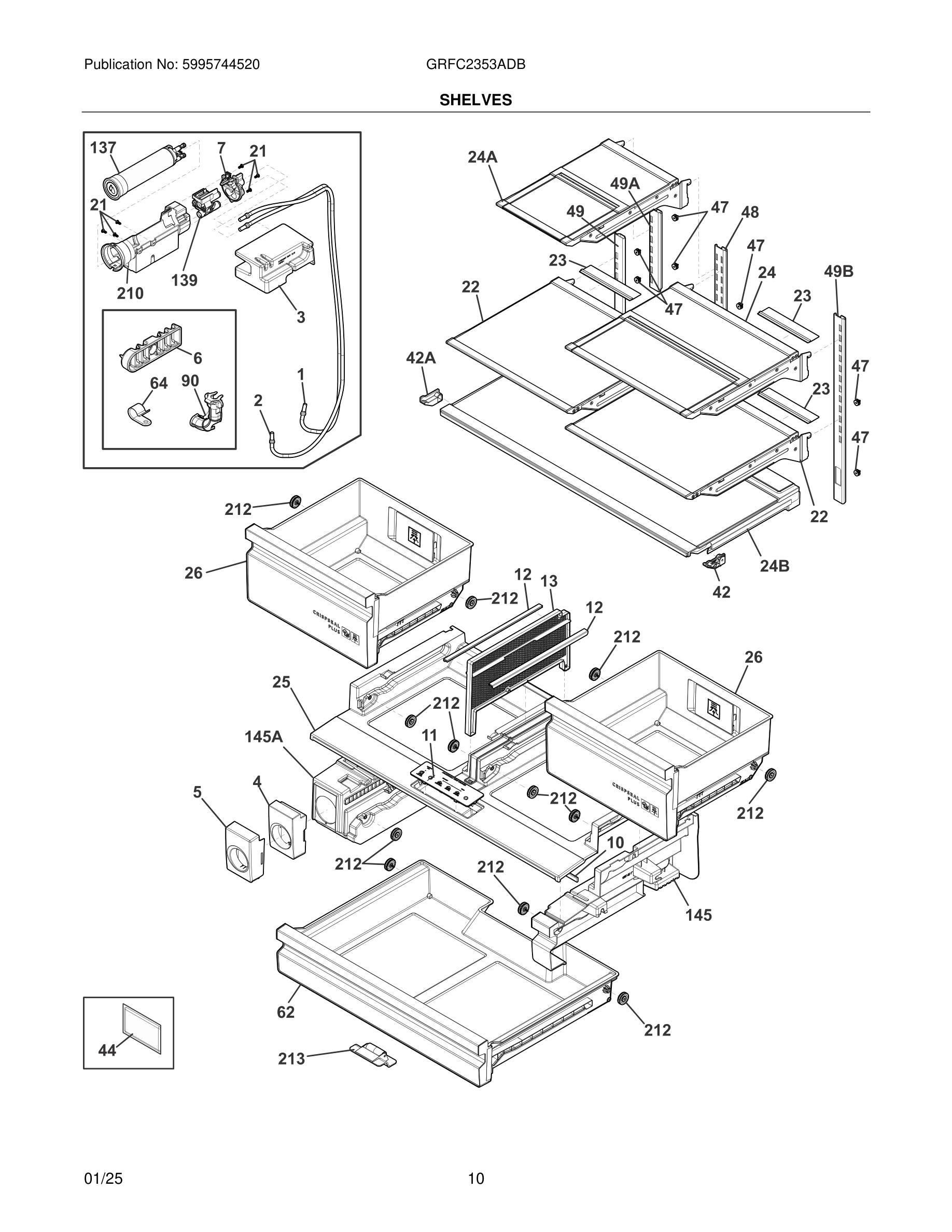

GRFC2353ADB 11 – SHELVES

GRFC2353ADB 11 – SHELVES

Written by

in

GRFC2353ADB 11 – SHELVES

Products

PositionProduct
1#242220131 Frigidaire Refrigerator Tube
2#242220132 Frigidaire Refrigerator Tube
35304531114 Frigidaire Insulation
4FASCIA-Water filter fascia
55304531172 Frigidaire Refrigerator Cover Assembly
6CLAMP, WATER TUBE
75304531689 Frigidaire Refrigerator Support
10241872205 Frigidaire BEAM
11*#5304530898 Frigidaire Harness
11#5304530920 Frigidaire User Interface,Assembly Drawer
12GASKET, CENTER SUPPORT, CRISPER
135304531044 Frigidaire Support
225304530901 Frigidaire Shelf Assembly
23BUFFER, SHELF AIR
24A5304530905 Frigidaire Shelf Assembly
24BCOVER ASMY,CRISPER ,W/GLASS
24SHELF ASSEMBLY, SLIDE UNDER, 1/2 WIDTH, W/TRIM-GLASS
25CD Deli Cover Assy
26Crisper Pan Assy – CD
42*241953902 Frigidaire Refrigerator Screw
42A5304531176 Frigidaire Refrigerator Support
425304531177 Frigidaire Support Assembly
44FRPAPKRF Frigidaire Freshness Booster Refill
475304515677 Frigidaire Package of 4 Screws
48242122102 Frigidaire Channel
49ACHANNEL-SHELF MTG. I/M
495304530658 Frigidaire Appliance Channel
49B242122303 Frigidaire CHANNEL
62DELI PAN ASMY,W/TRACKS,ROLLER
64*5303307980 Frigidaire Oven Screw
64240396801 Frigidaire Refrigerator Tube Clamp
90242200102 Frigidaire Refrigerator Clip
137FPPWFU01 Frigidaire Refrigerator PurePour Water Filter
139*5304531023 Frigidaire Harness
139#5304524817 Frigidaire Water Filter Head Manifold
1455304530994 Frigidaire Support Assembly
145AS/A Deli Support Assy LH CD
2105304530987 Frigidaire Refrigerator Housing
210*242039702 Frigidaire Refrigerator Screw
2125304508016 Frigidaire Refrigerator Roller
213242010901 Frigidaire Refrigerator Roller Assembly
