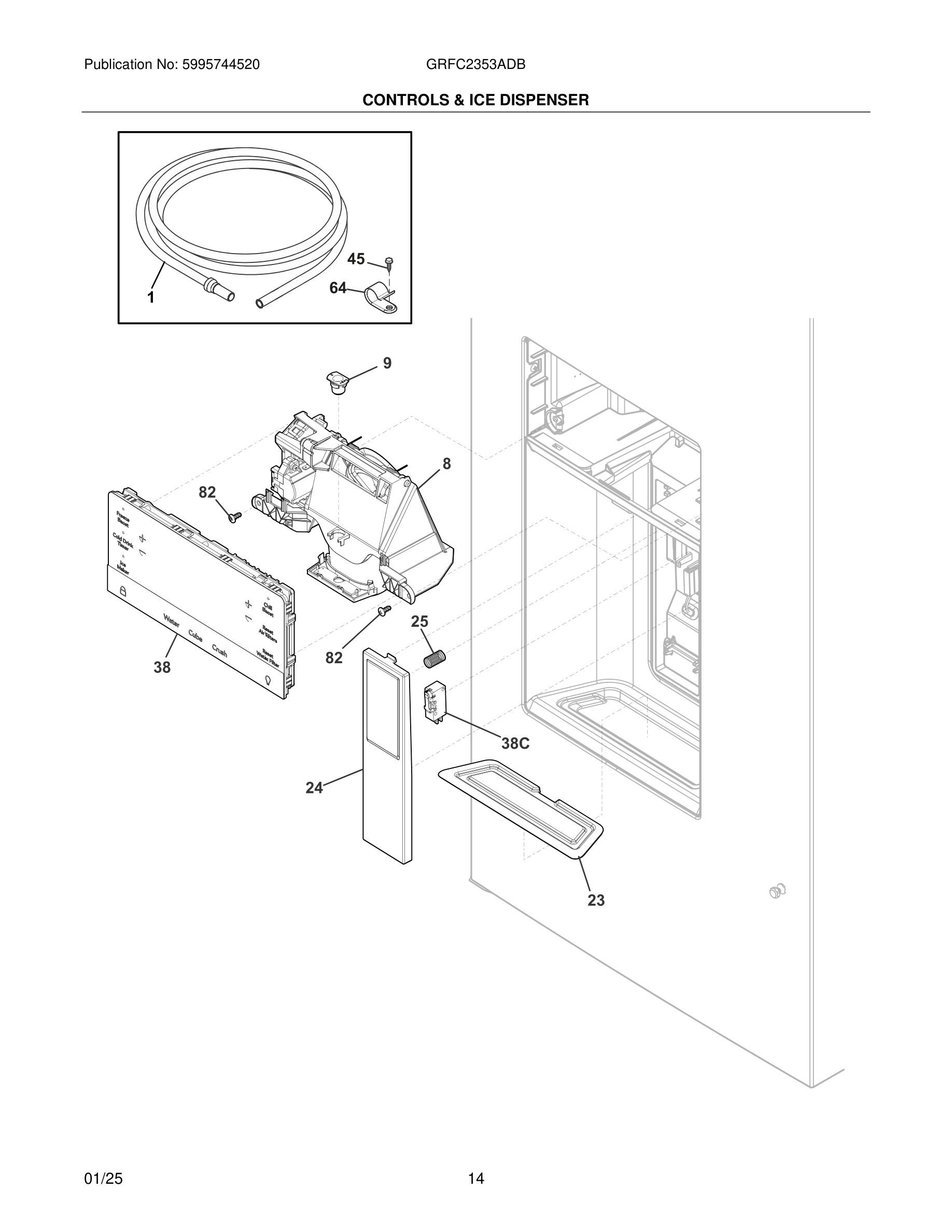

GRFC2353ADB 15 – CONTROLS & ICE DISPENSER

GRFC2353ADB 15 – CONTROLS & ICE DISPENSER

Written by

in

GRFC2353ADB 15 – CONTROLS & ICE DISPENSER

Products

PositionProduct
*#241510904 Frigidaire Refrigerator Dispenser Harness
*#5304530940 Frigidaire Refrigerator Harness
1#218976448 Frigidaire Water Line Hose
1*241806601 Frigidaire Refrigerator Water Connector
1*242200102 Frigidaire Refrigerator Clip
8#DISPLAY UI I&W BSS
9GUIDE-WATER TUBE, 9
235304527043 Frigidaire Tray
245304530690 Frigidaire Actuator
255304519199 Frigidaire Refrigerator Spring
38#5304530930 Frigidaire Refrigerator Control Assembly
38C#241870104 Frigidaire Switch
455303307980 Frigidaire Oven Screw
64240396801 Frigidaire Refrigerator Tube Clamp
82241953902 Frigidaire Refrigerator Screw
