GRFC2353AF4 09 – ICE MAKER

GRFC2353AF4 09 – ICE MAKER

Written by

in

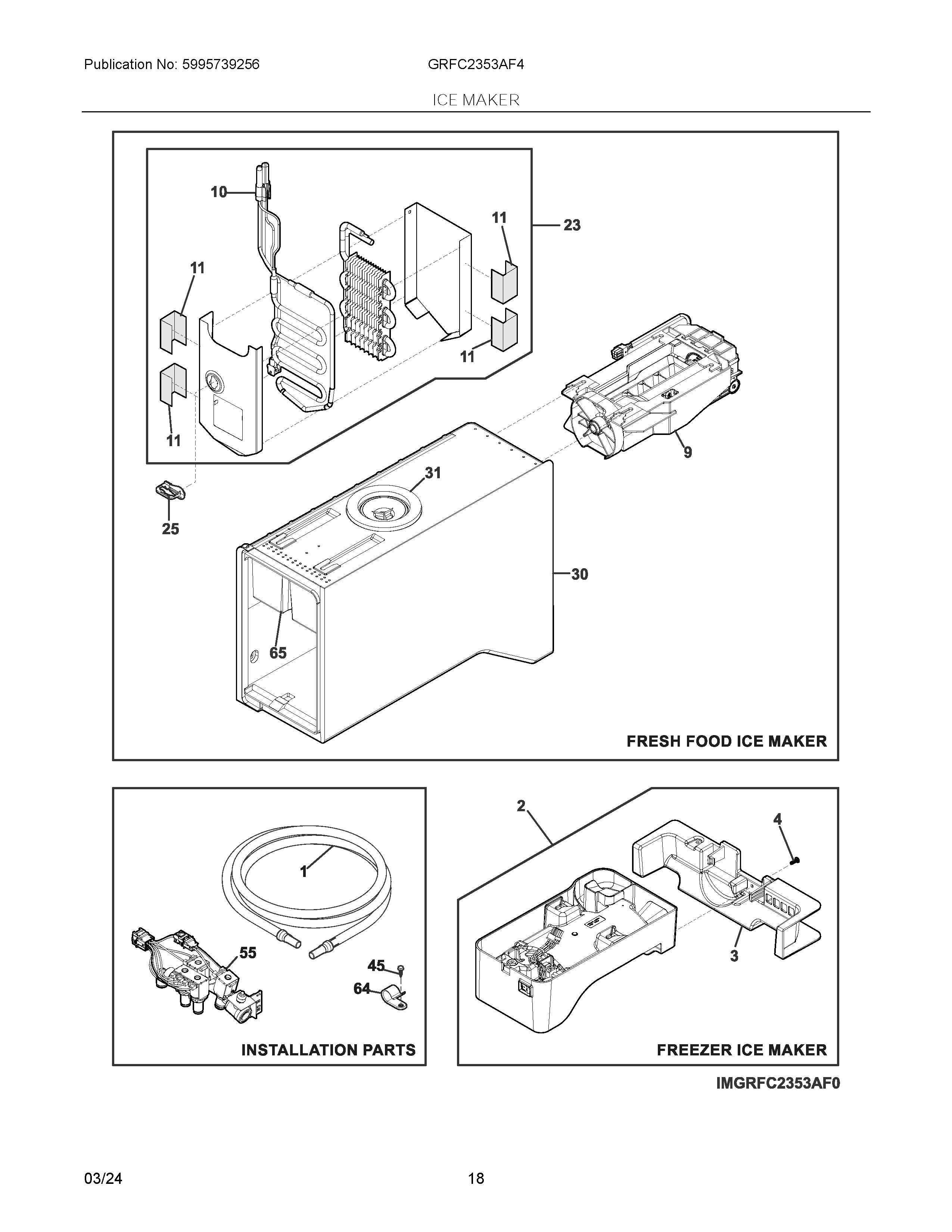

GRFC2353AF4 09 – ICE MAKER

Products

PositionProduct
NIA241953902 Frigidaire Refrigerator Screw
NIB5304530732 Frigidaire Refrigerator Wiring Harness
NIA218709101 Frigidaire Refrigerator Handle Mounting Screw
NI218515401 Frigidaire Refrigerator Clip
NID5304535844 Frigidaire Click Connex Female
NIB241503901 Frigidaire Refrigerator P-1 Tube Adapter
NIA5303918645 Frigidaire Refrigerator Thermistor Kit
NIC241806601 Frigidaire Refrigerator Water Connector
NIB240363602 Frigidaire Refrigerator Shoulder Screw
1218976443 Frigidaire Refrigerator Tube
2A21755301 Frigidaire Refrigerator Ice Maker Assembly
35304531313 Frigidaire Bracket Assembly
45304453707 Frigidaire Oven Screw
9243297608 Frigidaire Refrigerator Ice Maker
105304519629 Frigidaire Refrigerator Clip
115304485759 Frigidaire Refrigerator Tape
235304530680 Frigidaire Assembly Evaporator
255304508037 Frigidaire Refrigerator Connector
305304531300 Frigidaire Assembly Housing
31241512813 Frigidaire Seal Doughnut
455303307980 Frigidaire Oven Screw
55VALVE,WATER,QUAD SOLENOID
645304455846 Frigidaire Refrigerator Clamp
65COVER, WIRING
