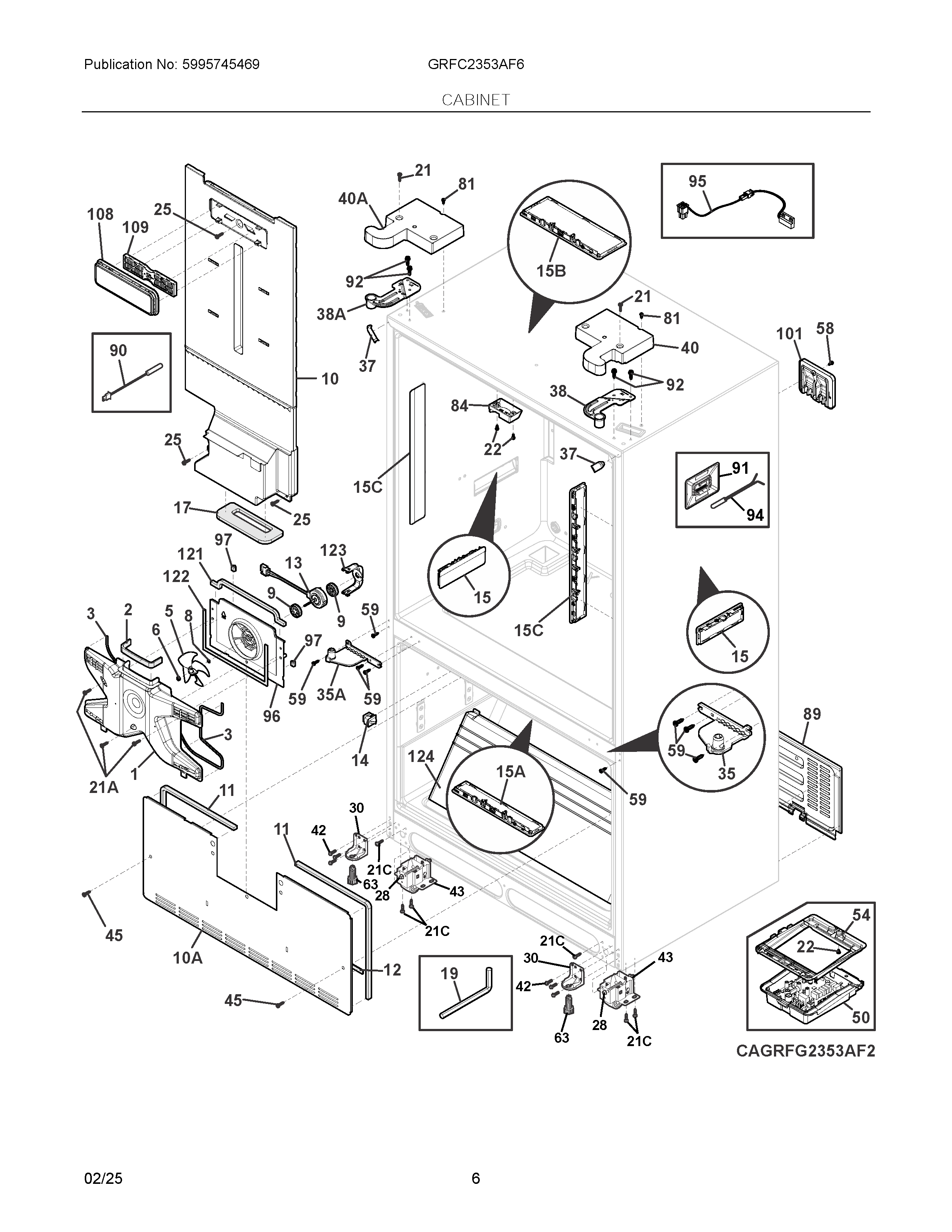

GRFC2353AF6 04 – CABINET

GRFC2353AF6 04 – CABINET

Written by

in

GRFC2353AF6 04 – CABINET

Products

PositionProduct
NIA5304508776 Frigidaire Washer Lock
NIC241969001 Frigidaire Refrigerator Cap
NIA241842301 Frigidaire Refrigerator Thermistor Cap
NI218515401 Frigidaire Refrigerator Clip
NI218709101 Frigidaire Refrigerator Handle Mounting Screw
NI242039702 Frigidaire Refrigerator Screw
NI241695906 Frigidaire Screw
NIB241953902 Frigidaire Refrigerator Screw
NIA241500305 Frigidaire Refrigerator Screw
NIAWCI 5304531189
15304530963 Frigidaire Cover
2218249809 Frigidaire Refrigerator Seal
55304532795 Frigidaire Refrigerator Blade
65304531211 Frigidaire Spring
8215474201 Frigidaire Refrigerator Washer
95304508006 Frigidaire Refrigerator Bushing
10A241860404 Frigidaire Refrigerator Cover
10AIR TOWER W/ GASKET
11241860104 Frigidaire Refrigerator Coil Cover Gasket
12241860105 Frigidaire Refrigerator Gasket-Coil Cover
13MOTOR
145304520495 Frigidaire Refrigerator Switch
15C5304530717 Frigidaire Refrigerator Light Assembly
15A5304530713 Frigidaire Refrigerator Light Assembly
155304530711 Frigidaire Refrigerator Light Assembly
15B5304530715 Frigidaire Refrigerator Assembly Light
175304530941 Frigidaire Refrigerator Gasket
195304532082 Frigidaire Door Alignment Kit
21241732101 Frigidaire Refrigerator Screw
21C5304515677 Frigidaire Package of 4 Screws
21A242015001 Frigidaire Refrigerator Screw
225304455650 Frigidaire Refrigerator Screw
25240383407 Frigidaire Refrigerator Screw
285304499445 Frigidaire Refrigerator Roller Assembly
30241778702 Frigidaire Refrigerator Bracket-Anti Tip
35A5304530888 Frigidaire Refrigerator Hinge Assembly
355304530887 Frigidaire Refrigerator Hinge Assembly
375304519618 Frigidaire Refrigerator Cabinet Corner Trim
385304530818 Frigidaire Refrigerator Hinge Bracket
38A5304530819 Frigidaire Refrigerator Hinge Bracket
40A5304535025 Frigidaire Cover-Hinge Lh Disp
405304534834 Frigidaire Cover
42240578902 Frigidaire Screw Mounting Hinge
435304533552 Frigidaire Roller Assembly
45241500303 Frigidaire Refrigerator Screw
505304535055 Frigidaire Erf2507 Main Board
54SUPPORT, HOUSING, MAIN BOARD
58241853202 Frigidaire Refrigerator Screw
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
635304533555 Frigidaire Anti-Tip Leveler
81134154100 Frigidaire Screw 10-32 x 0.375 Co
845304530886 Frigidaire Guide
895304520905 Frigidaire Assembly Cover Refrigerator
90240597220 Frigidaire Sensor
915304508041 Frigidaire Refrigerator Cover
92241710601 Frigidaire Refrigerator Screw
935304533035 Frigidaire Light Switch Assembly
945303918775 Frigidaire Refrigerator Thermistor
955304531013 Frigidaire Refrigerator Harness
96242204604 Frigidaire Shroud
97241860110 Frigidaire Refrigerator Gasket-Coil Cover
101COVER, WATER TUBE
1085304531201 Frigidaire Refrigerator Cover
1095304531207 Frigidaire Air Filter Assembly
121241860103 Frigidaire Refrigerator Gasket-Evaporator
122241860117 Frigidaire Gasket
1235304508007 Frigidaire Refrigerator Bracket
124242006903 Frigidaire Refrigerator Air Duct
