GRFC2353AFC 19 – ICE MAKER

GRFC2353AFC 19 – ICE MAKER

Written by

in

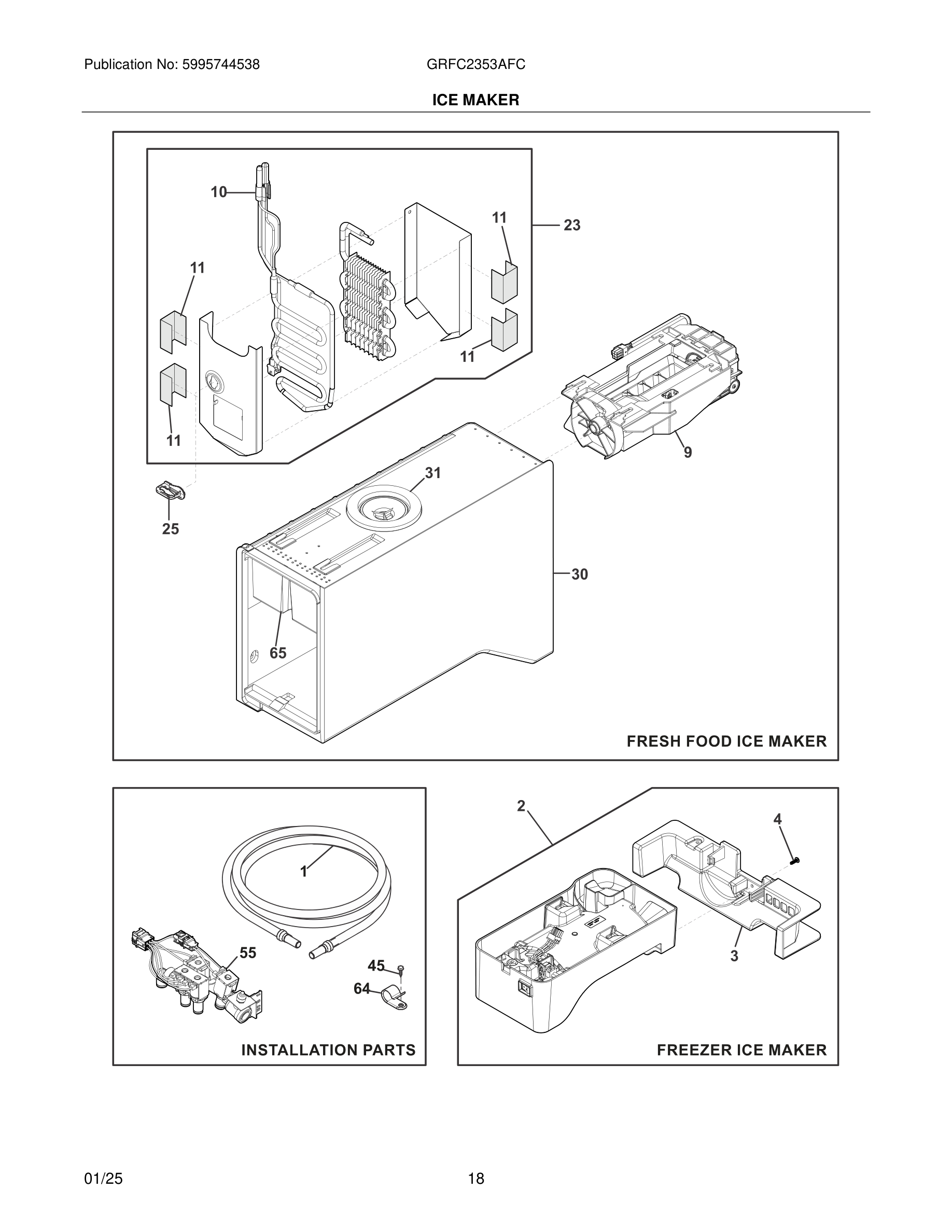

GRFC2353AFC 19 – ICE MAKER

Products

PositionProduct
*218515401 Frigidaire Refrigerator Clip
1#218976443 Frigidaire Refrigerator Tube
1#FILL TUBE ASSY CLICK CONX BLUE
1#FILL TUBE ASSY CLICK CONNEX
1#*5304535844 Frigidaire Click Connex Female
1*#5304535843 Frigidaire Tube Assembly
2#A21755301 Frigidaire Refrigerator Ice Maker Assembly
35304531313 Frigidaire Bracket Assembly
45304453707 Frigidaire Oven Screw
9#243297608 Frigidaire Refrigerator Ice Maker
105304519629 Frigidaire Refrigerator Clip
115304485759 Frigidaire Refrigerator Tape
23*#5304530732 Frigidaire Refrigerator Wiring Harness
23*#5303918645 Frigidaire Refrigerator Thermistor Kit
23#5304530680 Frigidaire Assembly Evaporator
255304508037 Frigidaire Refrigerator Connector
305304531300 Frigidaire Assembly Housing
31241512813 Frigidaire Seal Doughnut
455303307980 Frigidaire Oven Screw
55*240363602 Frigidaire Refrigerator Shoulder Screw
55#VALVE,WATER,QUAD SOLENOID
55*218709101 Frigidaire Refrigerator Handle Mounting Screw
64240396801 Frigidaire Refrigerator Tube Clamp
65COVER, WIRING
65*241953902 Frigidaire Refrigerator Screw
