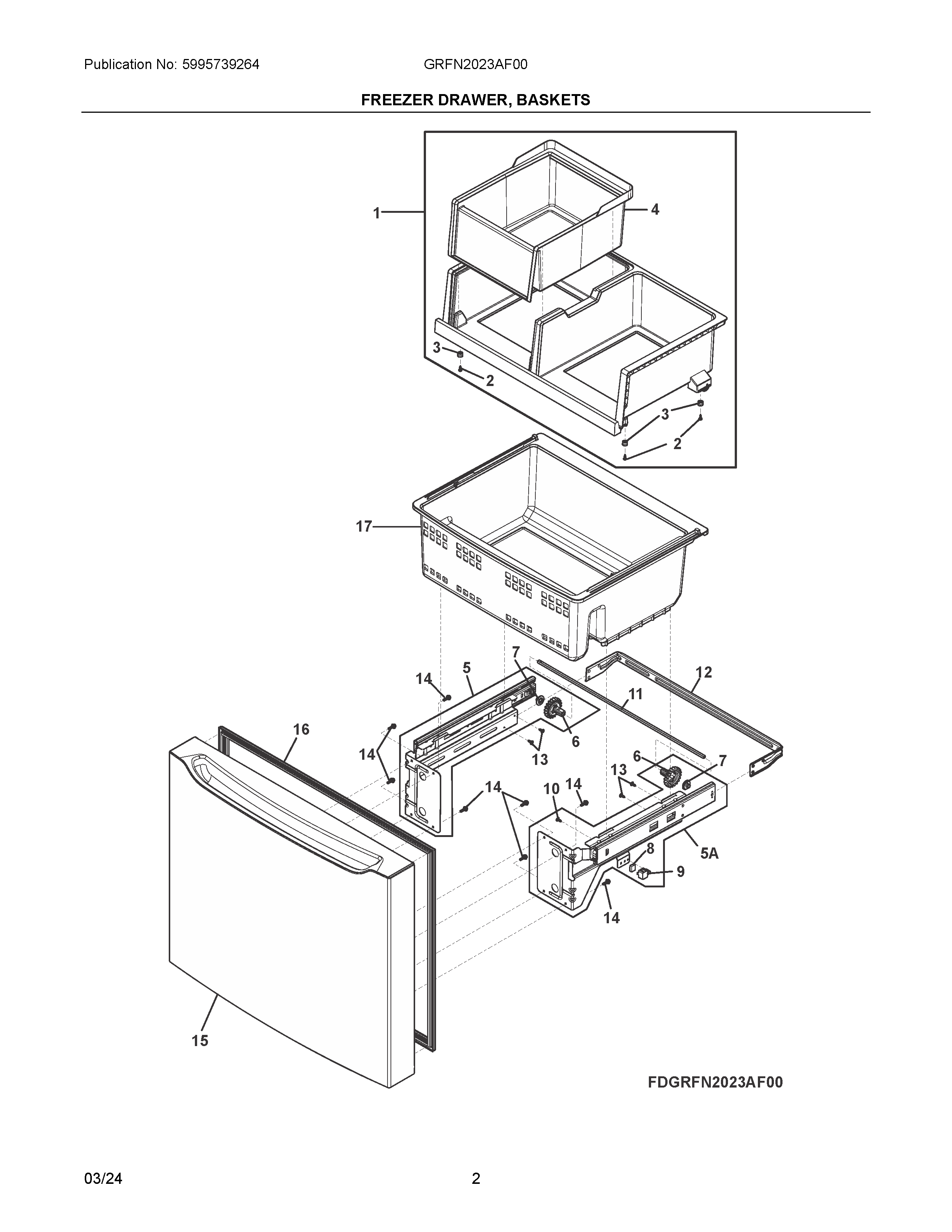

GRFN2023AF00 02 – FREEZER DRAWER, BASKETS

GRFN2023AF00 02 – FREEZER DRAWER, BASKETS

Written by

in

GRFN2023AF00 02 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NIASCREW, PHIL PN HD, M4 X 8
15304536732 Frigidaire Drawer Assembly
2811949503 Frigidaire Screw
3Cushion,rubber ,freezer drw
45304536733 Frigidaire Ice Container
5A5304536711 Frigidaire Slider Assembly
55304536710 Frigidaire Slider Assembly
6140025649033 Frigidaire Gear
75304519043 Frigidaire Refrigerator Bearing
85304519044 Frigidaire Magnet
9SUPPORT
105304519084 Frigidaire Screw
115304536712 Frigidaire Shaft
125304536713 Frigidaire Bracket
135304519053 Frigidaire Refrigerator Screw
14811949401 Frigidaire Refrigerator Screw
155304536920 Frigidaire Door Assembly
165304536714 Frigidaire Gasket
175304536731 Frigidaire Basket Assembly
