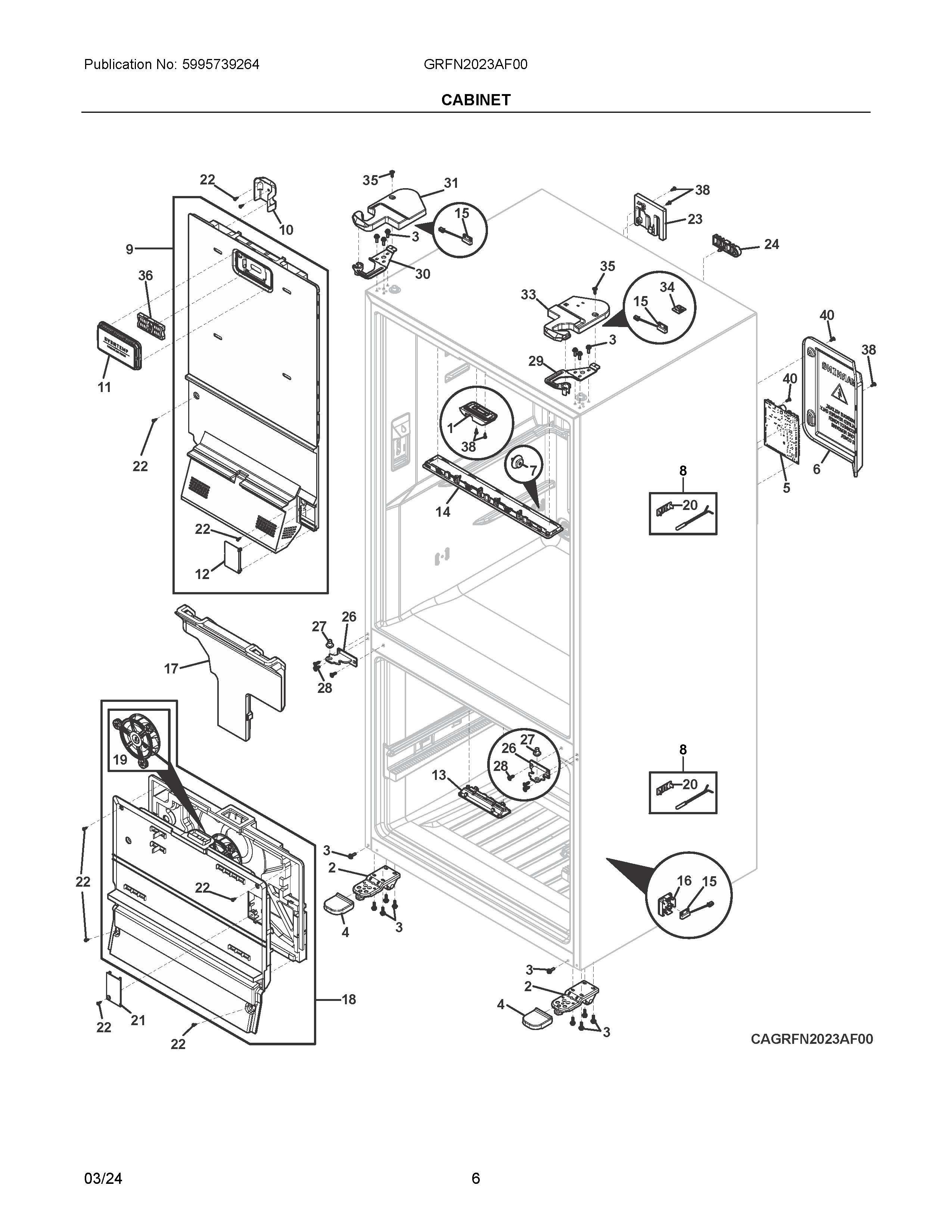

GRFN2023AF00 04 – CABINET

GRFN2023AF00 04 – CABINET

Written by

in

GRFN2023AF00 04 – CABINET

Products

PositionProduct
NIA5304536708 Frigidaire Insulator
NIAScrew,PF AB PFZ PF ,3.5×1.27×19
1GUIDE ASSEMBLY, FLIP MULLION, BASE
25304536678 Frigidaire Foot Assembly
3811949401 Frigidaire Refrigerator Screw
4140206803029 Frigidaire Cover
5973925060713006 Frigidaire Main Board
6140194404012 Frigidaire Cover
7241695906 Frigidaire Screw
85303918905 Frigidaire Sensor Kit
95304536925 Frigidaire Tower
105304536680 Frigidaire Bracket
115304536926 Frigidaire Cover
125304536927 Frigidaire Cover
13140188105039 Frigidaire LED LIGHT
145304536685 Frigidaire Led Light
155304529184 Frigidaire Switch
165304519100 Frigidaire Refrigerator Cover
175304536928 Frigidaire Duct Assembly
185304536929 Frigidaire Cover Assembly
195304536692 Frigidaire Fan Assembly
20Cover,temp sensor
215304536693 Frigidaire Cover Assembly
225304536681 Frigidaire Screw
235304536699 Frigidaire Cover Assembly
245304536700 Frigidaire Clamp
26Hinge Assembly,center
275304529178 Frigidaire Pin
285304536716 Frigidaire Screw
295304529182 Frigidaire Hinge
305304529181 Frigidaire Hinge
31140018267090 Frigidaire COVER
33COVER, TOP HINGE, RH
345304524003 Frigidaire Refrigerator PC Board
355304519089 Frigidaire Refrigerator Screw
36AIR FILTER
38811949503 Frigidaire Screw
405304523032 Frigidaire Refrigerator Screw
