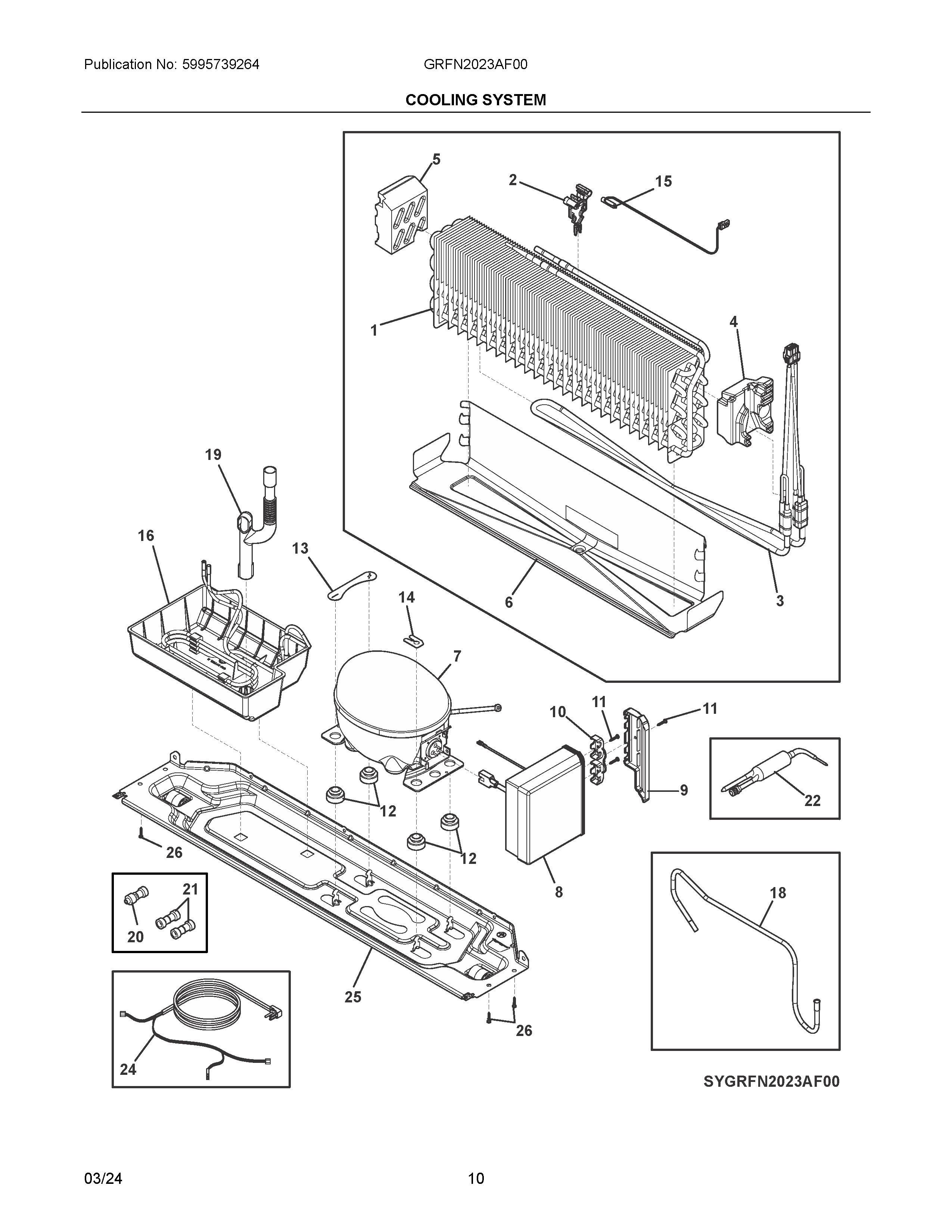

GRFN2023AF00 06 – COOLING SYSTEM

GRFN2023AF00 06 – COOLING SYSTEM

Written by

in

GRFN2023AF00 06 – COOLING SYSTEM

Products

PositionProduct
NI5304523032 Frigidaire Refrigerator Screw
NI811949503 Frigidaire Screw
15304536686 Frigidaire Evaporator
25304536687 Frigidaire Clip
35304536688 Frigidaire Heater
45304536689 Frigidaire Support
55304536690 Frigidaire Support
65304536691 Frigidaire Trough
75304536694 Frigidaire Compressor
85304536695 Frigidaire Pc Board
9Cover,flex drive ,side ,compressor
10Clamp,flex drive ,cable
11SCREW
12811978901 Frigidaire Refrigerator Grommet
13Clamp,compressor ,2 hole
14CLAMP, COMPRESSOR, SINGLE HOLE
155303918851 Frigidaire Refrigerator Thermostat Kit
165304536696 Frigidaire Drain Pan
185304536697 Frigidaire Tube
195304536698 Frigidaire Tube
20LOCK RING, DRIER
21L13000584 Frigidaire Lokring
22A19676501 Frigidaire Refrigerator Drier Filter
245304536756 Frigidaire Cord
255304536679 Frigidaire Base Assembly
26808199001 Frigidaire Screw
