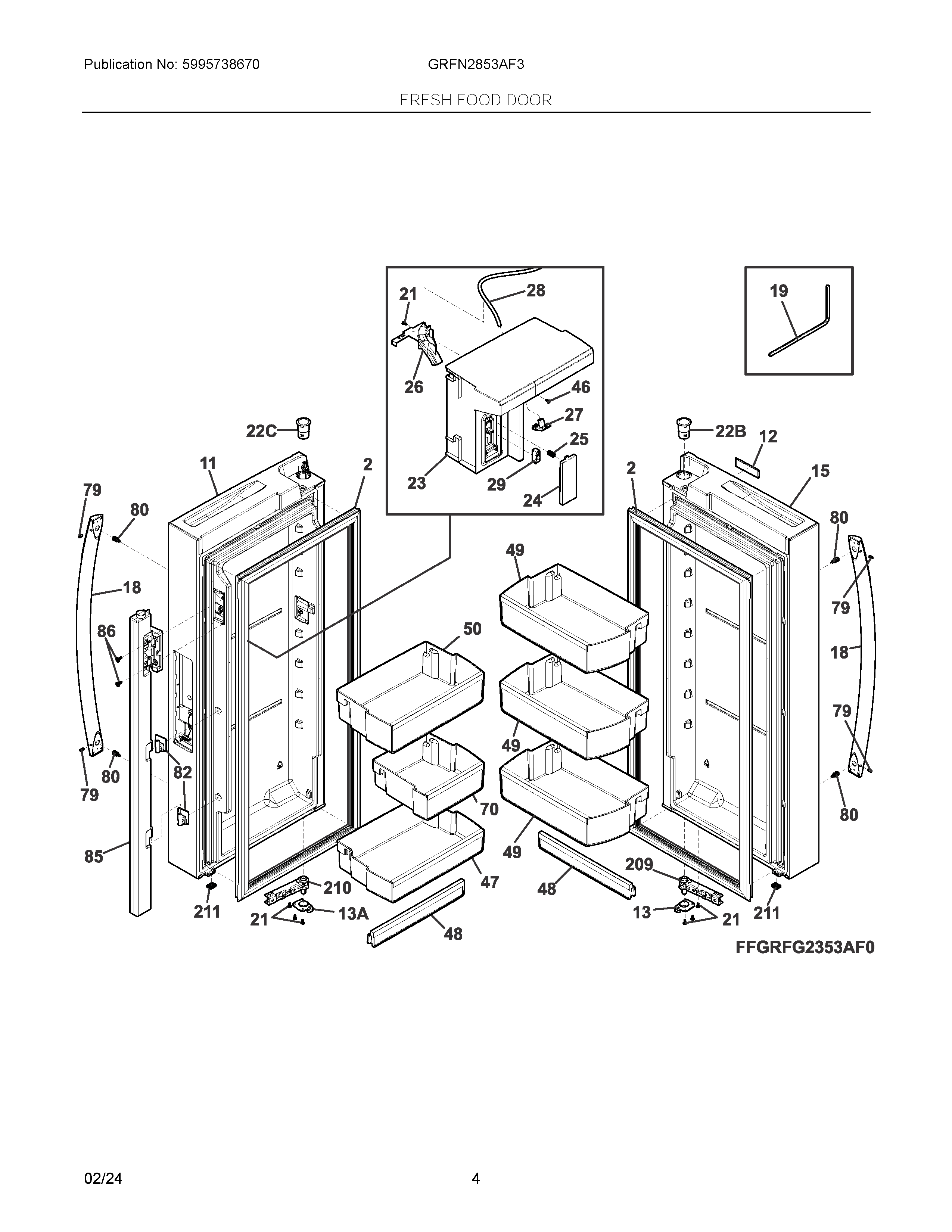

GRFN2853AF3 03 – FRESH FOOD DOOR

GRFN2853AF3 03 – FRESH FOOD DOOR

Written by

in

GRFN2853AF3 03 – FRESH FOOD DOOR

Products

PositionProduct
NIAHARNESS
NIB5304531012 Frigidaire Harness
NIA5304508776 Frigidaire Washer Lock
NI241806601 Frigidaire Refrigerator Water Connector
2GASKET-DR
115304530764 Frigidaire Refrigerator Door Assembly
125304512150 Frigidaire Refrigerator Nameplate
135304508039 Frigidaire Refrigerator Door Stop
13A5304508038 Frigidaire Refrigerator Door Stop
155304530763 Frigidaire Refrigerator Door Assembly
185304527111 Frigidaire Refrigerator Handle
195304508270 Frigidaire Wrench
21241953902 Frigidaire Refrigerator Screw
22B241760403 Frigidaire Refrigerator Bearing
22C241760401 Frigidaire Refrigerator Bearing
235304530964 Frigidaire Refrigerator Housing
245304530870 Frigidaire Button
255304519199 Frigidaire Refrigerator Spring
265304531239 Frigidaire Refrigerator Retainer
275304530965 Frigidaire Refrigerator Nozzle
28218976449 Frigidaire Water Tube
295304523072 Frigidaire Refrigerator Switch
46240383413 Frigidaire Screw Assembly
47Door Bin, standard, LH door
48DOOR LOWER BIN (ST
495304530947 Frigidaire Refrigerator Door Bin
505304530950 Frigidaire Door Bin
705304530961 Frigidaire Door Bin
79218755405 Frigidaire Refrigerator Screw Set
80218755504 Frigidaire Refrigerator Shoulder Screw
82241779401 Frigidaire Refrigerator Flipper Hinge Mullion
855304530853 Frigidaire Refrigerator Assembly Mullion
86242015001 Frigidaire Refrigerator Screw
2095304526201 Frigidaire Refrigerator Right Hand Door Closer Without
2105304526202 Frigidaire Refrigerator Left Hand Door Closer
2115304508077 Frigidaire Refrigerator Bumper
