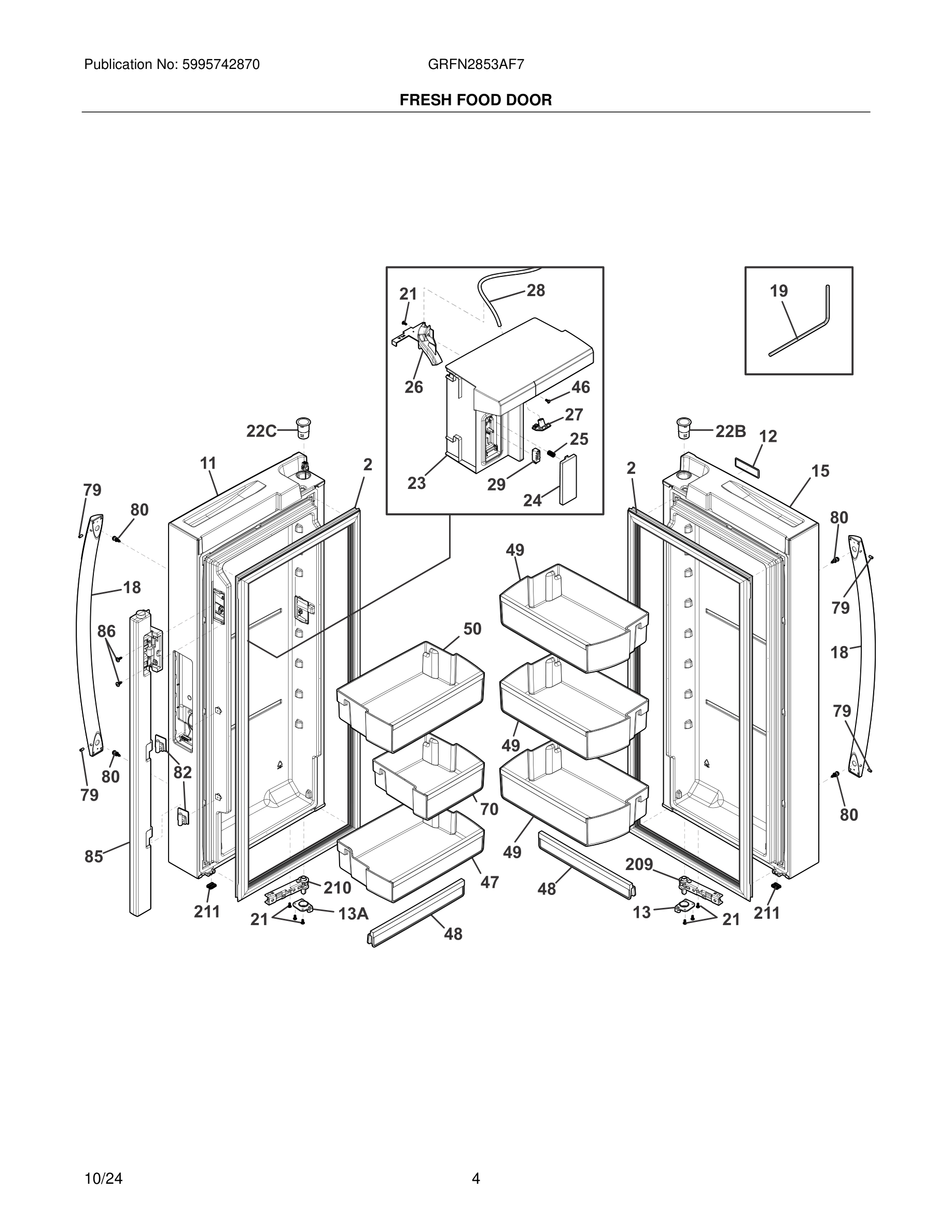

GRFN2853AF7 05 – FRESH FOOD DOOR

GRFN2853AF7 05 – FRESH FOOD DOOR

Written by

in

GRFN2853AF7 05 – FRESH FOOD DOOR

Products

PositionProduct
*241806601 Frigidaire Refrigerator Water Connector
2#GASKET-DR
11*#HARNESS
11*#5304531012 Frigidaire Harness
11#DOOR-COMPLETE
125304512150 Frigidaire Refrigerator Nameplate
13A5304508038 Frigidaire Refrigerator Door Stop
135304508039 Frigidaire Refrigerator Door Stop
15DOOR FOAMED FF RH A
185304527111 Frigidaire Refrigerator Handle
195304508270 Frigidaire Wrench
21241953902 Frigidaire Refrigerator Screw
22C241760401 Frigidaire Refrigerator Bearing
22B241760403 Frigidaire Refrigerator Bearing
235304530964 Frigidaire Refrigerator Housing
245304530870 Frigidaire Button
255304519199 Frigidaire Refrigerator Spring
265304531239 Frigidaire Refrigerator Retainer
275304530965 Frigidaire Refrigerator Nozzle
28218976449 Frigidaire Water Tube
29#5304523072 Frigidaire Refrigerator Switch
46240383413 Frigidaire Screw Assembly
47DOOR STANDARD BIN – LH IW, 47
48DOOR LOWER BIN (ST
495304536259 Frigidaire Standard Door Bin
50SHELF BIN FULL DOOR LH
70DOOR Non-Disp DAIRY BIN
79218755405 Frigidaire Refrigerator Screw Set
80218755504 Frigidaire Refrigerator Shoulder Screw
82241779401 Frigidaire Refrigerator Flipper Hinge Mullion
85#5304530853 Frigidaire Refrigerator Assembly Mullion
86*5304508776 Frigidaire Washer Lock
86242015001 Frigidaire Refrigerator Screw
2095304526201 Frigidaire Refrigerator Right Hand Door Closer Without
2105304526202 Frigidaire Refrigerator Left Hand Door Closer
2115304508077 Frigidaire Refrigerator Bumper
