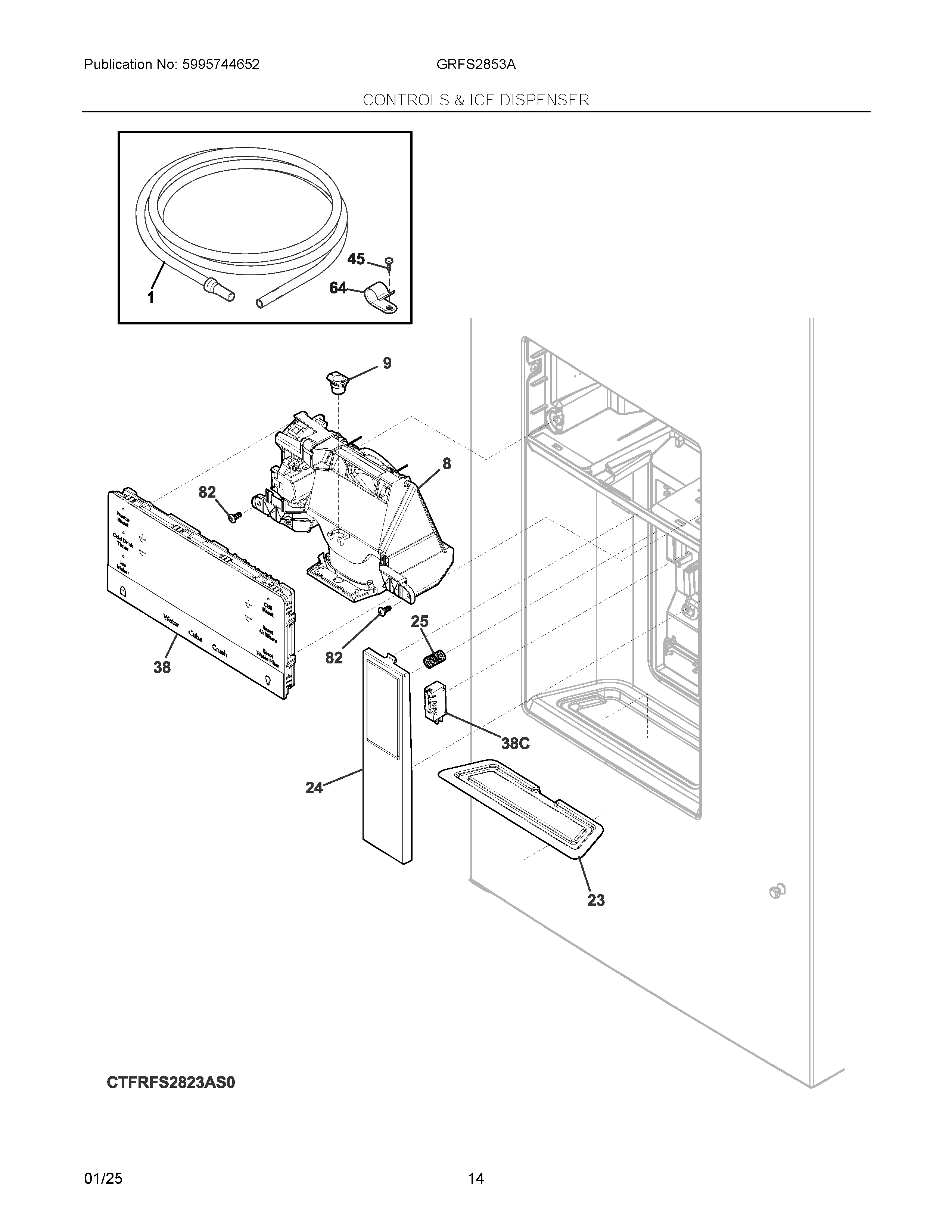

GRFS2853AD0 07 – CONTROLS & ICE DISPENSER

Products

PositionProduct
NI241510904 Frigidaire Refrigerator Dispenser Harness
NIA241806601 Frigidaire Refrigerator Water Connector
NIB242200102 Frigidaire Refrigerator Clip
NI5304530940 Frigidaire Refrigerator Harness
1218976448 Frigidaire Water Line Hose
85304537367 Frigidaire I&W Module Assemblyy
95304527100 Frigidaire Refrigerator Guide
235304527043 Frigidaire Tray
245304530690 Frigidaire Actuator
255304519199 Frigidaire Refrigerator Spring
385304530930 Frigidaire Refrigerator Control Assembly
38C5304523072 Frigidaire Refrigerator Switch
455303307980 Frigidaire Oven Screw
64240396801 Frigidaire Refrigerator Tube Clamp
82241953902 Frigidaire Refrigerator Screw
