GRHS13XAHBH1 ROOM AIR CONDITIONER

Products

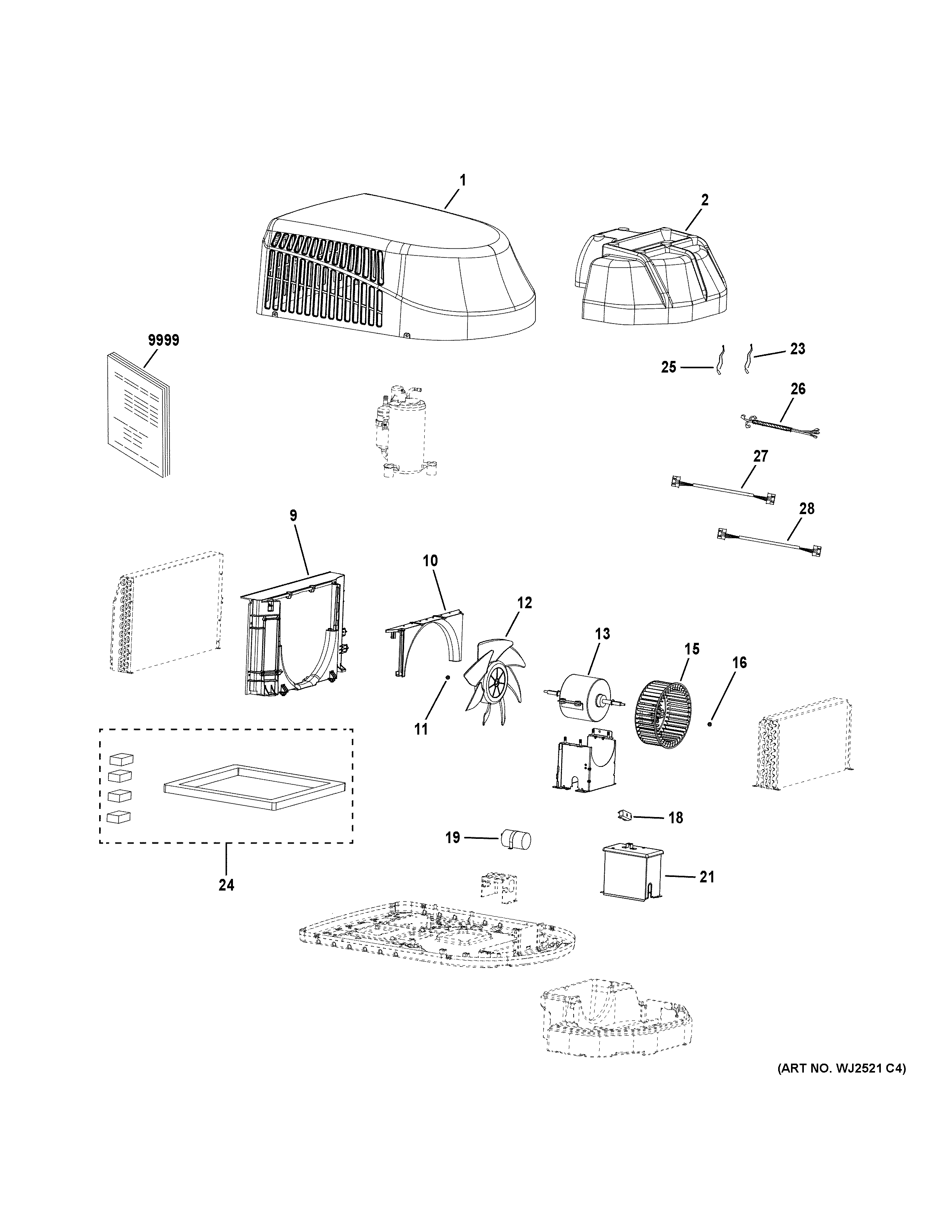

Position	Product
1	OUTDOOR BLACK SHROUD COVER
2	TOP BLOWER COVER
9	OUTDOOR FAN SHROUD
10	REAR BAFFLE COVER
11	WP01X33257 GE M6 Flan Nut
12	OUTDOOR FAN BLADE
13	FAN MOTOR
15	INDOOR BLOWER
16	WP01X33258 GE Indoor Fan Nut
18	WJ26X23823 GE Terminal Block
19	WJ20X21774 GE Air Conditioner Capacitor
21	CONTROL BOX ASSY
23	HEATPUMP OUTDOOR SENSORS
24	WP60X33255 GE Gasket Roof & Foam Pad Assembly 4 Pieces
25	INDOOR COIL SENSOR
26	COMPRESSOR HARNESS
27	HEAT PUMP 4 PIN HARNESS
28	HARNESS
9999	PRINTED AND ONLINEOWNERS AND INSTALL
