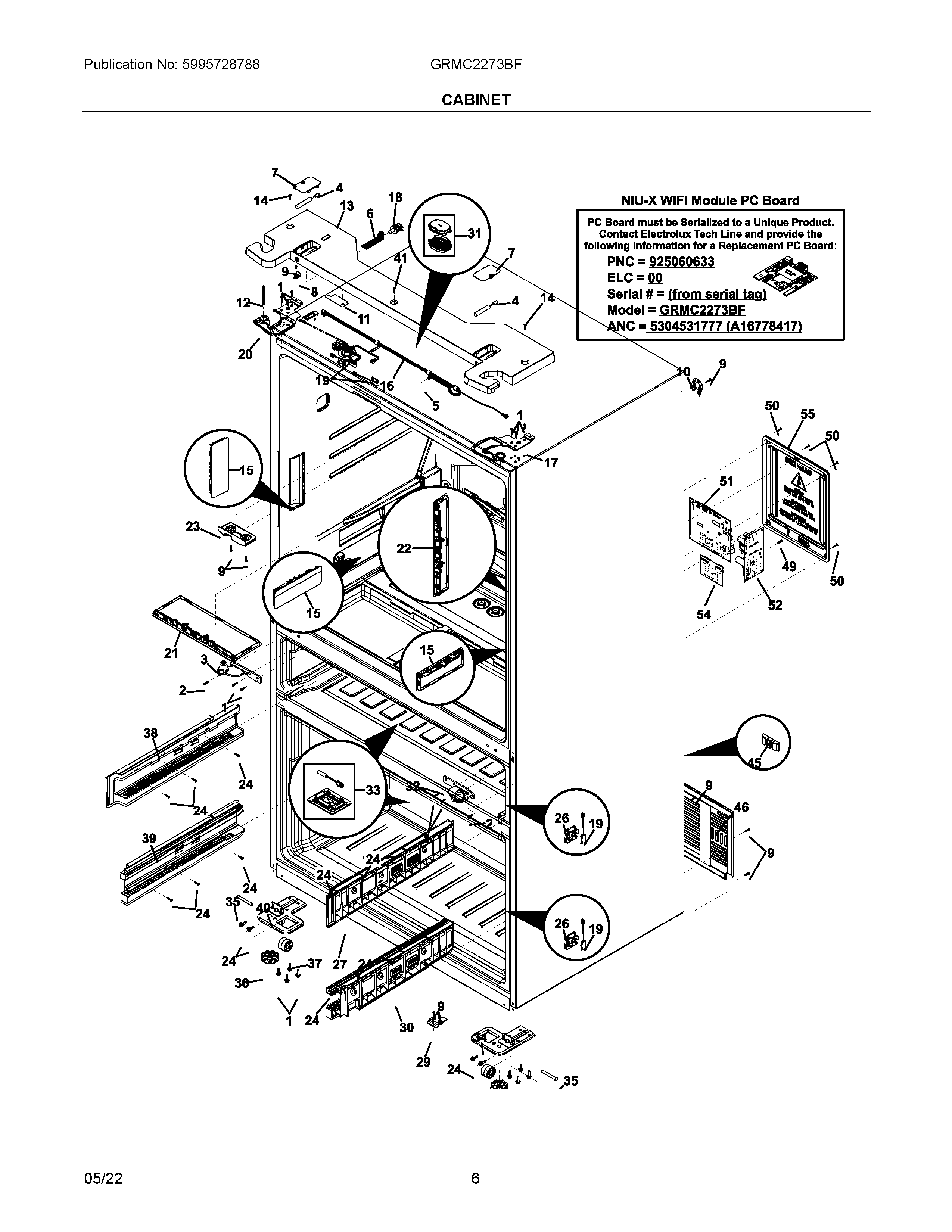

GRMC2273BF 04 – CABINET

GRMC2273BF 04 – CABINET

Written by

in

GRMC2273BF 04 – CABINET

Products

Position	Product
NI	240396801 Frigidaire Refrigerator Tube Clamp
NI	811950601 Frigidaire Refrigerator Seal
NI	5304519116 Frigidaire Refrigerator Harness
NI	Screw, hilo phil pn, .5", white
NI	SCREW, SELF TAPPING, 4.2 X 13
1	811949401 Frigidaire Refrigerator Screw
2	5304523029 Frigidaire Screw Assembly
3	5304519085 Frigidaire Refrigerator Hinge
4	5304532659 Frigidaire Damper
6	5304529582 Frigidaire Cover Assembly
7	5304529583 Frigidaire Cover
8	CLAMP
9	811949503 Frigidaire Screw
10	5304519086 Frigidaire Refrigerator Cover
11	SHIELD, EYEBROW
12	5304519067 Frigidaire Refrigerator Spring
13	5304536151 Frigidaire Cover
14	5304519089 Frigidaire Refrigerator Screw
15	5304524656 Frigidaire Refrigerator Assembly-Light
16	5304529579 Frigidaire Harness
17	5304536152 Frigidaire Hinge
18	5304519093 Frigidaire Refrigerator Switch
19	5304532559 Frigidaire Refrigerator Switch
20	5304536153 Frigidaire Hinge
21	LAMP
22	5304526810 Frigidaire Light Assembly
23	5304520058 Frigidaire Refrigerator Guide Assembly
24	SCREW
26	5304519100 Frigidaire Refrigerator Cover
27	SUPPORT, DRAWER SLIDER, RH MIDDLE
29	Cover, divider, top
30	5304523899 Frigidaire Refrigerator Support
31	5303918849 Frigidaire Refrigerator Housing Kit
32	5304519104 Frigidaire Refrigerator Hinge
33	5303918850 Frigidaire Refrigerator Thermistor Kit
34	5304519105 Frigidaire Refrigerator Bracket
35	811998302 Frigidaire Refrigerator Shaft
36	5304519106 Frigidaire Refrigerator Foot
37	811666601 Frigidaire Refrigerator Roller
38	SUPPORT
39	5304523900 Frigidaire Refrigerator Support
40	5304519109 Frigidaire Refrigerator Bracket
41	5304526847 Frigidaire Screw Assembly
45	5304519111 Frigidaire Refrigerator Clip
46	5304519112 Frigidaire Refrigerator Cover
49	WCI 519092015
50	5304523032 Frigidaire Refrigerator Screw
51	5304531885 Frigidaire Main Control Board
52	5304526795 Frigidaire Refrigerator PC Board
54	5304519115 Frigidaire Refrigerator Power Control Board
55	5304519117 Frigidaire Cover
