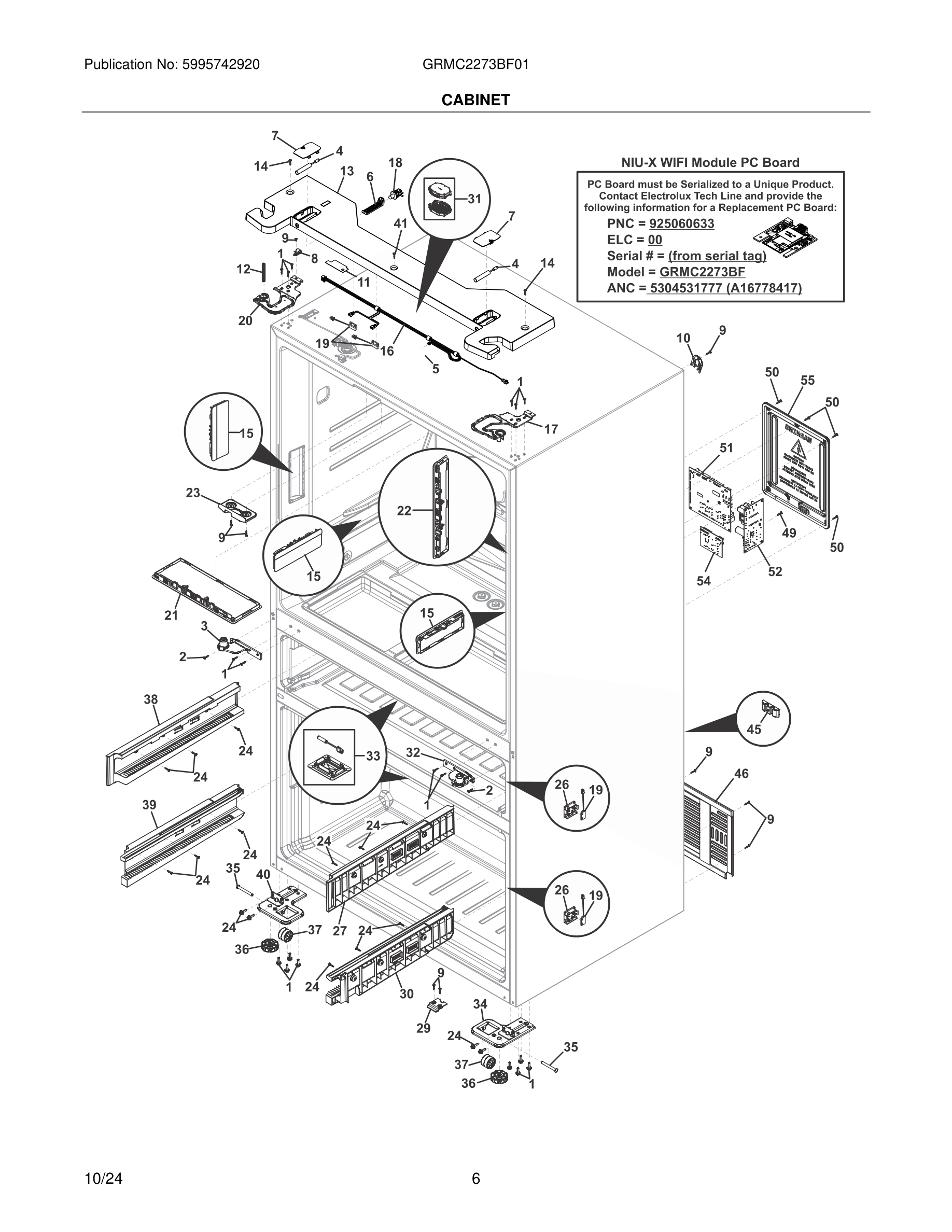

GRMC2273BF01 07 – CABINET

GRMC2273BF01 07 – CABINET

Written by

in

GRMC2273BF01 07 – CABINET

Products

PositionProduct
*240396801 Frigidaire Refrigerator Tube Clamp
*811950601 Frigidaire Refrigerator Seal
*#5304519116 Frigidaire Refrigerator Harness
*Screw, hilo phil pn, .5", white
*SCREW, SELF TAPPING, 4.2 X 13
1811949401 Frigidaire Refrigerator Screw
25304523029 Frigidaire Screw Assembly
35304519085 Frigidaire Refrigerator Hinge
45304532659 Frigidaire Damper
65304529582 Frigidaire Cover Assembly
75304529583 Frigidaire Cover
8CLAMP
9811949503 Frigidaire Screw
105304519086 Frigidaire Refrigerator Cover
11SHIELD, EYEBROW
125304519067 Frigidaire Refrigerator Spring
135304536151 Frigidaire Cover
145304519089 Frigidaire Refrigerator Screw
15#5304524656 Frigidaire Refrigerator Assembly-Light
16#5304529579 Frigidaire Harness
175304536152 Frigidaire Hinge
18#5304519093 Frigidaire Refrigerator Switch
19#5304532559 Frigidaire Refrigerator Switch
205304536153 Frigidaire Hinge
21#LAMP
22#5304526810 Frigidaire Light Assembly
235304520058 Frigidaire Refrigerator Guide Assembly
24SCREW
265304519100 Frigidaire Refrigerator Cover
27SUPPORT, DRAWER SLIDER, RH MIDDLE
29Cover, divider, top
305304523899 Frigidaire Refrigerator Support
315303918849 Frigidaire Refrigerator Housing Kit
325304519104 Frigidaire Refrigerator Hinge
33#5303918850 Frigidaire Refrigerator Thermistor Kit
345304519105 Frigidaire Refrigerator Bracket
35811998302 Frigidaire Refrigerator Shaft
365304519106 Frigidaire Refrigerator Foot
37811666601 Frigidaire Refrigerator Roller
38SUPPORT
395304523900 Frigidaire Refrigerator Support
405304519109 Frigidaire Refrigerator Bracket
415304526847 Frigidaire Screw Assembly
455304519111 Frigidaire Refrigerator Clip
465304519112 Frigidaire Refrigerator Cover
49WCI 519092015
505304523032 Frigidaire Refrigerator Screw
51#5304535681 Frigidaire Electrical Control
52#5304526795 Frigidaire Refrigerator PC Board
54#5304519115 Frigidaire Refrigerator Power Control Board
555304519117 Frigidaire Cover
