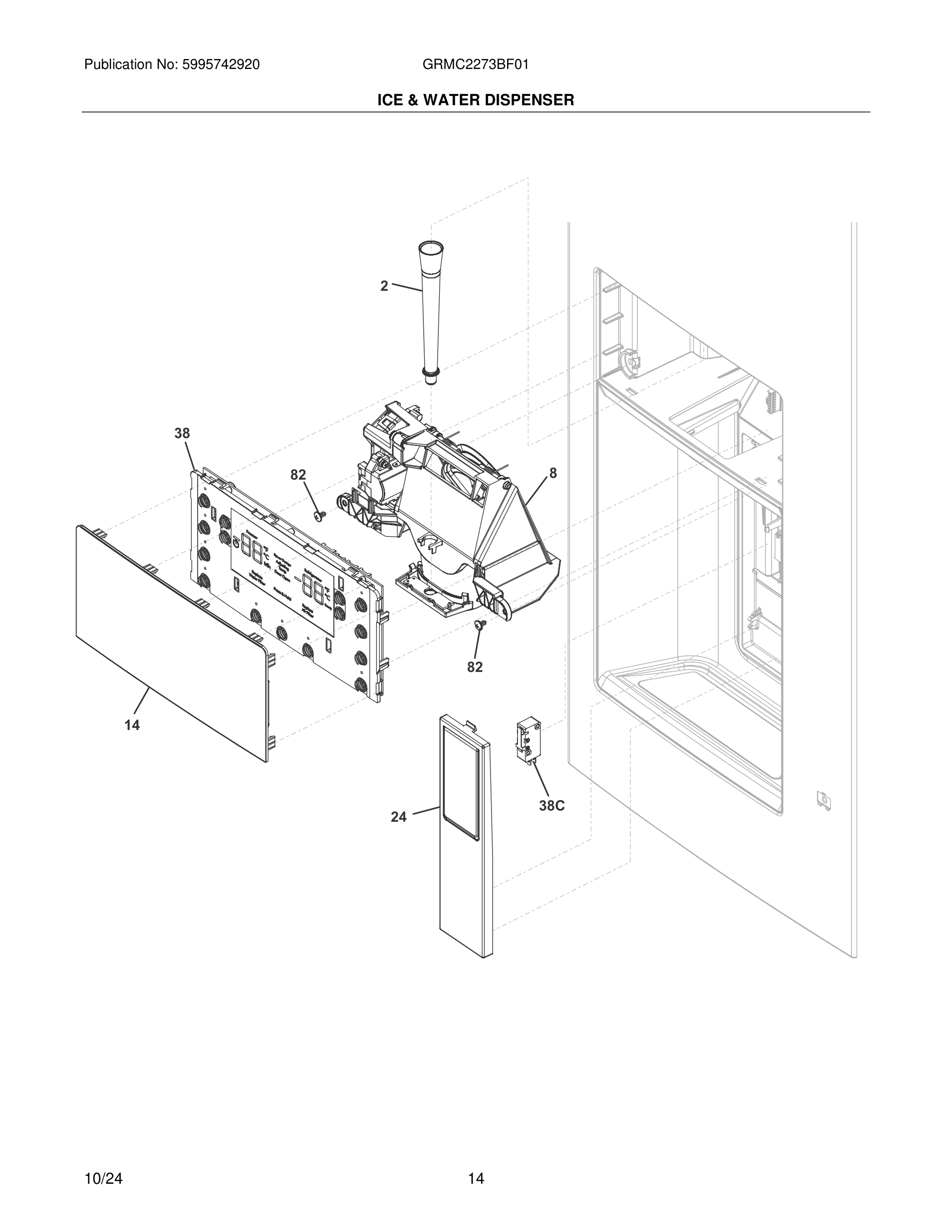

GRMC2273BF01 15 – ICE & WATER DISPENSER

GRMC2273BF01 15 – ICE & WATER DISPENSER

Written by

in

GRMC2273BF01 15 – ICE & WATER DISPENSER

Products

PositionProduct
*242200102 Frigidaire Refrigerator Clip
25304519194 Frigidaire Refrigerator Guide
8#5304529571 Frigidaire Refrigerator Dispenser Assembly
14#5304529573 Frigidaire Refrigerator Display Board
24*5304519199 Frigidaire Refrigerator Spring
245304529574 Frigidaire Assembly Paddle
38C#5304523072 Frigidaire Refrigerator Switch
38#DISPLAY BOARD,ASMY,USER INTERF
82241953902 Frigidaire Refrigerator Screw
