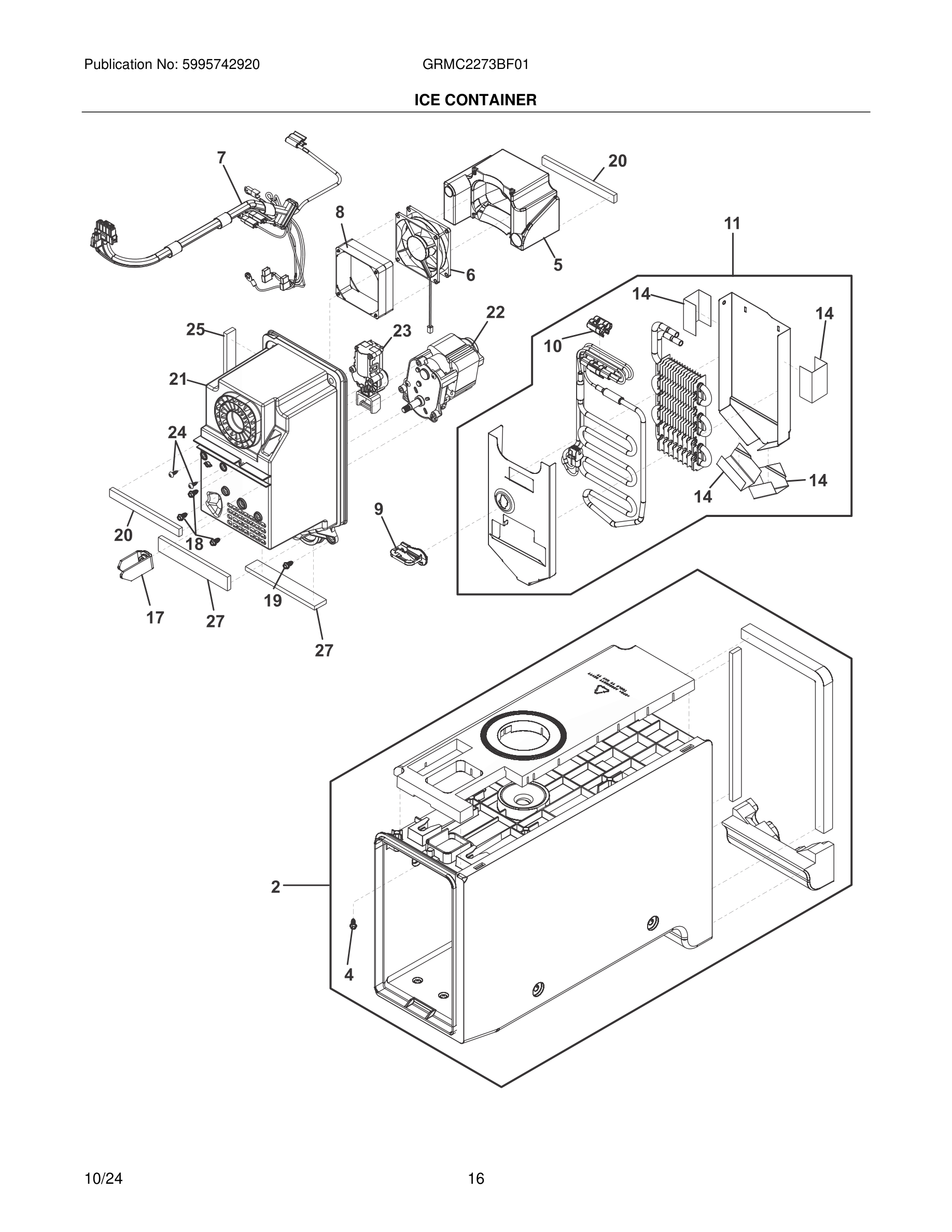

GRMC2273BF01 17 – ICE CONTAINER

GRMC2273BF01 17 – ICE CONTAINER

Written by

in

GRMC2273BF01 17 – ICE CONTAINER

Products

PositionProduct
*5303918784 Frigidaire Refrigerator Air Handler Housing
25303918901 Frigidaire Ice Maker Housing
4241953902 Frigidaire Refrigerator Screw
55304523073 Frigidaire Refrigerator Duct
6#5304524796 Frigidaire Refrigerator Motor
7#5304532656 Frigidaire Refrigerator Harness
85304508063 Frigidaire Refrigerator Grommet
95304508037 Frigidaire Refrigerator Connector
10Bracket, cantilever shlf, LH
11#5304519630 Frigidaire Refrigerator Evaporator Assembly
145304485759 Frigidaire Refrigerator Tape
17241829001 Frigidaire Refrigerator Bar Drive
18240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
19519088008 Frigidaire Refrigerator Screw
205304519209 Frigidaire Refrigerator Gasket
215304534888 Frigidaire Housing
22#5304519208 Frigidaire Refrigerator Motor
23#5304526819 Frigidaire Refrigerator Selector
24218359202 Frigidaire Refrigerator Screw
25GASKET, EVAP HOUSING, REAR
275304519211 Frigidaire Refrigerator Gasket
