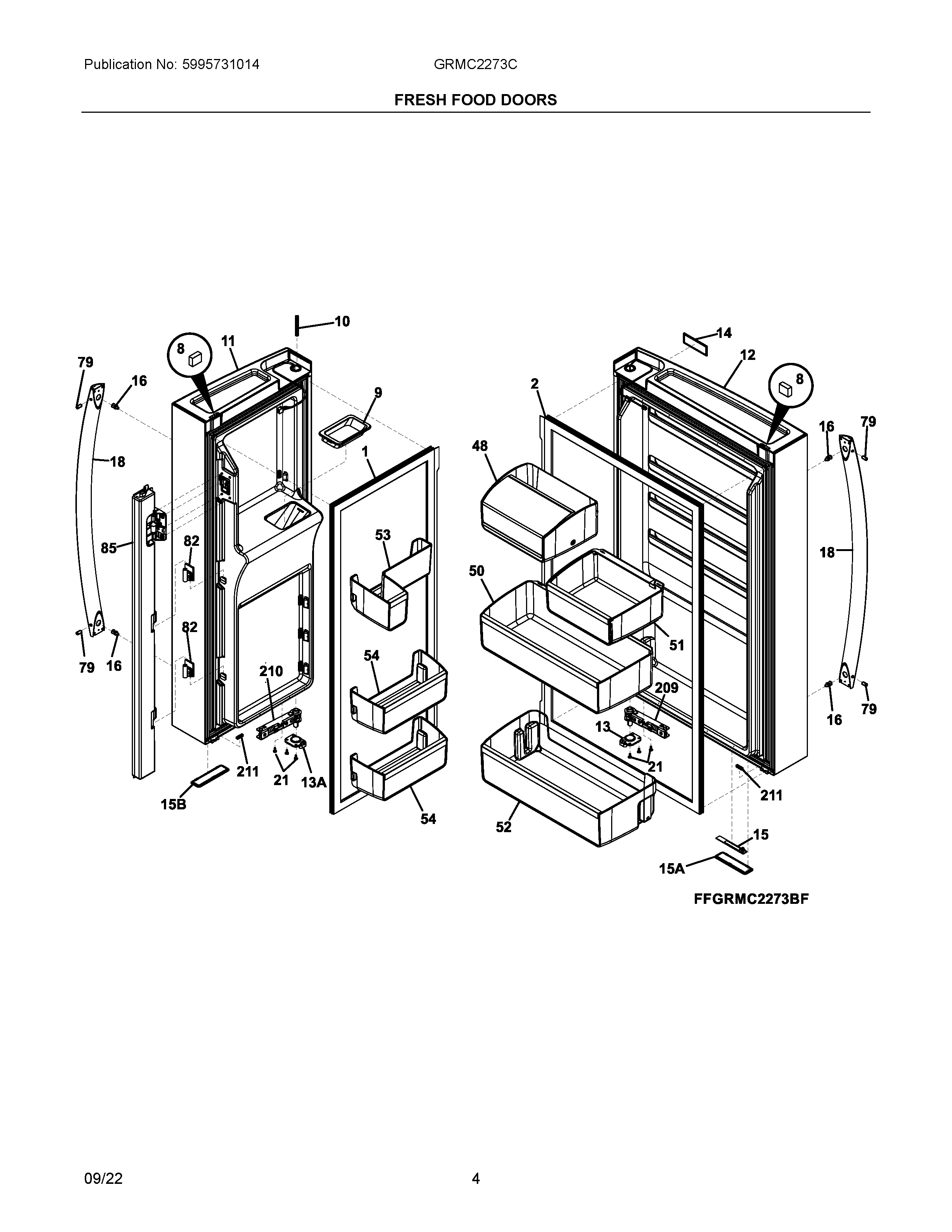

GRMC2273CD00 03 – FRESH FOOD DOORS

Products

Position	Product
NI	ALIGNMENT KIT, DOOR ADJUSTMENT
NIA	5304531674 Frigidaire Heater
NIB	Screw, hilo phil pn, .5", white
NI	242200102 Frigidaire Refrigerator Clip
NIA	5304508270 Frigidaire Wrench
1	5304529569 Frigidaire Refrigerator Gasket
2	5304529576 Frigidaire Refrigerator Gasket
8	5304519044 Frigidaire Magnet
9	5304526838 Frigidaire Frame
10	5304519067 Frigidaire Refrigerator Spring
11	5304529593 Frigidaire Refrigerator Door Assembly
12	5304529596 Frigidaire Refrigerator Door Assembly
13A	STOP, ASSEMBLY, LH DOOR
13	5304519070 Frigidaire Refrigerator Stop
14	5304510904 Frigidaire Refrigerator Nameplate
15B	5304529570 Frigidaire Refrigerator Lens
15	5304523011 Frigidaire Refrigerator Light Board
15A	5304526839 Frigidaire Lens Assembly
16	5304519063 Frigidaire Refrigerator Screw
18	Handle Kit, fresh food, black stainless, (2 handles)
21	241953902 Frigidaire Refrigerator Screw
48	5304519073 Frigidaire Bin Assembly
50	5304526860 Frigidaire Refrigerator Bin
51	BIN ASMY,FLEX,DOOR,SLIDE
52	5304519077 Frigidaire Refrigerator Bin
53	5304519078 Frigidaire Refrigerator Bin
54	5304519079 Frigidaire Refrigerator Bin
79	218755405 Frigidaire Refrigerator Screw Set
82	5304519080 Frigidaire Refrigerator Hinge
85	5304519081 Frigidaire Refrigerator Mullion Assembly
209	5304526201 Frigidaire Refrigerator Right Hand Door Closer Without
210	5304526202 Frigidaire Refrigerator Left Hand Door Closer
211	5304519083 Frigidaire Refrigerator Bumper
