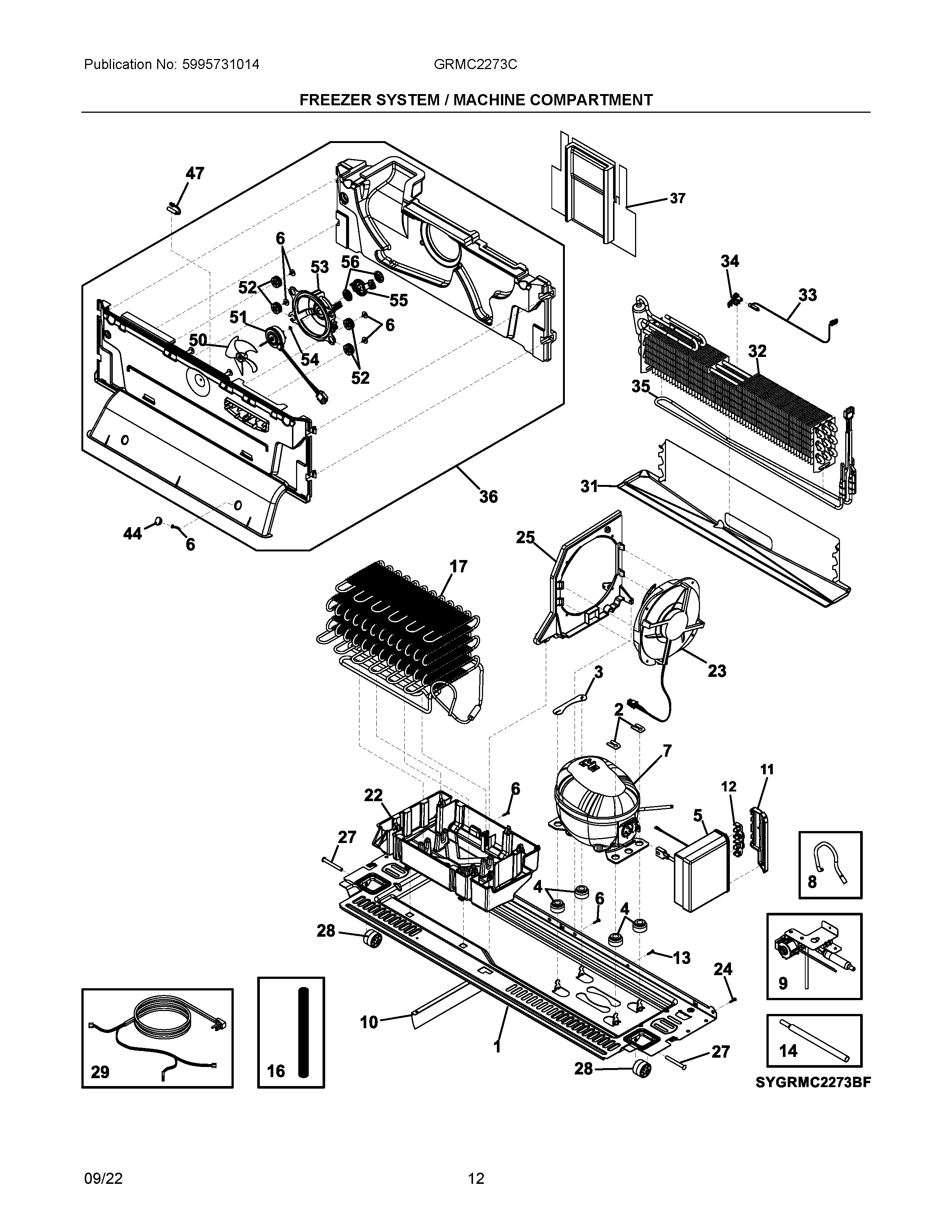

GRMC2273CD00 07 – FREEZER SYSTEM / MACHINE COMPARTMENT

GRMC2273CD00 07 – FREEZER SYSTEM / MACHINE COMPARTMENT

Written by

in

GRMC2273CD00 07 – FREEZER SYSTEM / MACHINE COMPARTMENT

Products

PositionProduct
NI811950601 Frigidaire Refrigerator Seal
NIAGROMMET, DYCO TUBE
NIAWCI 5304523068
NIAFOAM INSULATION, DYCO TUBE
NIASCREW
NIA5304523687 Frigidaire Sticker
1BASE, COMPRESSOR ASSY
2CLAMP, COMPRESSOR, SINGLE HOLE
35304524607 Frigidaire Clamp
4811978901 Frigidaire Refrigerator Grommet
55304523061 Frigidaire Refrigerator Control Assembly
6811949503 Frigidaire Screw
75304523062 Frigidaire Refrigerator Compressor
85304526794 Frigidaire Tube
95304529531 Frigidaire Refrigerator Valve
10FLAP BRACKET, COMPRESSOR BASE
11COVER, FLEX DRIVE, SIDE, COMPRESSOR
12Clamp,flex drive ,cable
135304523032 Frigidaire Refrigerator Screw
145304523065 Frigidaire Refrigerator Tubing
165304519156 Frigidaire Refrigerator Drain Tube
17CONDENSER ASSY DYNAMIC
225304529527 Frigidaire Refrigerator Pan
235304525730 Frigidaire Refrigerator Fan Assembly
24808199001 Frigidaire Screw
255304529530 Frigidaire Refrigerator Condenser Shroud
27811998302 Frigidaire Refrigerator Shaft
28811666601 Frigidaire Refrigerator Roller
295304523066 Frigidaire Refrigerator Power Cord
31DRAIN TROUGH
325304529535 Frigidaire Refrigerator Evaporator
335303918851 Frigidaire Refrigerator Thermostat Kit
34811980406 Frigidaire Clamp
355304534878 Frigidaire Heater
365304523067 Frigidaire Refrigerator Cover
37DUCT, AIR RETURN
445304524004 Frigidaire Refrigerator Cover
475303918775 Frigidaire Refrigerator Thermistor
50BLADE, EVAPORATOR FAN
51809069207 Frigidaire Refrigerator Motor
52GROMMET, FAN SHROUND, FREEZER
535304519175 Frigidaire Shroud
54WASHER, SLINGER, NYLON
555304519177 Frigidaire Refrigerator Clip
565304519178 Frigidaire Refrigerator Grommet
