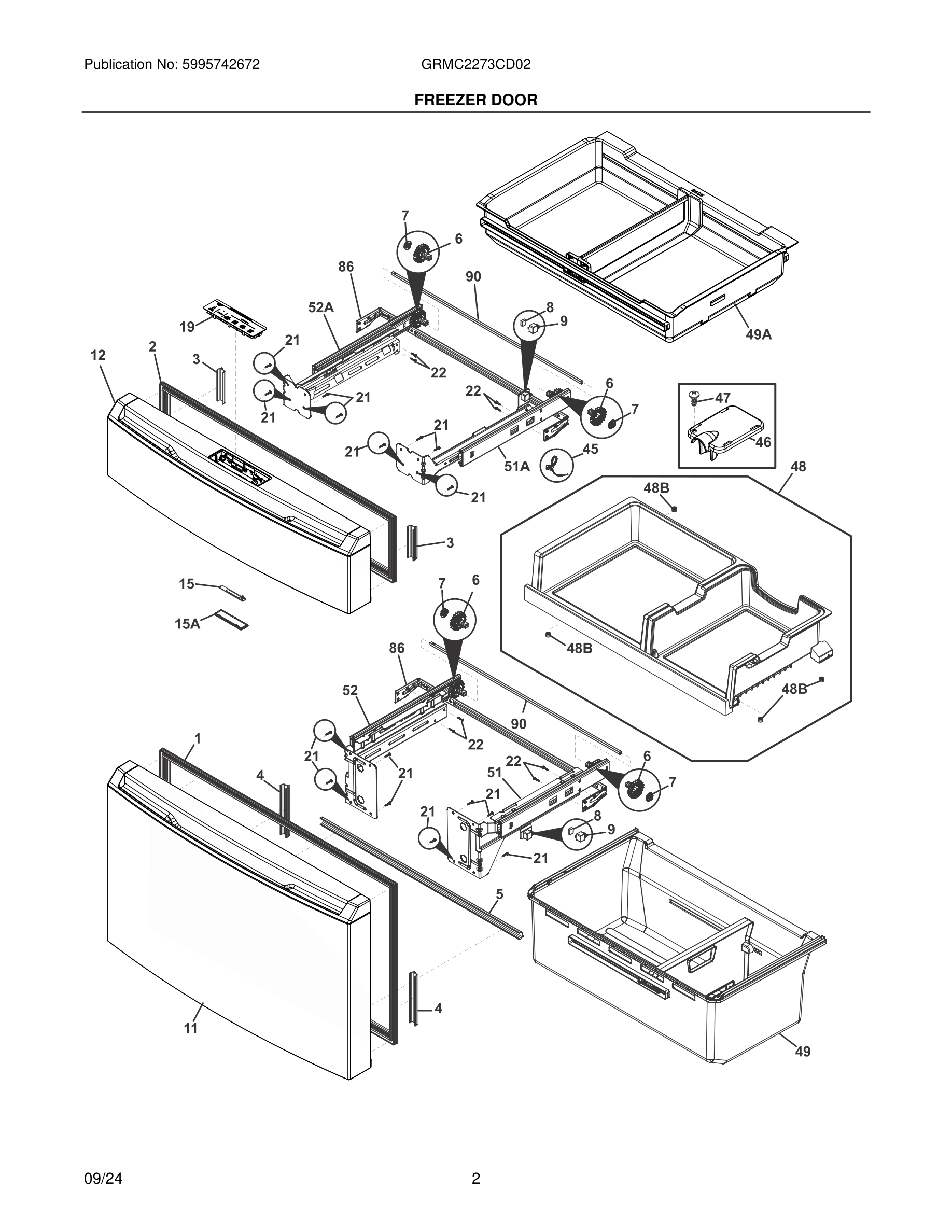

GRMC2273CD02 03 – FREEZER DOOR

GRMC2273CD02 03 – FREEZER DOOR

Written by

in

GRMC2273CD02 03 – FREEZER DOOR

Products

PositionProduct
15304519037 Frigidaire Refrigerator Gasket
25304519038 Frigidaire Refrigerator Gasket
35304519041 Frigidaire Refrigerator Gasket
65304524001 Frigidaire Refrigerator Gear
75304519043 Frigidaire Refrigerator Bearing
85304519044 Frigidaire Magnet
9*5304519084 Frigidaire Screw
9SUPPORT
11Door Assembly, outer, black stainless, freezer
12#5304529592 Frigidaire Refrigerator Assembly Door
15#5304523011 Frigidaire Refrigerator Light Board
15A5304526839 Frigidaire Lens Assembly
19#5304529567 Frigidaire Refrigerator Display Assembly
21811949401 Frigidaire Refrigerator Screw
225304519053 Frigidaire Refrigerator Screw
45539151026 Frigidaire Clip
465304529565 Frigidaire Cover
47241953902 Frigidaire Refrigerator Screw
48B*811949503 Frigidaire Screw
485304529589 Frigidaire Drawer Assembly
48BCushion,rubber ,freezer drw
49A5304529588 Frigidaire Refrigerator Basket Assembly
495304519057 Frigidaire Refrigerator Assembly-Basket
515304519059 Frigidaire Refrigerator Slider
51A5304529564 Frigidaire Slider
525304519061 Frigidaire Refrigerator Slider
52A5304529563 Frigidaire Slider
865304519064 Frigidaire Refrigerator Bracket
90*SCREW, PHIL PN HD, M4 X 8
905304524002 Frigidaire Shaft
